Wind Solar Hybrid Street Light

Short Description:

Wind solar hybrid street light is a new type of energy-saving street light. It is composed of solar panels, wind turbines, controllers, batteries, and LED light sources.


  • facebook (2)
  • youtube (1)

DOWNLOAD
RESOURCES

Product Detail

Product Tags

Wind Solar Hybrid Street Light

Product Description

Wind solar hybrid street light is a new type of energy-saving street light. It is composed of solar panels, wind turbines, controllers, batteries, and LED light sources. It uses the electric energy emitted by the solar cell array and wind turbine. It is stored in the battery bank. When the user needs electricity, the inverter converts the DC power stored in the battery bank into AC power and sends it to the user's load through the transmission line. This not only reduces the dependence on conventional electricity for urban lighting but also provides rural lighting. Lighting offers new solutions.

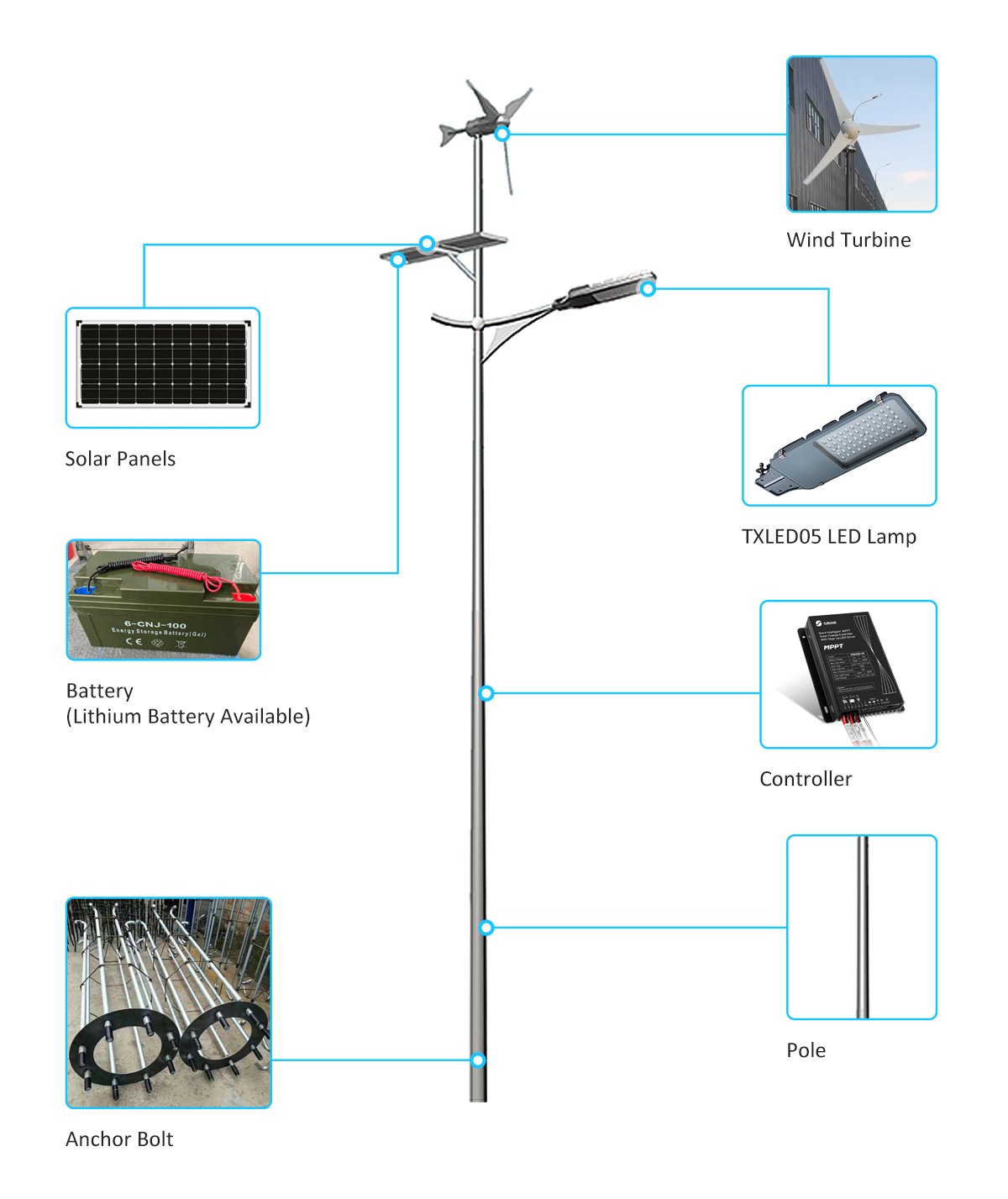

Product Components

Wind-Solar-Hybrid solar street light

Installation Video

Technical Data

No Item Parameters
1 TXLED05 LED Lamp Power:20W/30W/40W/50W/60W/80W/100W
Chip: Lumileds/Bridgelux/Cree/Epistar
Lumens: 90lm/W
Voltage: DC12V/24V
Colortemperature: 3000-6500K
2 Solar Panels Power: 40W/60W/2*40W/2*50W/2*60W/2*80W /2*100W
Nominal Voltage:18V
Efficiency of Solar Cells:18%
Material: Mono Cells/Poly Cells
3 Battery
(Lithium Battery Available)
Capacity:38AH/65AH/2*38AH/2*50AH/2*65AH/2*90AH/2*100AH
type: Lead-acid / Lithium Battery
Nominal Voltage:12V/24V
4 Battery Box Material: Plastics
IP Rating: IP67
5 Controller Rated Current:5A/10A/15A/15A
Nominal Voltage:12V/24V
6 Pole Height: 5m(A); Diameter: 90/140mm(d/D);
thickness: 3.5mm(B);Flange Plate:240*12mm(W*t)
Height: 6m(A); Diameter: 100/150mm(d/D);
thickness: 3.5mm(B);Flange Plate:260*12mm(W*t)
Height: 7m(A); Diameter: 100/160mm(d/D);
thickness: 4mm(B);Flange Plate:280*14mm(W*t)
Height: 8m(A); Diameter: 100/170mm(d/D);
thickness: 4mm(B);Flange Plate:300*14mm(W*t)
Height: 9m(A); Diameter: 100/180mm(d/D);
thickness: 4.5mm(B);Flange Plate:350*16mm(W*t)
Height: 10m(A); Diameter: 110/200mm(d/D);
thickness: 5mm(B);Flange Plate:400*18mm(W*t)
7 Anchor Bolt 4-M16;4-M18;4-M20
8 Cables 18m/21m/24.6m/28.5m/32.4m/36m
9 Wind turbine 100W Wind Turbine for 20W/30W/40W LED Lamp
Rated Voltage:12/24V
Packing Size:470*410*330mm
Security Wind Speed:35m/s
Weight:14kg
300W Wind Turbine for 50W/60W/80W/100W LED Lamp
Rated Voltage:12/24V
Security Wind Speed:35m/s
G.W:18kg

Product Design

 1. Selection of fan

The fan is the iconic product of Wind solar hybrid street light. In terms of fan design selection, the most critical thing is that the fan must run smoothly. Since the light pole of the Wind solar hybrid street light is a positionless cable tower, special care must be taken to cause the vibration of the fan during operation to loosen the fixings of the lampshade and solar bracket. Another major factor in choosing a fan is that the fan should be beautiful in appearance and light in weight to reduce the load on the tower pole.

2. Design of optimal configuration of power supply system

Ensuring the lighting time of street lights is an important indicator of street lights. Wind solar hybrid street light is an independent power supply system. From the selection of street light sources to the configuration of fan, solar battery, and energy storage system capacity, there is an issue of optimal configuration design. The optimal capacity configuration of the system needs to be designed based on the natural resource conditions of the location where street lights are installed.

3. Strength design of the light pole

The strength of the light pole should be designed based on the capacity and installation height requirements of the selected wind turbine and solar cell, combined with local natural resource conditions, and a reasonable light pole and structural form should be determined.
