TXLED-09 LED street light Power off switch

Short Description:

● Using high-brightness LED as the light source, and using imported high-brightness semiconductor chips, it has the characteristics of high thermal conductivity, small light decay, pure light color, and no ghosting.

● The light source is in close contact with the shell, and the heat is dissipated by convection with the air through the shell heat sink, which can effectively dissipate the heat and ensure the life of the light source.

Send email to us

DOWNLOAD
RESOURCES

Catalogue

Product Catalog

Specification

TXLED-09

Product Detail

Product Tags

Features

TX LED 9 is designed by our company in 2019. Because of its unique appearance design and functional characteristics, it is designated for use in street light projects in many countries in Europe and South America.Optional light sensor, IoT light control, environmental monitoring light control LED street light.

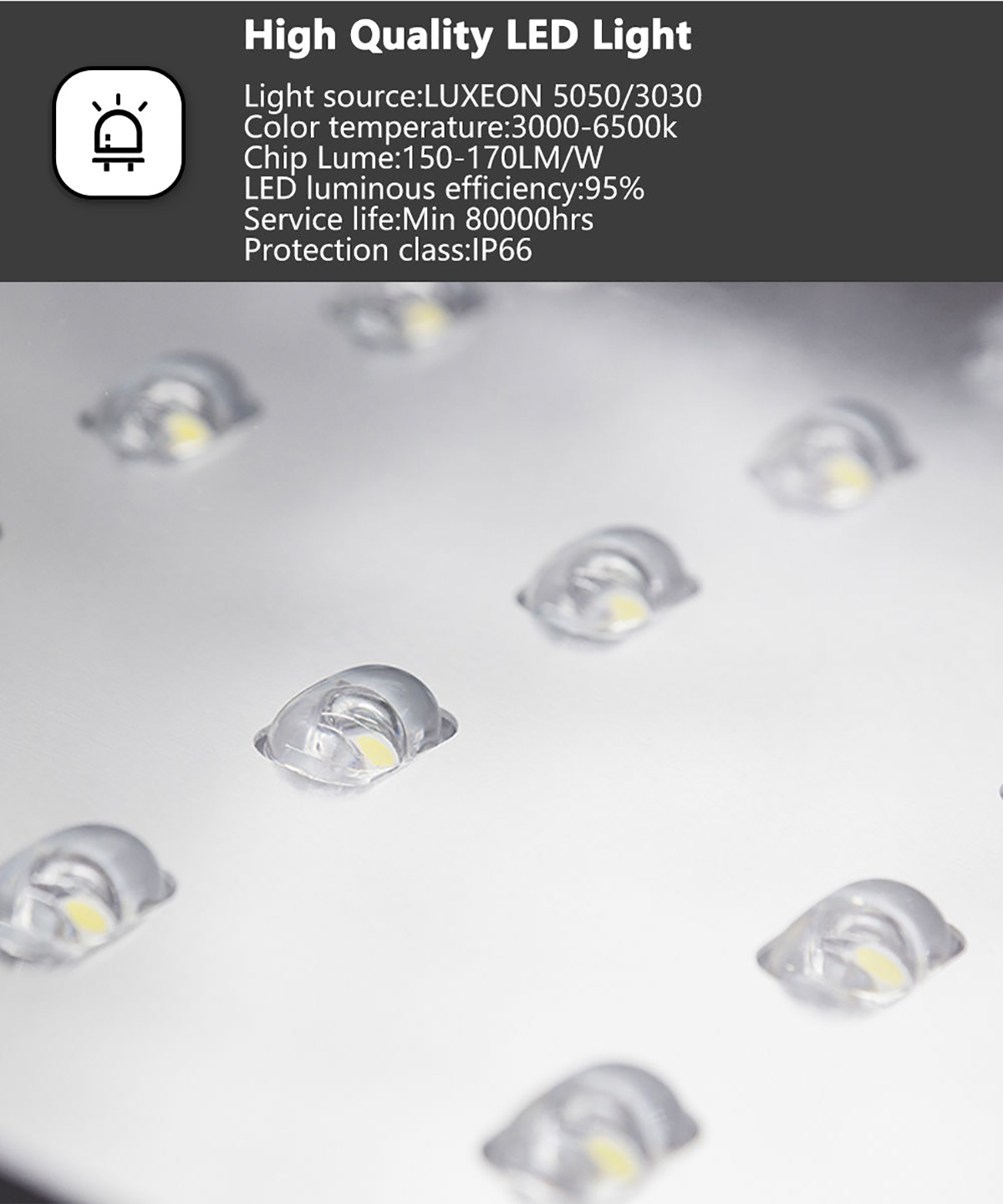

1. Using high-brightness LED as the light source, and using imported high-brightness semiconductor chips, it has the characteristics of high thermal conductivity, small light decay, pure light color, and no ghosting.

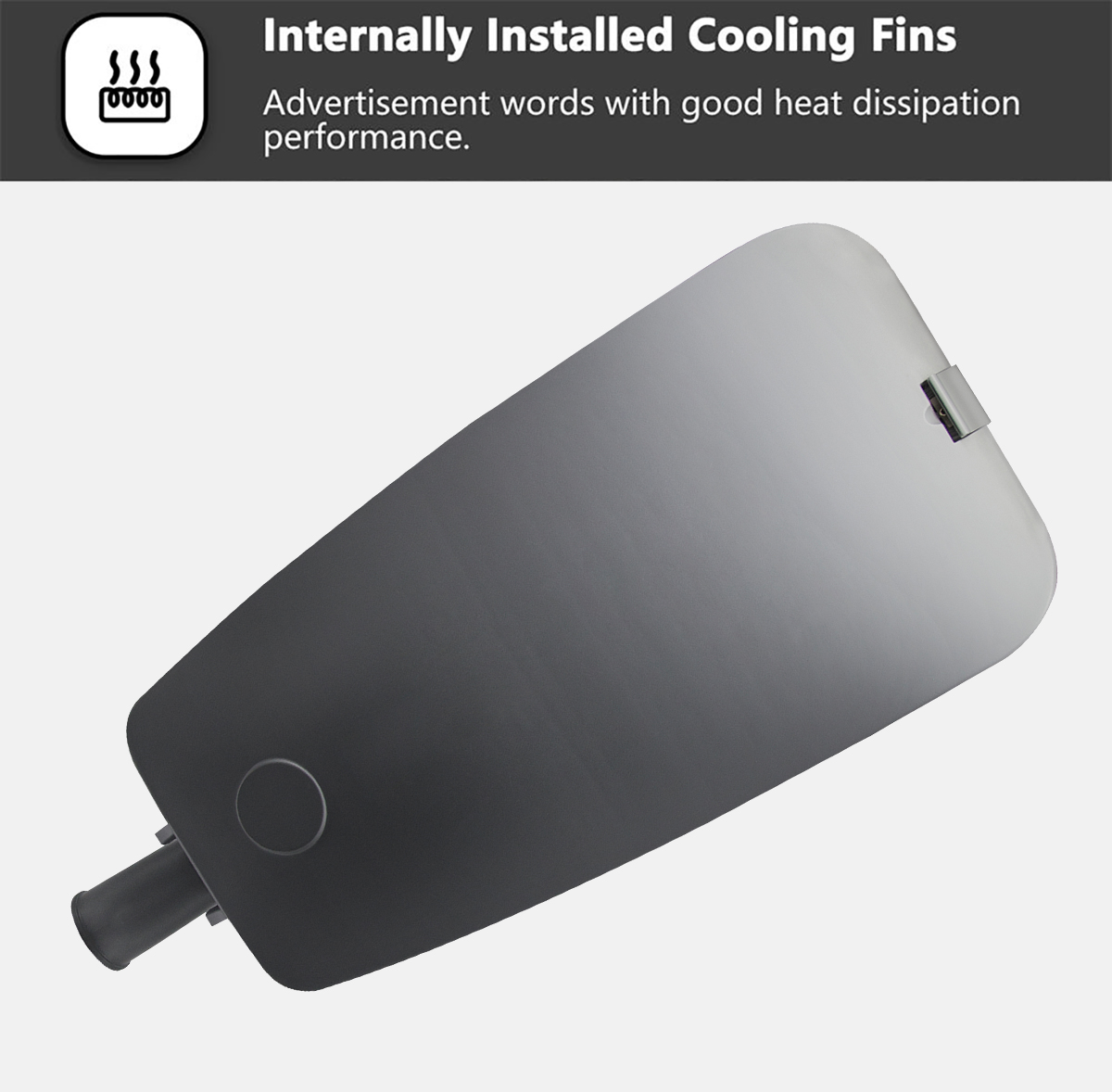

2. The light source is in close contact with the shell, and the heat is dissipated by convection with the air through the shell heat sink, which can effectively dissipate the heat and ensure the life of the light source.
3. The lamps can be used in high humidity environment.

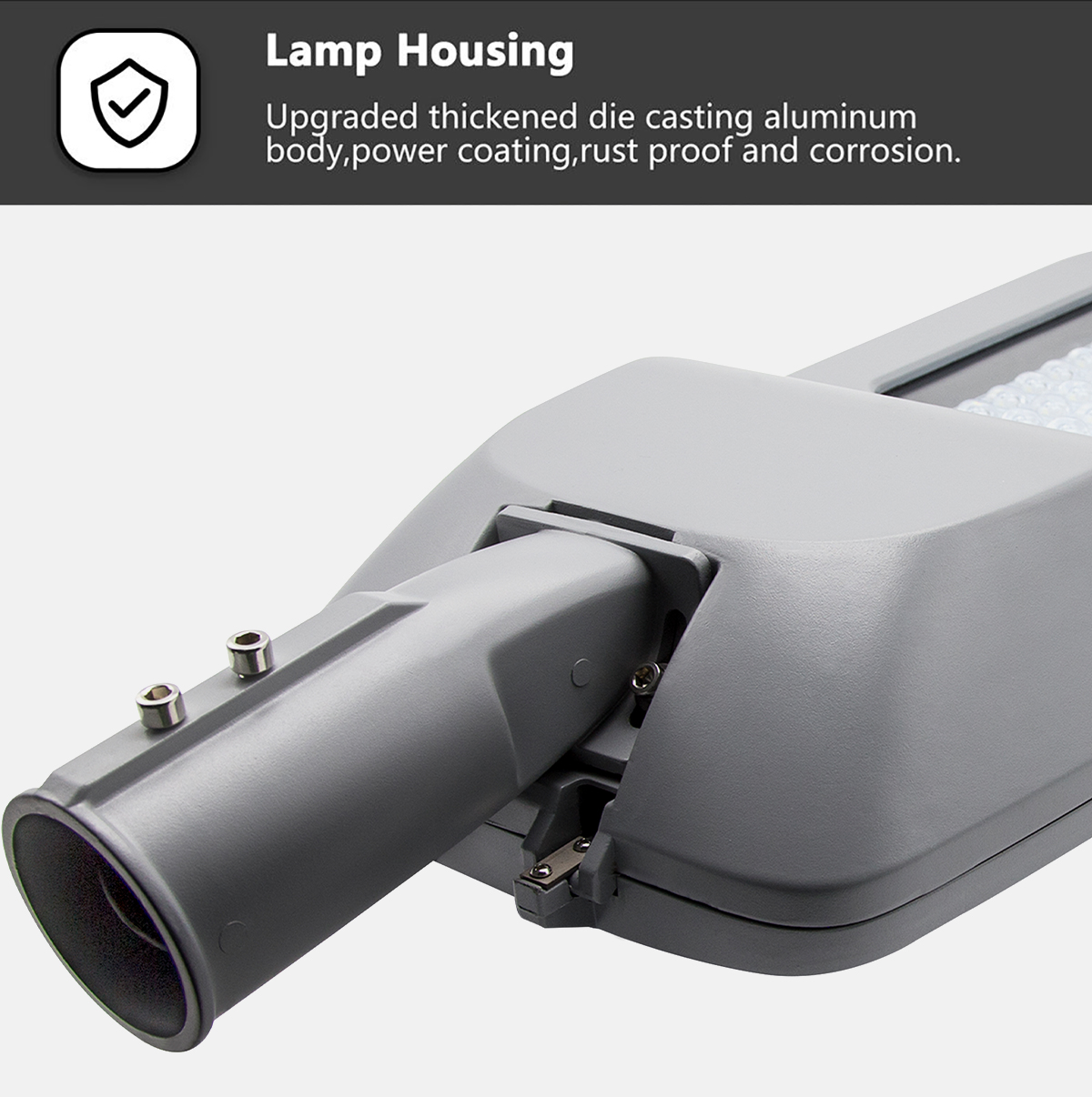

4. The lamp housing adopts the die-casting integrated molding process, the surface is sandblasted, and the overall lamp conforms to the IP65 standard.
5. The double protection of peanut lens and tempered glass is adopted, and the arc surface design controls the ground light emitted by the LED within the required range, which improves the uniformity of the lighting effect and the utilization rate of light energy, and highlights the obvious energy saving advantages of LED lamps.
6. There is no delay in starting, and it will turn on immediately, without waiting, to achieve normal brightness, and the number of switches can reach more than one million times.
7. Simple installation and strong versatility.
8. Green and pollution-free, floodlight design, no heat radiation, no harm to eyes and skin, no lead, mercury pollution elements, to achieve a real sense of energy-saving and environmentally friendly lighting.

Background Technique

1. Compared with traditional street lights, led street lights have unique advantages such as more energy saving, environmental protection, high efficiency, long life, fast response speed, good color rendering, and low calorific value. Therefore, the replacement of traditional street lamps by led street lamps is the trend of street lamp development. In the past ten years, led street lights have been widely used in road lighting as an energy-saving product.
2. Since the unit price of led street lights is higher than that of traditional street lights, all urban road lighting projects require led street lights to be easy to maintain, so that when the lights are damaged, it is not necessary to replace the entire lights, just turn on the lights to replace the damaged parts. That's enough; in this way, the maintenance cost of the lamps can be greatly reduced, and the later upgrade and transformation of the lamps are more convenient.
3. To realize the above functions, the lamp must have the function of opening the cover for maintenance. Since the maintenance is performed at high altitudes, the operation of opening the cover is required to be simple and convenient.

Product Name	TXLED-09A	TXLED-09B
Max Power	100W	200W
LED chip quantity	36pcs	80pcs
Supply voltage range	100-305V AC
Temperature range	-25℃/+55℃
Light guiding system	PC lenses
Light source	LUXEON 5050/3030
Color temperature	3000-6500k
Color rendering index	>80RA
Lumen	≥110 lm/w
LED luminous efficiency	90%
Lightning protection	10KV
Service life	Min 50000 hours
Housing material	Die-cast aluminum
Sealing material	Silicone rubber
Cover material	Tempered glass
Housing color	As customer’s requirement
Protection class	IP66
Mounting diameter option	Φ60mm

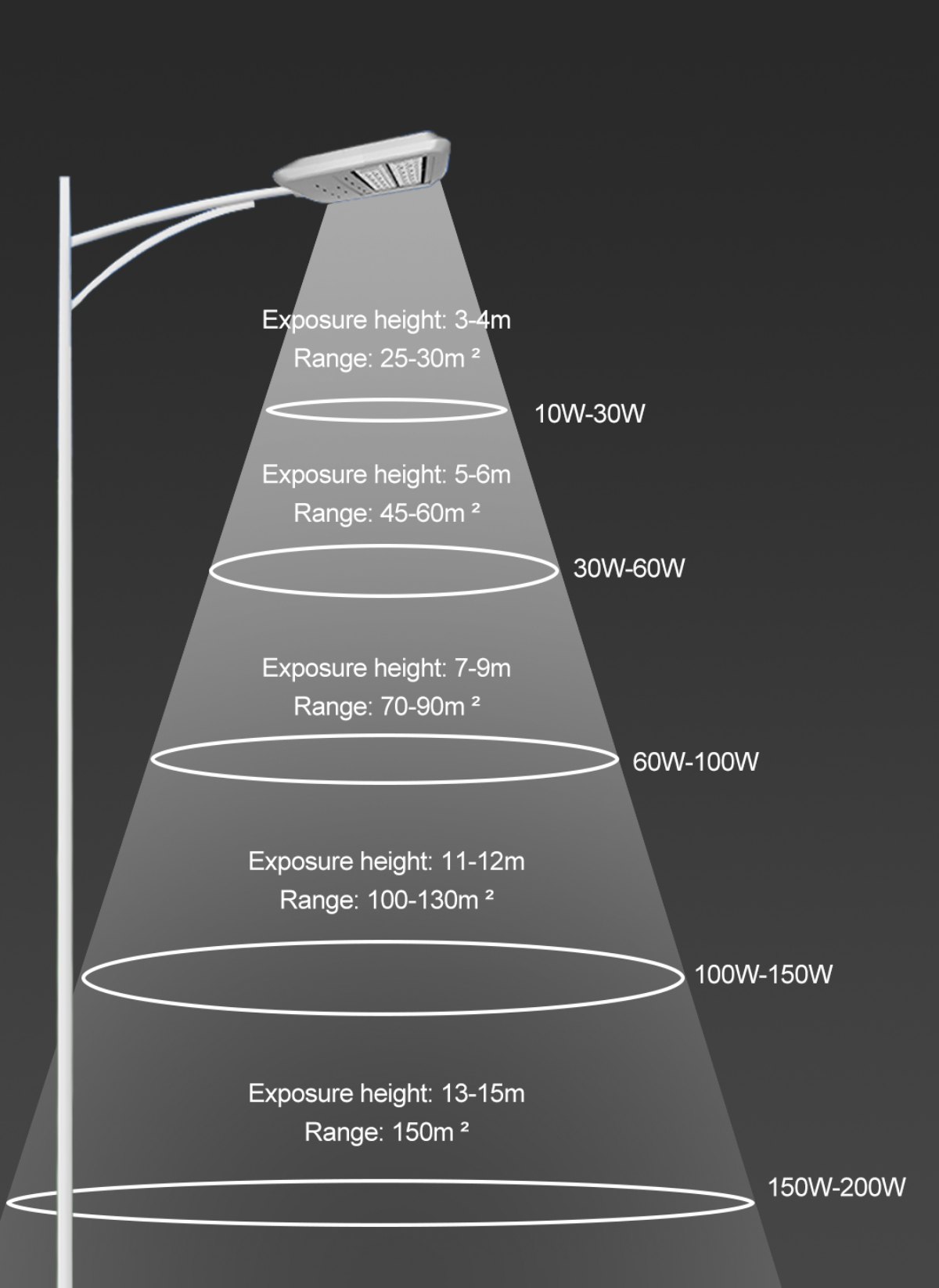

Suggested mounting height	8-10m	10-12m

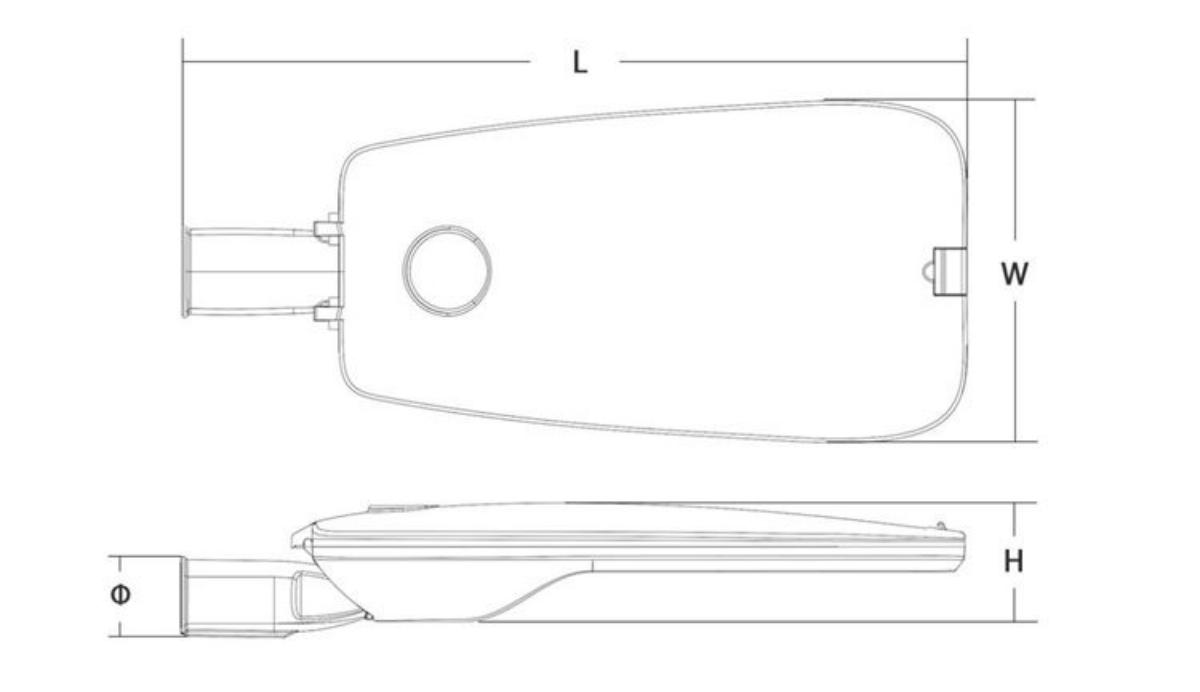

Dimension(LWH)	663280133mm	813351137mm

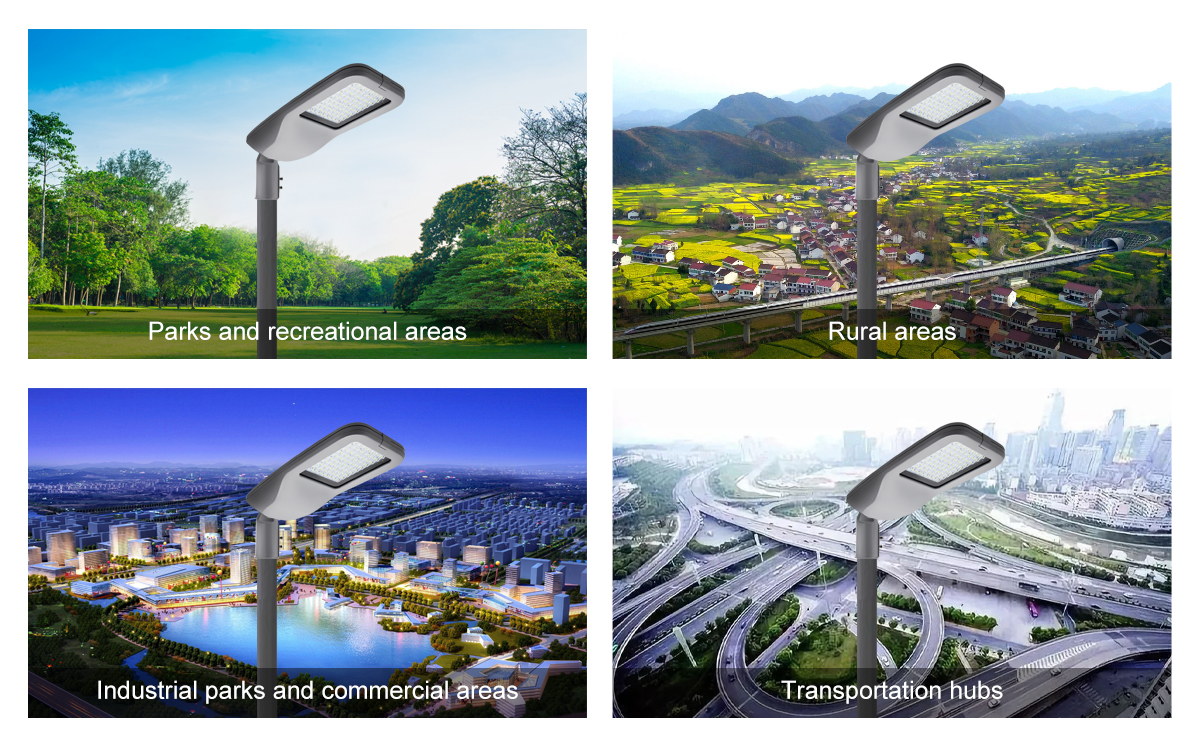

Application Places

Parks and recreational areas

Parks and recreational areas benefit greatly from the installation of LED street lighting. These eco-friendly lights provide even and bright illumination, enhancing the safety of these spaces at night. The high color rendering index (CRI) of the LED lights ensures that the colors of landscapes, trees, and architectural features are displayed accurately, creating a visually appealing atmosphere for park visitors. LED street lights can be installed on sidewalks, parking lots, and open spaces to effectively illuminate the entire area.

Rural areas

LED street lights are widely used in rural areas, providing reliable, high-quality lighting for small towns, villages and remote areas. These energy-saving lamps ensure consistent lighting even in areas with limited electricity. Country roads and paths can be safely illuminated, improving visibility and reducing accidents. The long life of LED lights also significantly reduces the need for frequent replacement and maintenance, making them ideal for areas with limited resources.

Industrial parks and commercial areas

Industrial parks and commercial areas can benefit a lot from installing LED street lights. These areas often require bright and even lighting to ensure a safe and productive work environment. LED street lights provide excellent illumination, improve visibility and reduce the risk of accidents. Additionally, their energy-efficient features can provide businesses with significant cost savings, resulting in a more sustainable and economically viable solution.

Transportation hubs

In addition to the above places, LED street lights are also used in transportation hubs such as parking lots, airports, and railway stations. These lights not only provide enhanced visibility for drivers and pedestrians but also contribute to overall energy savings. By using LED street lighting in these areas, energy consumption and greenhouse gas emissions can be significantly reduced, contributing to a greener, more sustainable future.

All in all, LED street light is a versatile and efficient lighting solutions that can be applied in various places. Whether it is urban roads, parks, villages, industrial parks, or transportation hubs, LED street lights can provide excellent lighting, energy saving, and long life. By incorporating these lights into different environments, we can create safer, greener, and more visually appealing spaces for everyone to enjoy. Adopting LED street lighting is a step towards a brighter, sustainable future.
