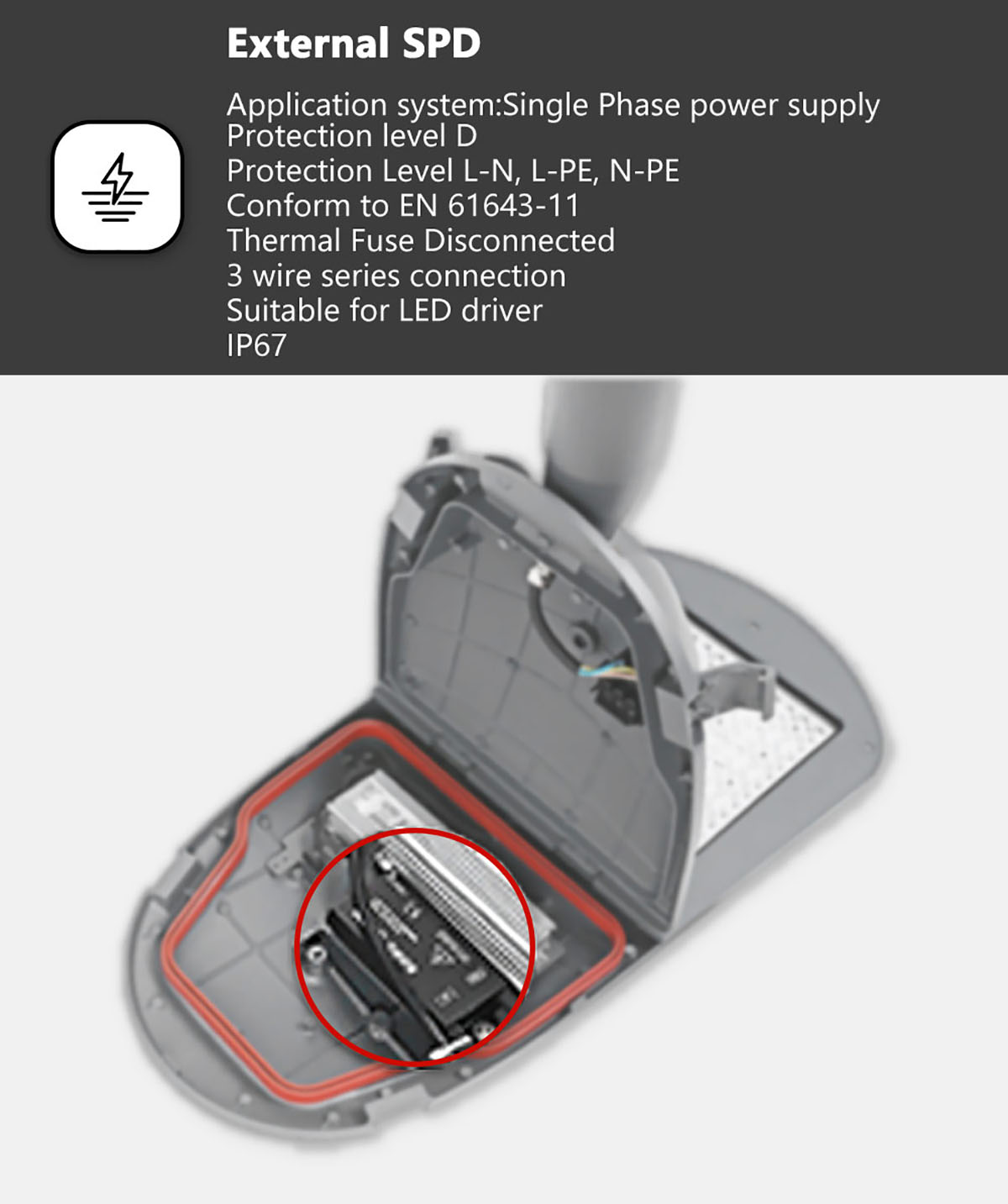

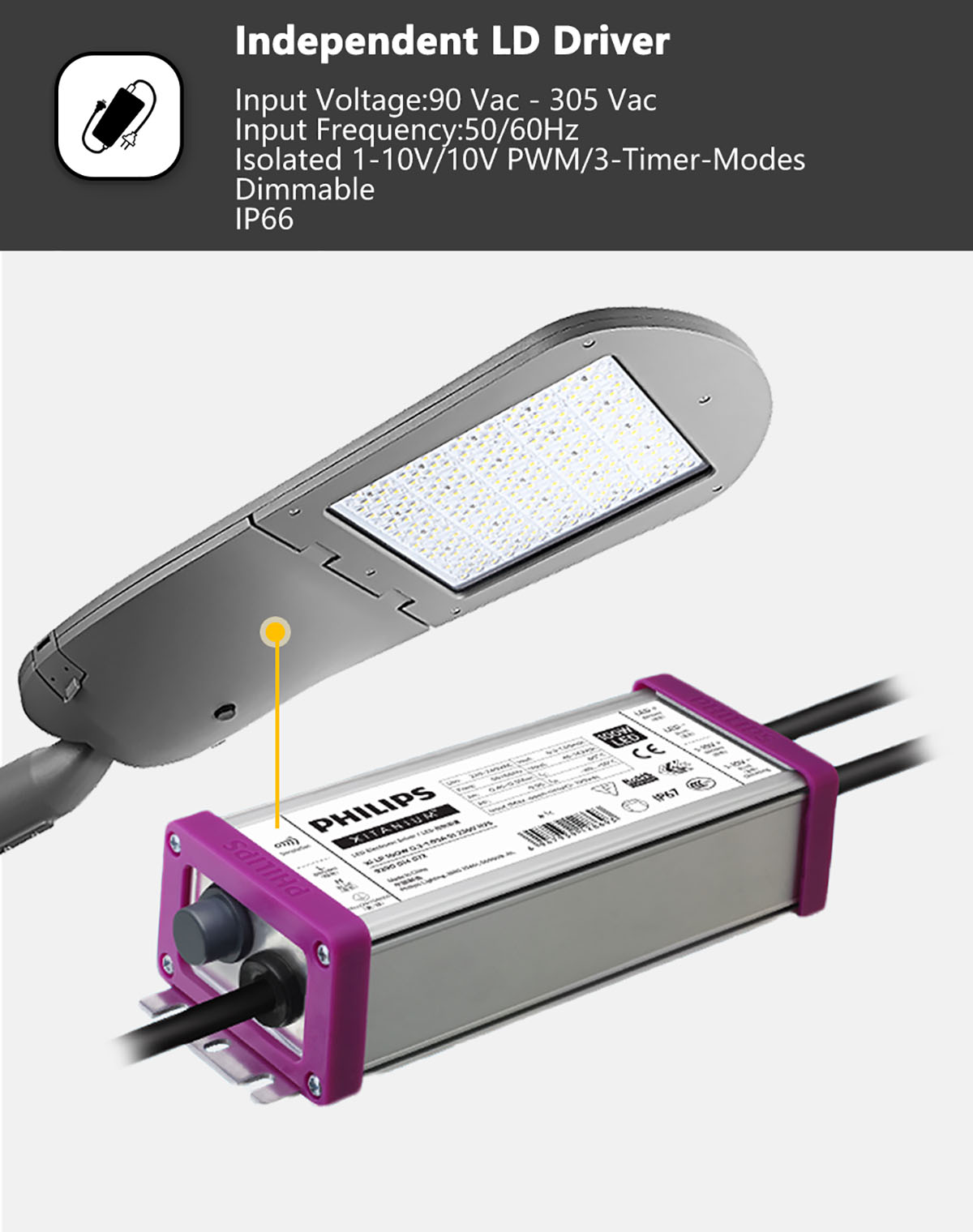

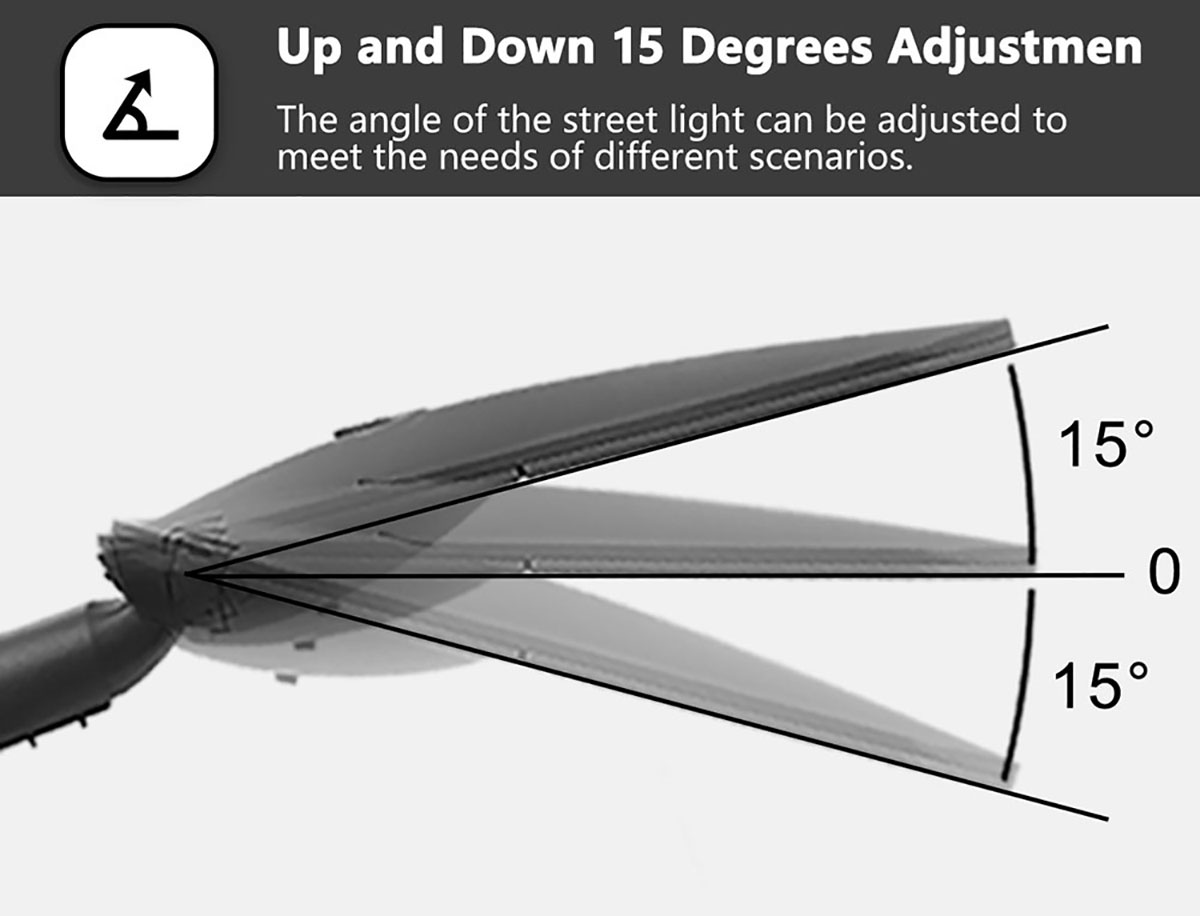

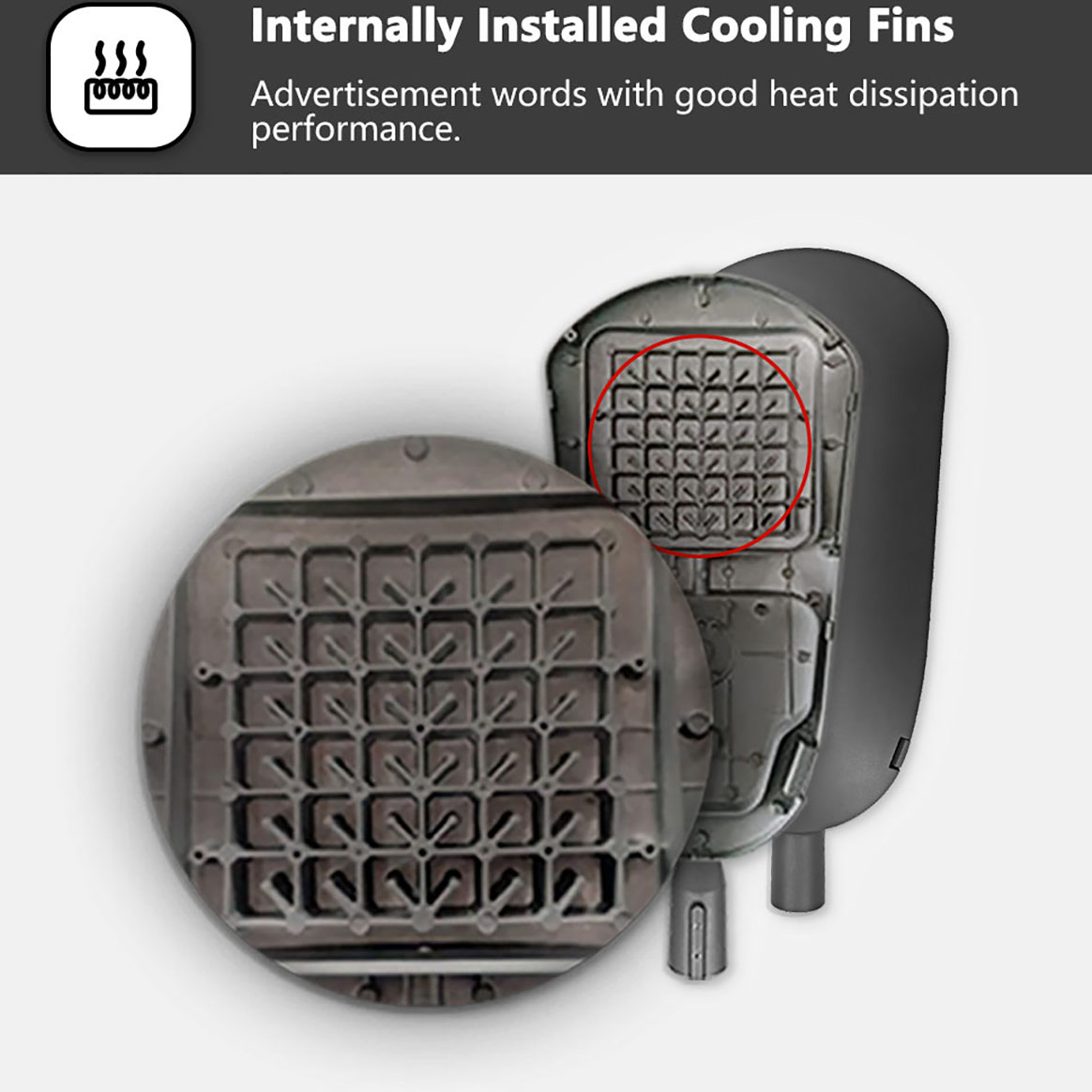

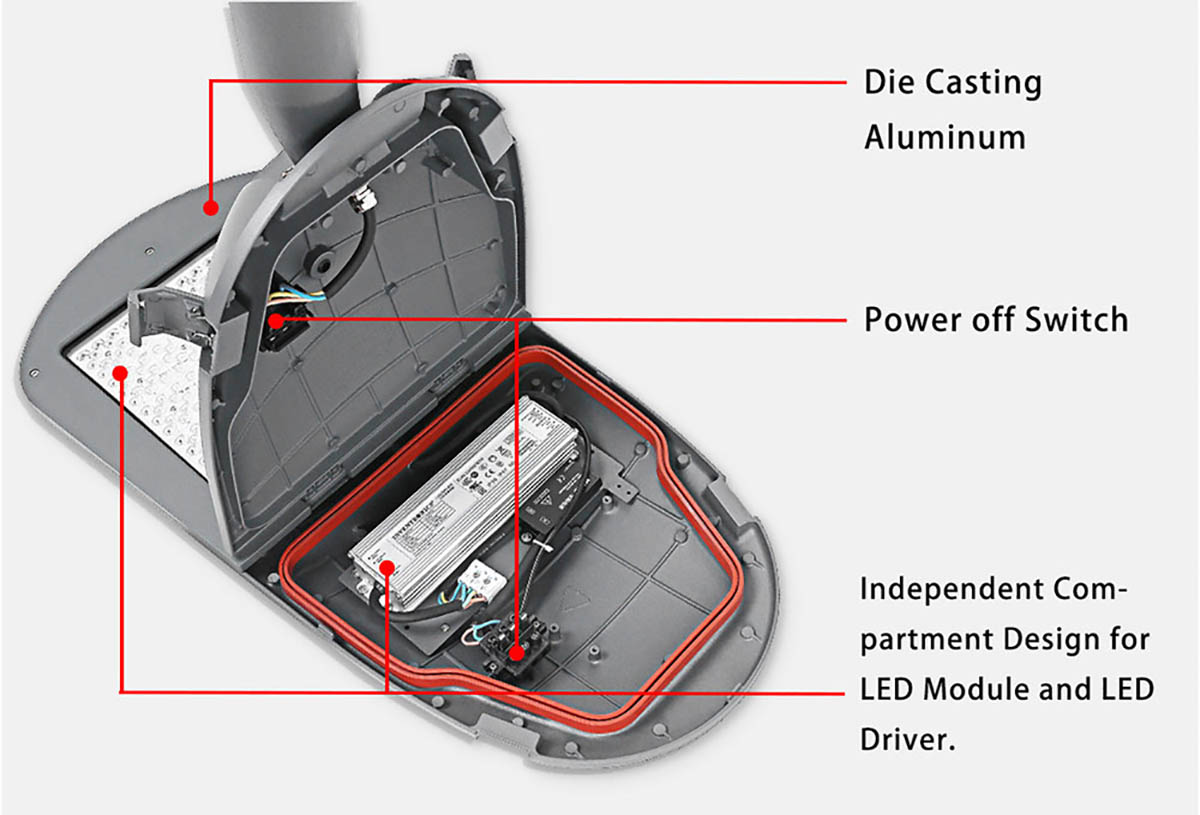

TX LED 10 is the latest high-lumen LED lamp designed by our company, which can improve the lumen to achieve high illumination on the road. The lamp currently uses 5050 chips, which can achieve a total light efficiency of 140lm/W, and 3030 chips can achieve a maximum power of 130lm/W. In the case of heat dissipation, the maximum power of the whole lamp is 220W, the built-in radiator, the product conforms to the European Class I standard, the internal design of independent power supply compartment and light source compartment, power-off switch, lightning arrester SPD, and angle-adjustable universal joint, connection buckle The design is convenient to open and close, and the latest design of LED lamps such as tool-free maintenance.
The lamp housing is made of ADC12 high-pressure aluminum high-pressure aluminum alloy die-casting, no rust, impact resistance, and the surface is treated with high-temperature electrostatic spraying and sandblasting.
At present, there are 30,000 sets of lamps in South America, and we will provide a 5-year warranty for each lamp, so that customers can choose with confidence.
According to the needs of the project, we can install light control, and install a single lamp controller to link the Internet of Things control system.
Order code |
Power(w) | Color temperature | Luminous flux of the luminaire(lm) -4000k(T=85℃) |
CRI |
Input voltage |
TX-S |
80w |
3000-6500k |
≥11000 |
>80 |
100-305VAC |
TX-M |
150w |
3000-6500k |
≥16500 |
>80 |
100-305VAC |
TX-L |
240w |
3000-6500k |
≥22000 |
>80 |
100-305VAC |
Product Name | TX-S/M/L |
Max Power | 80w/150w/300w |
Supply voltage range | 100-305VAC |
Temperature range | -25℃/+55℃ |
Light guiding system | PC lenses |

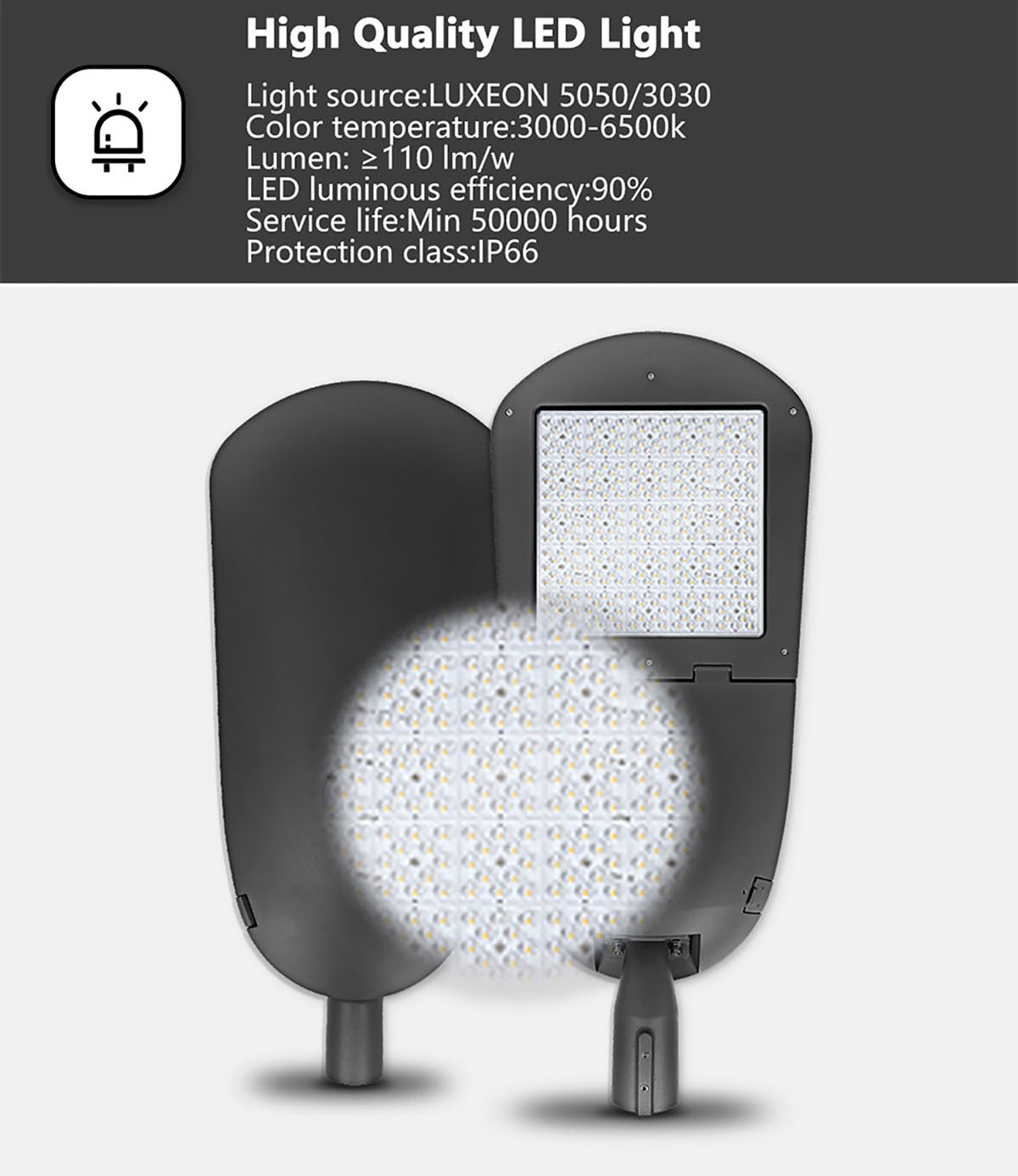

Light source | LUXEON 5050 |

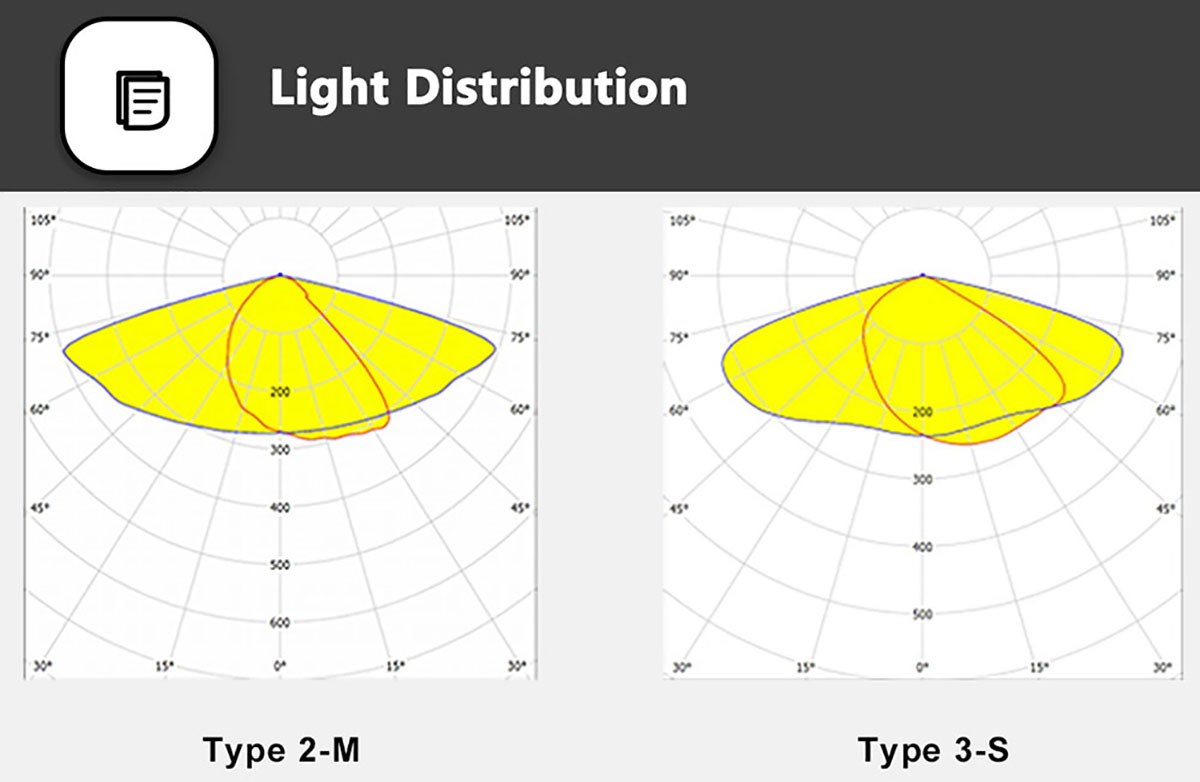

Luminous intensity class | Symmetrical:G2/Asymmetrical:G1 |
Glare index class | D6 |
Color temperature | 3000-6500k |
Color rendering index | >80RA |
System efficacy | 110-130lm/w |
LED Lifetime | Min 50000 hours at 25℃ |
Power efficiency | 90% |
Current adjustment range | 1.33-2.66A |
Voltage adjustment range | 32.4-39.6V |
Lightning protection | 10KV |
Service life | Min 50000 hours |
Housing material | Die-cast aluminum |
Sealing material | Silicone rubber |
Cover material | Tempered glass |
Housing color | As customer's requirement |
Wind resistance | 0.11m2 |
Protection class | IP66 |
Shock protection | IK 09 |
Corrosion resistance | C5 |
Mounting diameter option | Φ60mm |
Suggested mounting height | 5-12m |
Dimension(L*W*H) | 610*270*140/765*320*140/866*372*168mm |
Net weight | 4.5kg/7.2kg/9kg |
