Single Arm LED Light Pole

Short Description:

Our galvanized poles are made of steel with a rust-resistant zinc coating for maximum protection in harsh environmental conditions. A hot-dip galvanized finish ensures the light pole is durable, a long-lasting and cost-effective solution to your outdoor lighting needs.


  • facebook (2)
  • youtube (1)

DOWNLOAD
RESOURCES

Product Detail

Product Tags

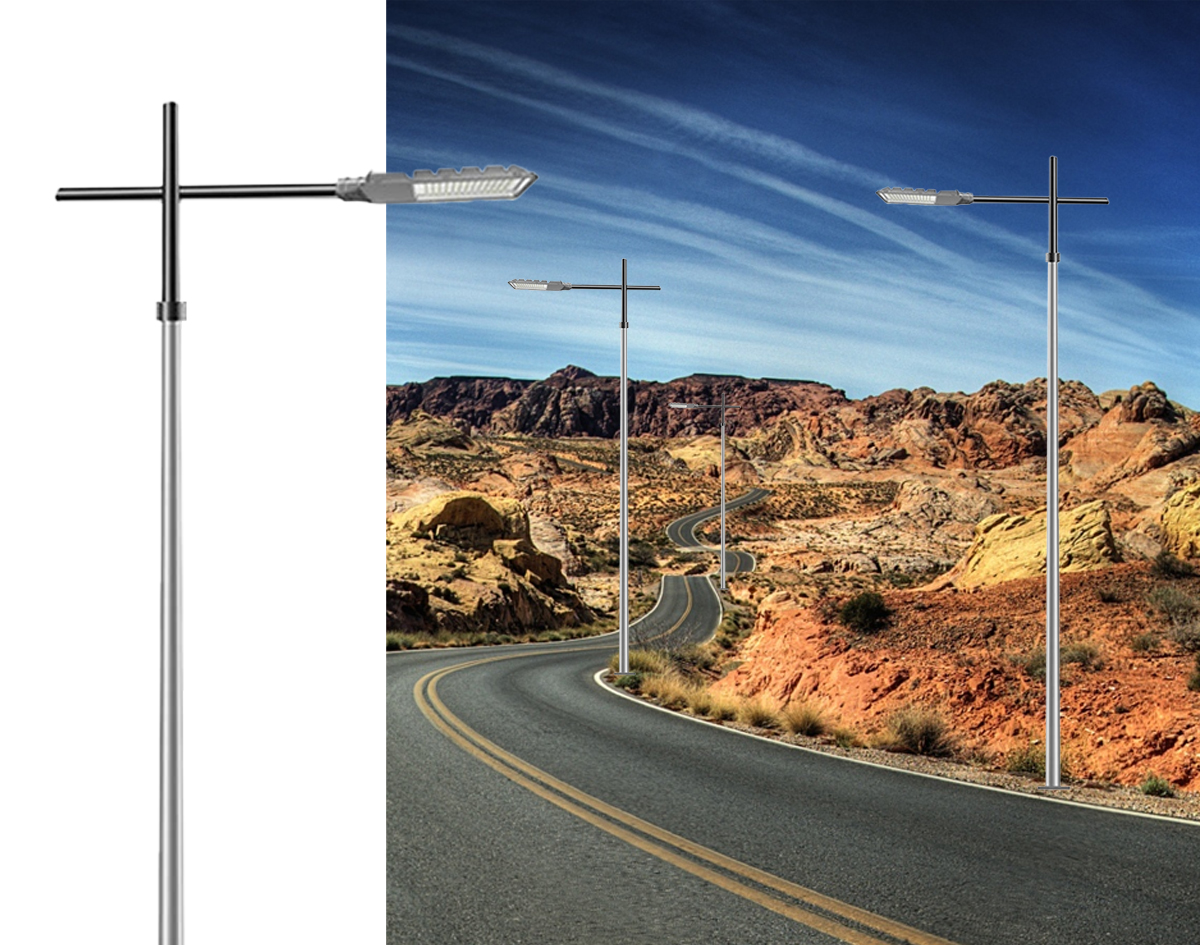

Single Arm Galvanized LED Light Pole

Product Description

Introducing our durable and reliable Galvanized Light Pole designed to meet all of your outdoor lighting needs. Made from high-quality materials, this pole is ideal for industrial and commercial applications, as well as public spaces such as parks and sports fields.

With their sleek, modern design, our galvanized poles will complement any outdoor space. Whether you need it for parking lot lighting, street lighting or area lighting, our light poles can efficiently distribute light throughout an area while providing an aesthetically pleasing appearance.

Our galvanized poles are available in a variety of heights and configurations to meet your specific needs. Each pole comes with a sturdy base plate for a secure mount, keeping your lights securely in place. The base plate is also equipped with multiple anchor points, which provide more stability.

Our galvanized poles are designed to withstand harsh weather conditions including heavy rain, high winds, and even extreme temperatures. No matter the weather, our poles will continue to provide reliable, efficient lighting you can depend on.

The installation process of our galvanized poles is quick and easy. You can install it yourself, or have a professional install it for you. Our light poles come with mounting hardware and assembly instructions, making it easy to get your lighting system up and running in no time.

At our company, we are committed to providing the highest quality products and exceptional customer service. Our galvanized poles are backed by a warranty so you can buy with confidence. We also offer excellent customer support for any questions or concerns you may have.

All in all, our galvanized light poles are an excellent choice for anyone looking for reliable and durable outdoor lighting. With its sturdy construction, sleek design, and durable protection from harsh weather conditions, this pole is built to last. Don't hesitate to contact us now for more information or to place an order.

Technical Data

Material Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Height 4M 5M 6M 7M 8M 9M 10M 12M
Dimensions(d/D) 60mm/140mm 60mm/150mm 70mm/150mm 70mm/170mm 80mm/180mm 80mm/190mm 85mm/200mm 90mm/210mm
Thickness 3.0mm 3.0mm 3.0mm 3.0mm 3.5mm 3.75mm 4.0mm 4.5mm
Flange 260mm*12mm 260mm*14mm 280mm*16mm 300mm*16mm 320mm*18mm 350mm*18mm 400mm*20mm 450mm*20mm
Tolerance of dimension ±2/%
Minimum yield strength 285Mpa
Max ultimate tensile strength 415Mpa
Anti-corrosion performance Class II
Against earthquake grade 10
Color Customized
Surface treatment Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
Shape Type Conical pole, Octagonal pole,Square pole, Diameter pole
Arm Type Customized: single arm,double arms,triple arms,four arms
Stiffener With big size to strength the pole to resist the wind
Powder coating Thickness of powder coating is 60-100um. Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance According to local weather condition, General design strength of wind resistance is ≥150KM/H
Welding Standard No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized Thickness of hot-galvanized is 60-100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test.
Anchor bolts Optional
Passivation Available

Customization

Customization options

Product Show

Hot dipped galvanized light pole

Packaging & Loading

loading and shipping

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.

2. Q: What's your main product?

A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.

3. Q: How long is your lead time?

A: 5-7 working days for samples; around 15 working days for bulk order.

4. Q: What's your shipping way?

A: By air or sea ship are available.

5. Q: Do you have OEM/ODM service?

A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
