Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||||
Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
Tolerance of dimension | ±2/% | ||||||
Minimum yield strength | 285Mpa | ||||||
Max ultimate tensile strength | 415Mpa | ||||||
Anti-corrosion performance | Class II | ||||||
Against earthquake grade | 10 | ||||||
Color | Customized | ||||||
Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||||

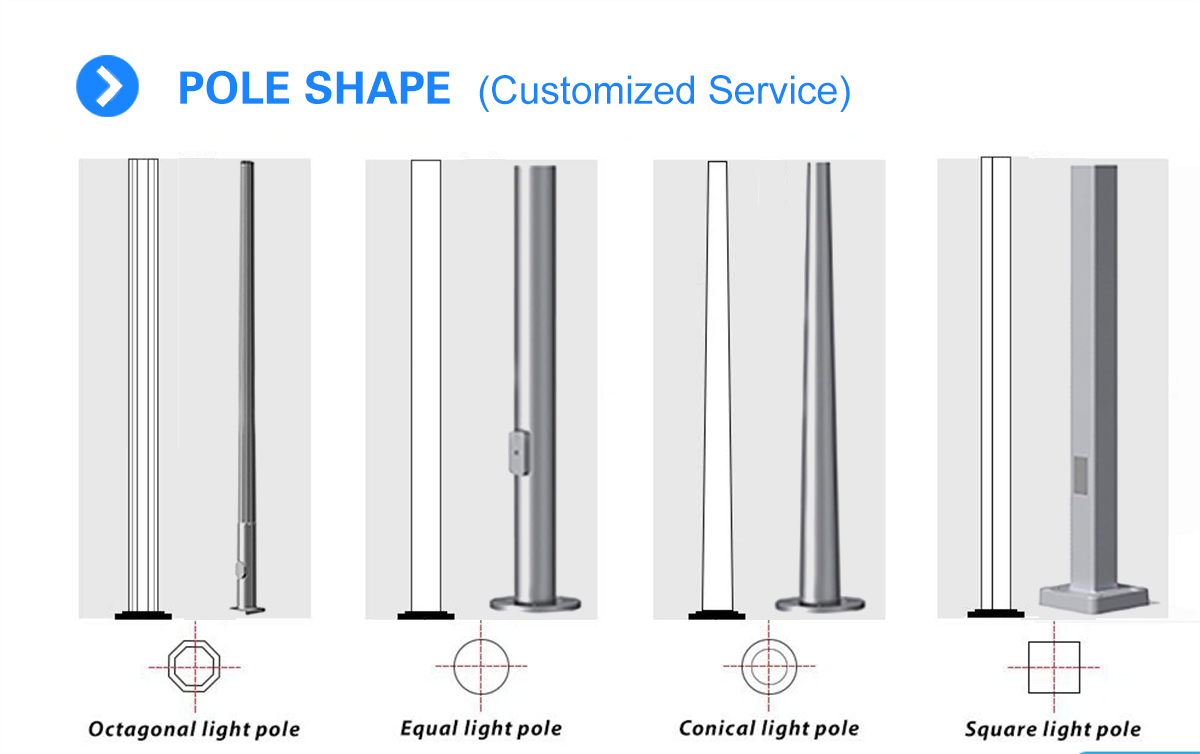

Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | ||||||

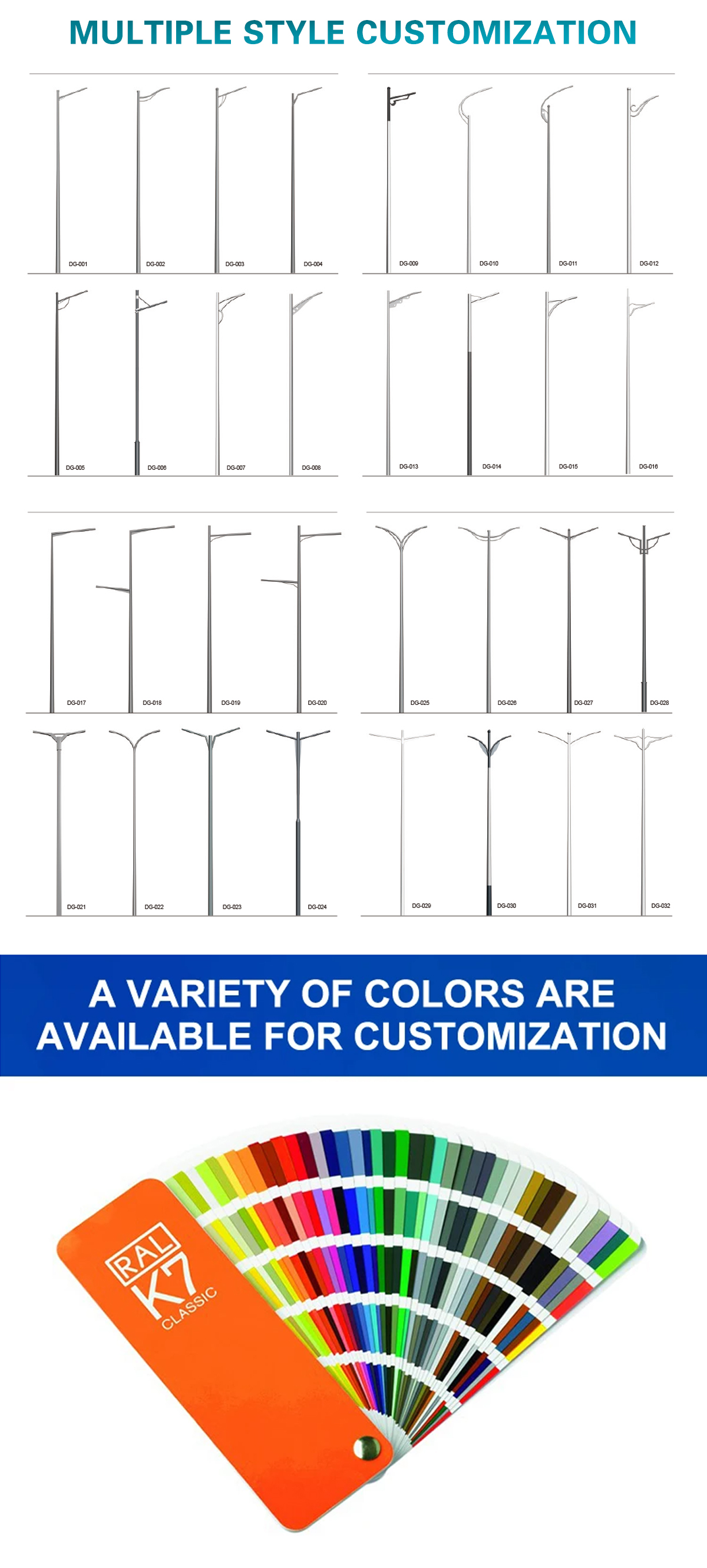

Arm Type | Customized: single arm,double arms,triple arms,four arms | ||||||
Stiffener | With big size to strength the pole to resist the wind | ||||||
Powder coating | Thickness of powder coating is 60-100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | ||||||
Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
Hot-Dip Galvanized | Thickness of hot-galvanized is 60-100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | ||||||
Anchor bolts | Optional | ||||||
Material | Aluminium,SS304 is available | ||||||
Passivation | Available |
With its many advantages and outstanding performance, hot-dip galvanized posts have gained great popularity in all walks of life. These posts have been subjected to a special galvanizing process ensuring optimum protection against corrosion and damage. With their solid construction and exceptional durability, hot-dipped galvanized posts offer an unrivaled solution for a variety of applications. Whether used for fencing, construction, or signage purposes, these galvanized posts offer exceptional strength and longevity, making them ideal for professionals in a variety of industries.
One of the main advantages of hot-dip galvanized posts is their unrivaled corrosion resistance. The galvanizing process involves coating the posts with a layer of zinc that effectively protects them from the harmful effects of moisture, chemicals, and other environmental factors. This protective layer acts as a barrier, preventing rust and ensuring the column can withstand harsh weather conditions without compromising its structural integrity. As a result, hot-dip galvanized posts provide a longer service life and reduce the need for frequent replacement, saving the user time and money.
In addition to being corrosion-resistant, hot-dip galvanized posts are highly versatile and suitable for a wide range of applications. Whether you need stable fencing for a residential property or reliable support for a major construction project, these positions can meet your specific requirements. Their versatility extends to various industries, including agriculture, transportation, and infrastructure. These galvanized posts are also available in a variety of sizes and shapes, allowing for customization to meet project needs.
Another significant advantage of hot-dip galvanized posts is the low maintenance requirements. Due to the galvanization, these posts are virtually maintenance-free. Unlike materials such as untreated steel, which require periodic repainting or coating to prevent corrosion, hot-dip galvanized posts keep their protection intact for an extended period of time. Not only does this save valuable time, but it also ensures the column remains visually appealing and structurally sound, even in demanding environments.
When it comes to sustainability, hot-dip galvanized posts are an environmentally friendly choice. The galvanizing process uses minimal energy and produces very little waste, making it an environmentally responsible choice. Additionally, by extending the useful life of the structure, these positions help reduce the overall carbon footprint associated with repairs and replacements. Therefore, Hot Dip Galvanized Columns are in line with sustainable development goals, providing a durable and environmentally friendly solution for applications in different industries.
All in all, hot-dip galvanized posts offer numerous advantages that make them an excellent choice for a variety of applications. With their corrosion resistance, versatility, low maintenance requirements, and sustainability benefits, these posts are long-lasting durability and cost-effective. Whether you need fence support, building framing, or signage structure, hot-dipped galvanized posts are a reliable solution to ensure your project will stand the test of time. Embrace the advantages of hot-dip galvanized posts and experience the difference in performance and durability today.
1. Q: Are you a factory or trading company?
A: We are a factory.
In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.
2. Q: What's your main product?
A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.
3. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
4. Q: What's your shipping way?
A: By air or sea ship are available.
5. Q: Do you have OEM/ODM service?
A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
