Hot Galvanized 5m-12m Steel Single Arm Lighting Pole
DOWNLOAD
RESOURCES
Product Description

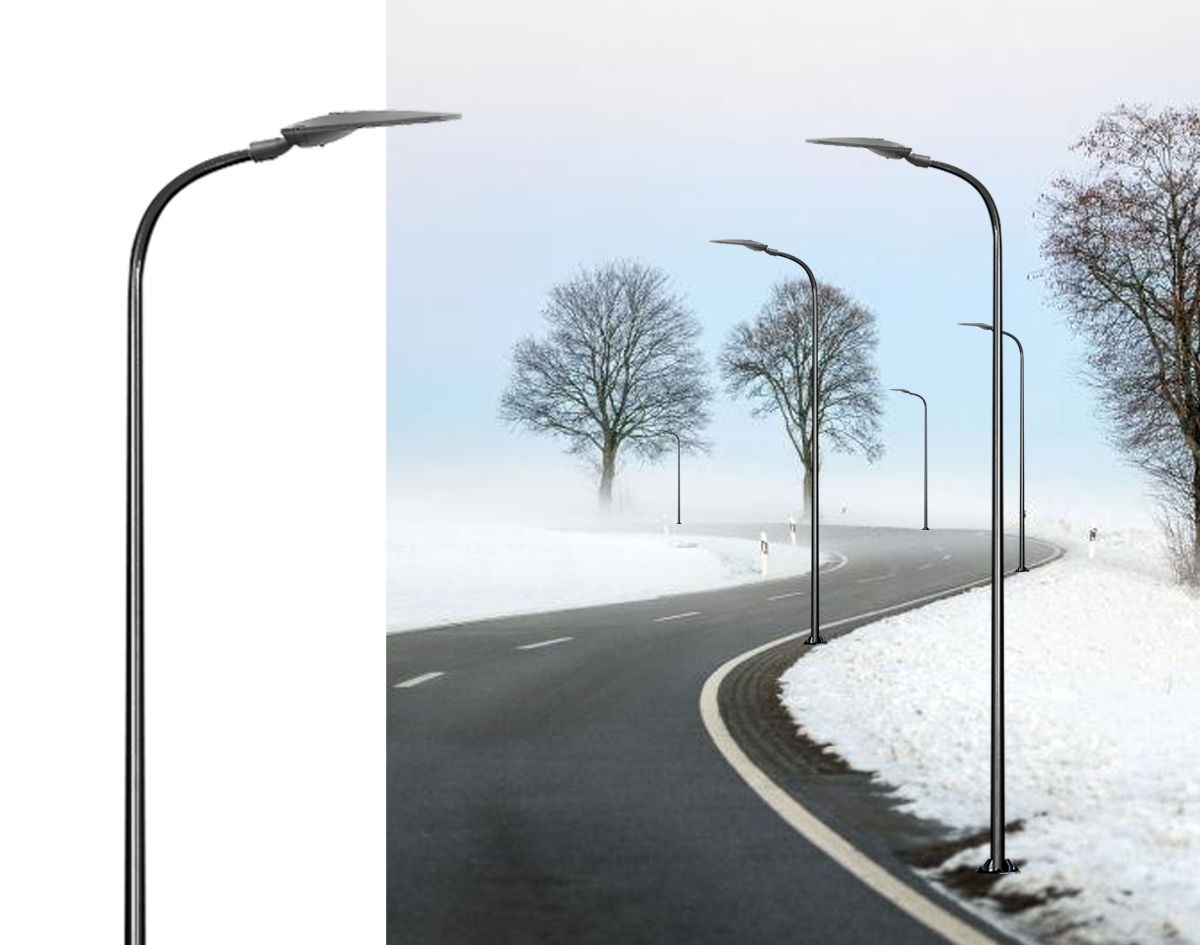

Introducing the Single Arm Street Lighting Steel Pole, an innovative and durable solution to your street lighting needs. Our products are designed to provide superior lighting in urban, suburban and rural communities, providing a reliable and long-lasting source of light in areas where safety and visibility are critical.
Our single arm street light steel pole is made of high quality material to ensure its durability and strength. Made of steel, this pole is designed to withstand all weather conditions and stand the test of time. Its single-arm design allows for a variety of placements, ensuring it can be used in a variety of areas with a variety of lighting needs.
The Single Arm Street Lighting Steel Pole is compatible with a wide range of light fixtures, so you can choose the light that best suits your specific lighting requirements. Whether you need LED or traditional lighting sources, this steel pole can accommodate a variety of bulbs, allowing great flexibility in the way you use the system while keeping energy costs low.
Our single arm street light steel poles are easy to install and are ideal for a variety of lighting applications. Whether you are installing a new street lighting system or retrofitting an existing one, our products are the perfect solution. Designed for easy installation, this pole allows for faster, more efficient light installation projects that require less time and labor.
The single-arm street lamp steel pole adopts a stylish and modern design, which is elegant and elegant, and seamlessly blends with the surrounding environment. It's perfect for adding a touch of class and elegance to residential and commercial settings, while still providing much-needed visibility from the street.
In summary, our single arm street lighting steel poles provide a reliable, cost-effective, safe and easy-to-install solution for all your street lighting needs. Whether you are lighting a residential area, a commercial area, or simply illuminating a busy road intersection, our products are ideal. We stand by our products and believe that our Single Arm Street Lighting Steel Pole will add exceptional value to all of your street lighting projects.
Technical Data
| Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||||
| Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | ||||||
| Minimum yield strength | 285Mpa | ||||||
| Max ultimate tensile strength | 415Mpa | ||||||
| Anti-corrosion performance | Class II | ||||||
| Against earthquake grade | 10 | ||||||
| Color | Customized | ||||||
| Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||||
| Shape Type | Conical pole, Octagonal pole, Square pole, Diameter pole | ||||||
| Arm Type | Customized: single arm, double arms, triple arms, four arms | ||||||
| Stiffener | With a big size to strengthen the pole to resist the wind | ||||||
| Powder coating | Thickness of powder coating>100um.Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
| Wind Resistance | According to local weather conditions, the General design strength of wind resistance is ≥150KM/H | ||||||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
| Hot-Dip Galvanized | Thickness of hot-galvanized>80um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. The designed life of the pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after the maul test. | ||||||
| Anchor bolts | Optional | ||||||
| Material | Aluminium,SS304 is available | ||||||
| Passivation | Available | ||||||
Manufacturing Process
Project Presentation
Exhibition
Company Profile
Yangzhou Tianxiang Road Lamp Equipment Co., Ltd. has built a strong reputation as one of the earliest and most reliable manufacturers specializing in outdoor lighting solutions, particularly in the area of street lights. With a wealth of experience and expertise, the company has consistently delivered high-quality, innovative, and efficient lighting products to meet the diverse needs of its clients.
Moreover, Tianxiang places great emphasis on customization and customer satisfaction. The team of professionals works closely with clients to understand their specific requirements and provide tailored solutions to meet their unique lighting needs. Whether it's for urban streets, highways, residential areas, or commercial complexes, the company's diverse range of street light products ensures that it can cater to a wide array of lighting projects.
In addition to its manufacturing capabilities, Tianxiang also provides comprehensive support services, including installation guidance, maintenance, and technical assistance.
FAQ
1. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
2. Q: What's your shipping way?
A: By air or sea ship are available.
3. Q: Do you have solutions?
A: Yes.
We offer a full range of value-added services, including design, engineering, and logistics support. With our comprehensive range of solutions, we can help you streamline your supply chain and reduce costs, while also delivering the products you need on-time and on-budget.
-
