Hot Galvanized 5m-12m Steel Double Arm Lighting Pole

Short Description:

Double arm light poles are to protrude two street lamps from the top of the street lamp pole and install two lamp heads to illuminate the paths on both sides of the road respectively.


  • facebook (2)
  • youtube (1)

DOWNLOAD
RESOURCES

Product Detail

Video

Product Tags

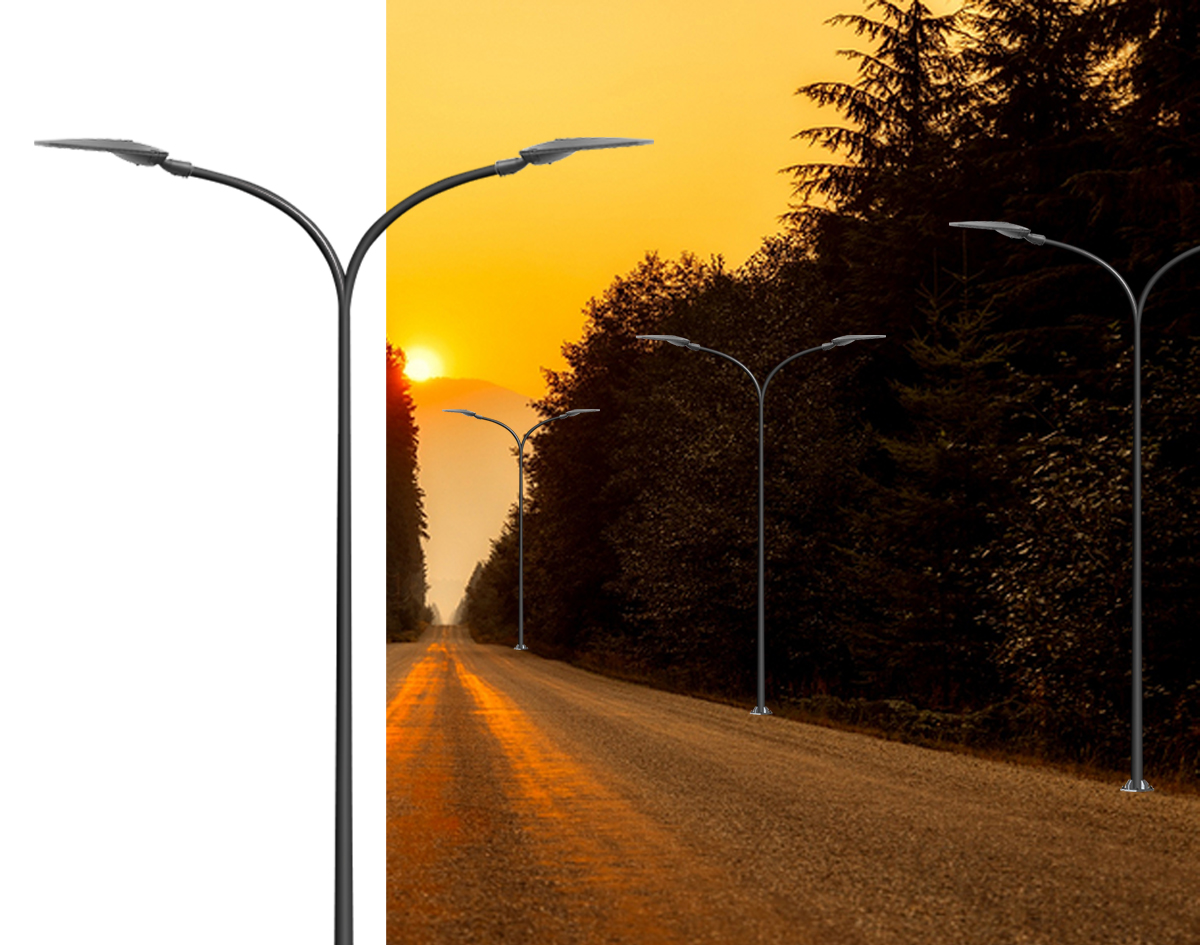

1.	Hot Galvanized 5m-12m Steel Double Arm Lighting Pole

Product Description

Introducing the latest addition to our light pole range - the 5m-12m steel double arm light pole. This product has been carefully crafted using high-quality materials and precision engineering to provide superior performance and longevity.

With a height of 5-12m, this light pole is the perfect addition to large outdoor lighting projects such as parks, highways or industrial parks. The pole features a dual-arm design that accommodates multiple lighting fixtures for increased visibility and increased safety.

Made of high quality steel, this light pole is very durable and reliable. Its sturdy construction ensures it can withstand the harshest weather conditions such as strong winds, heavy rain and snow. The light pole also undergoes a strict heat treatment process, which makes it have excellent anti-rust and corrosion resistance.

One of the main features of this light pole is its easy-to-install design. It comes with all necessary components including bolts, nuts and anchor bolts to make installation a breeze. Plus, the dual-arm design allows for easy attachment of lighting fixtures without the need for additional hardware or accessories.

But that's not all. This light pole also has a sleek and stylish design, making it an attractive addition to any space. Its modern aesthetic adds a touch of sophistication to outdoor areas, while its durable and reliable construction ensures it will continue to deliver exceptional performance and reliability for years to come.

All in all, the 5m-12m Steel Double Arm Lighting Pole is a quality and reliable lighting solution that is perfect for any outdoor lighting project. Its sturdy construction, easy-to-install design, and sleek aesthetics make it ideal for parks, highways, or industrial parks. With its exceptional durability, this light pole is a smart investment, providing a long-lasting and cost-effective source of lighting for any outdoor space.

Technical Data

Material Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Height 5M 6M 7M 8M 9M 10M 12M
Dimensions(d/D) 60mm/150mm 70mm/150mm 70mm/170mm 80mm/180mm 80mm/190mm 85mm/200mm 90mm/210mm
Thickness 3.0mm 3.0mm 3.0mm 3.5mm 3.75mm 4.0mm 4.5mm
Flange 260mm*14mm 280mm*16mm 300mm*16mm 320mm*18mm 350mm*18mm 400mm*20mm 450mm*20mm
Tolerance of dimension ±2/%
Minimum yield strength 285Mpa
Max ultimate tensile strength 415Mpa
Anti-corrosion performance Class II
Against earthquake grade 10
Color Customized
Surface treatment Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
Shape Type Conical pole, Octagonal pole, Square pole, Diameter pole
Arm Type Customized: single arm, double arms, triple arms, four arms
Stiffener With big size to strength the pole to resist the wind
Powder coating Thickness of powder coating>100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance.Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance According to local weather condition, General design strength of wind resistance is ≥150KM/H
Welding Standard No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized Thickness of hot-galvanized>80um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test.
Anchor bolts Optional
Material Aluminium, SS304 is available
Passivation Available

Manufacturing Process

Hot-dip Galvanized Light Pole

Shipping

shipping

Company Profile

Company Profile

Yangzhou Tianxiang Road Lamp Equipment Co., Ltd. has built a strong reputation as one of the earliest and most reliable manufacturers specializing in outdoor lighting solutions, particularly in the area of street lights. With a wealth of experience and expertise, the company has consistently delivered high-quality, innovative, and efficient lighting products to meet the diverse needs of its clients.

Moreover, Tianxiang places great emphasis on customization and customer satisfaction. The team of professionals works closely with clients to understand their specific requirements and provide tailored solutions to meet their unique lighting needs. Whether it's for urban streets, highways, residential areas, or commercial complexes, the company's diverse range of street light products ensures that it can cater to a wide array of lighting projects.

In addition to its manufacturing capabilities, Tianxiang also provides comprehensive support services, including installation guidance, maintenance, and technical assistance.

Project Presentation

Project presentation

Exhibition

Exhibition

FAQ

1. Q: How long is your lead time?

A: 5-7 working days for samples; around 15 working days for bulk order.

2. Q: What's your shipping way?

A: By air or sea ship are available.

3. Q: Do you have solutions?

A: Yes.

We offer a full range of value-added services, including design, engineering, and logistics support. With our comprehensive range of solutions, we can help you streamline your supply chain and reduce costs, while also delivering the products you need on-time and on-budget.
