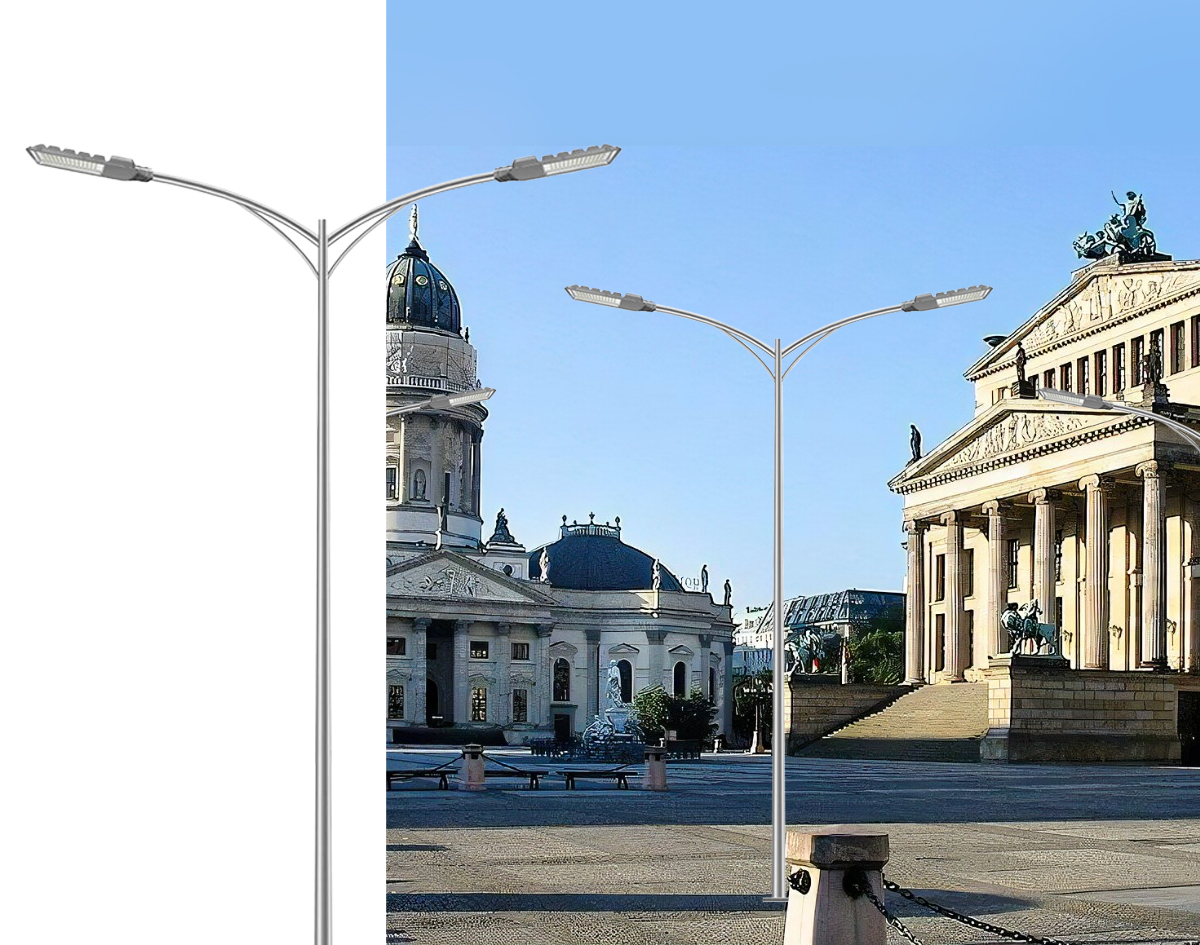

Highway Double Arm Conical Outdoor Light Pole
DOWNLOAD
RESOURCES
Technical Data
| Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||||
| Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | ||||||
| Minimum yield strength | 285Mpa | ||||||
| Max ultimate tensile strength | 415Mpa | ||||||
| Anti-corrosion performance | Class II | ||||||
| Against earthquake grade | 10 | ||||||
| Color | Customized | ||||||
| Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||||
| Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | ||||||
| Arm Type | Customized: single arm,double arms,triple arms,four arms | ||||||
| Stiffener | With big size to strength the pole to resist the wind | ||||||
| Powder coating | Thickness of powder coating is 60-100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
| Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | ||||||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
| Hot-Dip Galvanized | Thickness of hot-galvanized is 60-100um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | ||||||
| Anchor bolts | Optional | ||||||
| Material | Aluminium,SS304 is available | ||||||
| Passivation | Available | ||||||

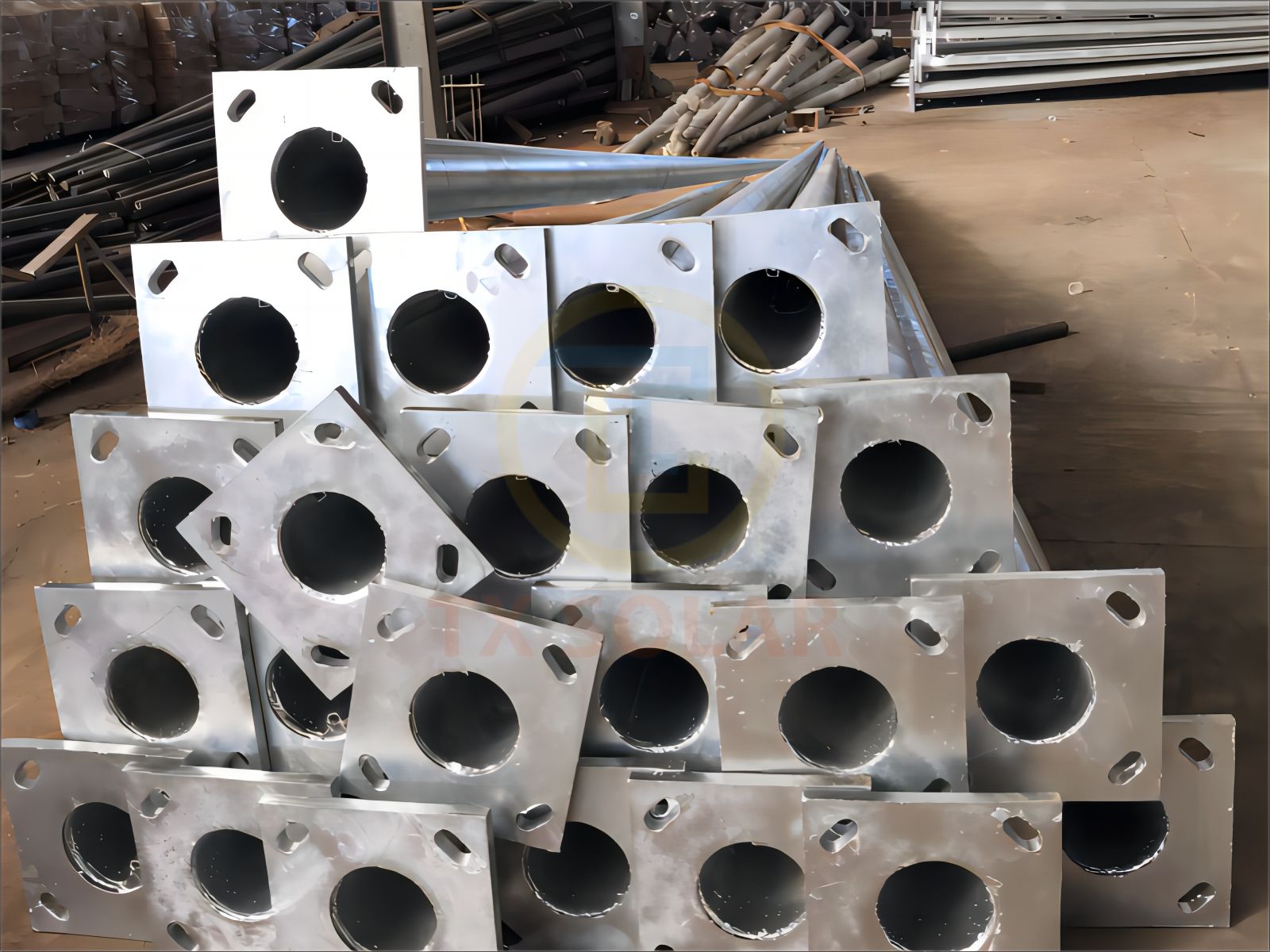

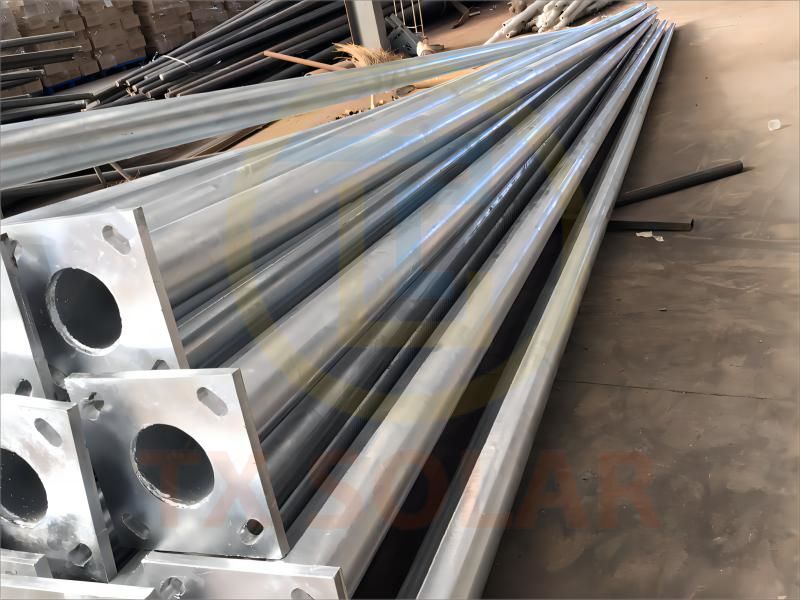

Product Show
Customization
Product Features
An conical pole is composed of a conical rod body and a bracket and is made of high-strength steel. Its main features include the following aspects:
1. Lightweight and beautiful: Compared with the traditional square light pole, the conical pole is lighter and more beautiful, and can be well integrated into the surrounding landscape.
2. Easy to install: The conical pole adopts modular design, which is easy and convenient to install. At the same time, it has good wind resistance and is suitable for use in harsh environments such as strong winds.
3. High strength: The conical pole is made of high-strength steel, which has good corrosion resistance and oxidation resistance, long service life and low maintenance cost.
4. Diversification of lamps: the conical pole can be equipped with various types of lamps according to different needs, such as LED lights, solar lights, etc., suitable for different places and purposes.
Applicable Scene
Conical poles are widely used in indoor and outdoor places, with a variety of usage scenarios.
1. Highway: The conical pole can be used as road lighting to improve the safety of driving at night.
2. Square: The conical pole can beautify the environment of the square, provide sufficient lighting, and enable people to use the area safely.
3. Garden: Conical poles can be used in garden landscapes to provide good lighting effects and create a romantic and warm atmosphere.
4. Shops: Conical poles are often used in commercial streets to make shops look better and have lighting effects to enhance people's confidence in the neighborhood.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.
2. Q: What's your main product?
A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.
3. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
4. Q: What's your shipping way?
A: By air or sea ship are available.
5. Q: Do you have OEM/ODM service?
A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
-
