High Mast with Safety Cage Ladder

Short Description:

Safety cage ladder is an integral feature of the high mast design, providing a secure means for maintenance personnel to access the lighting fixtures for inspection, repair, or replacement. The ladder is enclosed with a safety cage, which helps prevent falls and enhances worker safety during maintenance activities. This design is crucial for ensuring that maintenance can be performed efficiently and safely, minimizing risks associated with working at height.


  • Place of Origin: Jiangsu, China
  • Material: Q235,Q345
  • Power: 400W-2000W
  • Light Extension: Up to 30000㎡
  • MOQ: 1 Set
    • facebook (2)
    • youtube (1)

    DOWNLOAD
    RESOURCES

    Product Detail

    Product Tags

    Description

    High mast lights are usually made of corrosion-resistant materials, such as steel, to ensure their stability and durability in various climatic conditions. Modern high mast lights mostly use LED light sources, which are energy-saving and environmentally friendly, and can significantly reduce energy consumption and maintenance costs. In addition, the design of high mast lights also focuses on aesthetics, which can be coordinated with the surrounding environment and enhance the overall image of the city. In short, high mast lights are an indispensable and important equipment in modern urban lighting.

    Technical Data

    Material Commonly: Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
    Height 15M 20M 25M 30M 40M
    Dimensions (d/D) 120mm/ 280mm 220mm/ 460mm 240mm/ 520mm 300mm/ 600mm 300mm/ 700mm
    Thickness 5mm+6mm 6mm+8mm 6mm+8mm+10mm 8mm+8mm+10mm 6mm+8mm+10mm+12mm
    LED Power 400W 600W 700W 800W 1000W
    Color Customized
    Surface treatment Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
    Shape Type Conical pole, Octagonal pole
    Stiffener With big size to strength the pole to resist the wind
    Powder coating Thickness of powder coating is 60-100um.
    Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance.
    The surface is not peeling even with blade scratch (15×6 mm square).
    Wind Resistance According to local weather condition, General design strength of wind resistance is ≥150KM/H
    Welding Standard No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
    Hot-Dip Galvanized Thickness of hot-galvanized is 60-100um.
    Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test.
    Lifting device Ladder climbing or electric
    Anchor bolts Optional
    Material Aluminium,SS304 is available
    Passivation Available

    Project

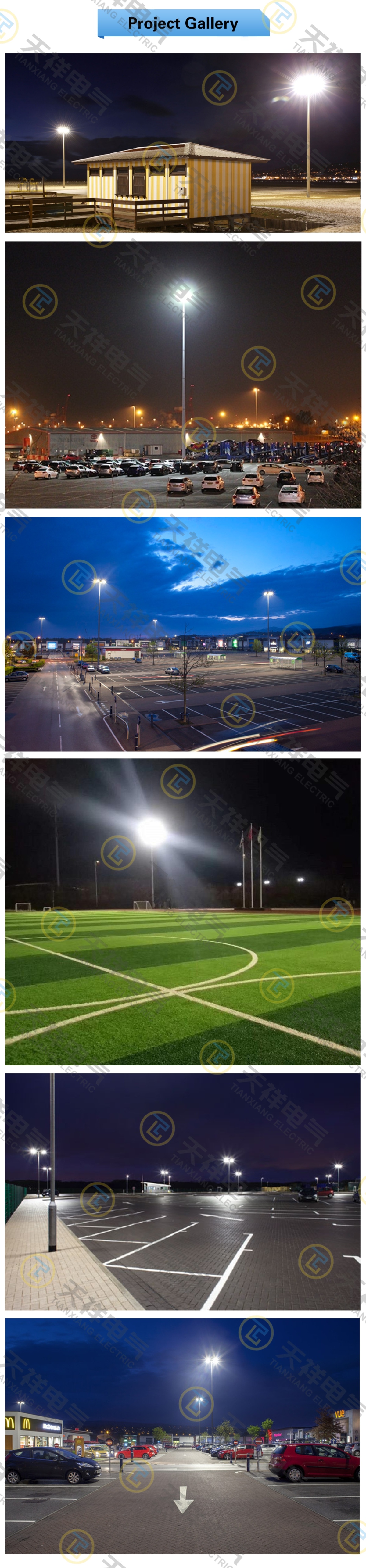

    high mast light project

    Different Style

    Shapes

    Manufacturing Process

    light pole manufacturing process

    About Us

    We are a well-known enterprise engaged in R&D, production, wholesale and export of street lights with nearly 20 years of experience. The factory is well-equipped and you are welcome to inspect our factory at any time.

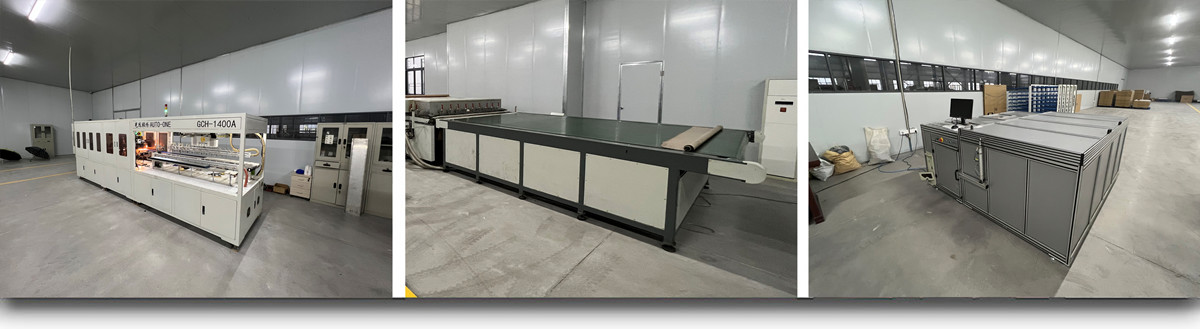

    Production of panels

    Solar panel

    Production of LED lamps

    Lamp

    Production of poles

    Light Pole

    Production of battery

    Battery
