High And Low Arm Aluminum Light Pole
DOWNLOAD
RESOURCES
Technical Data
| Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | ||||||
| Minimum yield strength | 285Mpa | ||||||
| Max ultimate tensile strength | 415Mpa | ||||||
| Anti-corrosion performance | Class II | ||||||
| Against earthquake grade | 10 | ||||||
| Color | Customized | ||||||
| Shape Type | Conical pole, Octagonal pole, Square pole, Diameter pole | ||||||
| Arm Type | Customized: single arm, double arms, triple arms, four arms | ||||||
| Stiffener | With a big size to strengthen the pole to resist the wind | ||||||
| Powder coating | Thickness of powder coating is 60-100um. Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
| Wind Resistance | According to local weather conditions, General design strength of wind resistance is ≥150KM/H | ||||||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
| Anchor bolts | Optional | ||||||
| Material | Aluminium | ||||||
| Passivation | Available | ||||||
Product Description

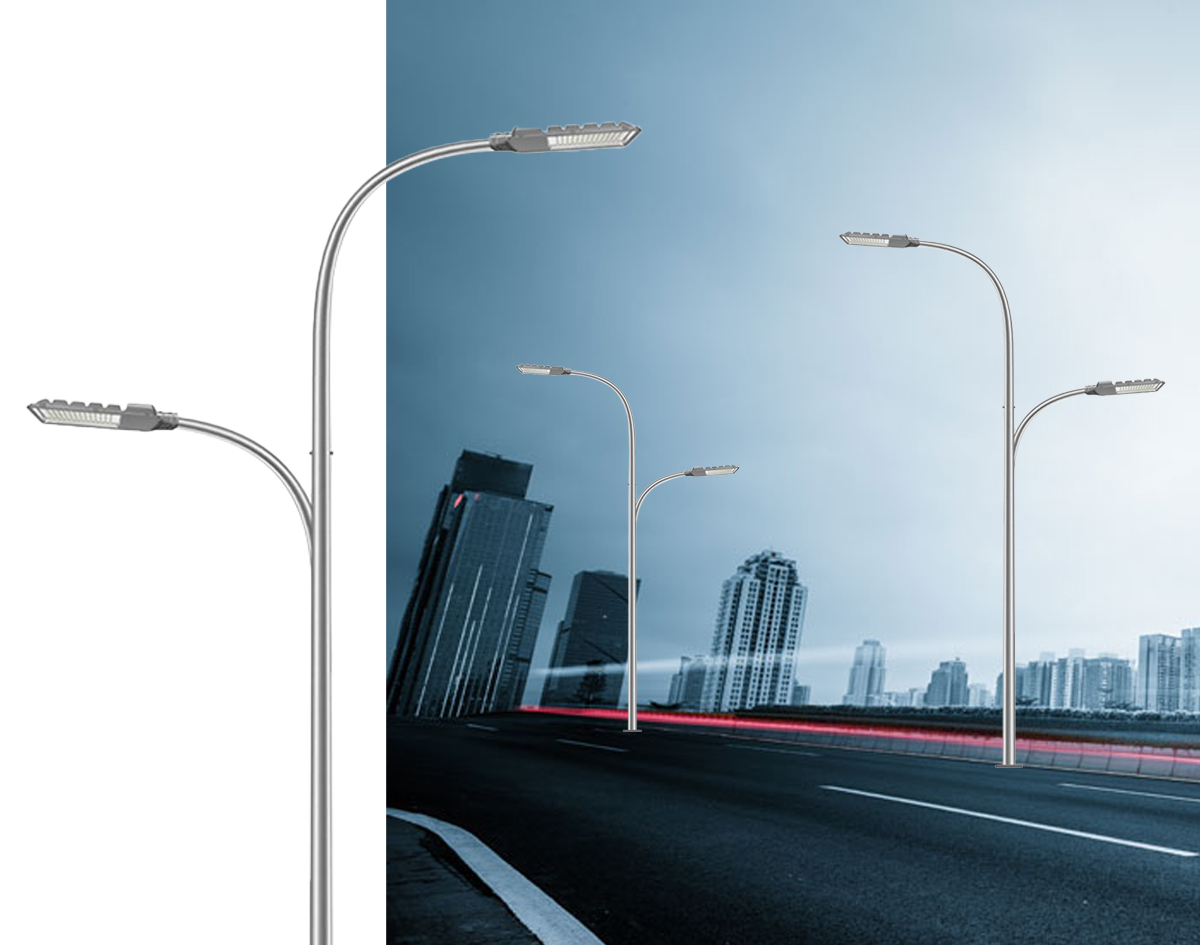

Double arm pole light is an innovative lighting solution designed to meet various lighting needs simultaneously. With a double arm design, this street light pole features a high-power LED light installed on one arm and a low-power LED light on the other. This design ensures that the street and sidewalk both get optimal lighting.
The high-power LED light on the first arm provides bright lighting effects to ensure safe passage on the road. With its high luminosity and excellent color rendering, it addresses the challenges of lighting up wider outdoor spaces. The low-power LED light, on the other hand, provides soft lighting for pedestrians walking on sidewalks. Its warm color temperature creates a comfortable environment and enhances the atmosphere of the surrounding areas.
The double arm design of this street light pole also offers excellent durability and stability. The arms are made of high-quality materials, and the whole system is designed to withstand heavy winds, rain, and other weather conditions. It is easy to install and maintain, making it a convenient and long-lasting lighting solution for any outdoor space.
Overall, the double arm pole light pole is an excellent choice for anyone looking for a reliable, efficient, and sustainable lighting solution for their outdoor spaces. Its innovative double arm design provides optimal illumination, making it ideal for roadways, sidewalks, parks, and other public spaces. Choose the double arm pole light pole today and enjoy high-quality and energy-efficient lighting for years to come.
Customization
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.
2. Q: What's your main product?
A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.
3. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
4. Q: What's your shipping way?
A: By air or sea ship are available.
5. Q: Do you have OEM/ODM service?
A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
-
