TXGL-103 | |||||
Model | L(mm) | W(mm) | H(mm) | ⌀(mm) | Weight(Kg) |
103 | 481 | 481 | 471 | 60 | 7 |
Model Number |
TXGL-103 |
Chip Brand |
Lumileds/Bridgelux |
Driver Brand |
Philips/Meanwell |
Input Voltage |
100-305V AC |
Luminous Efficiency |
160lm/W |
Color Temperature |
3000-6500K |
Power Factor |
>0.95 |
CRI |
>RA80 |

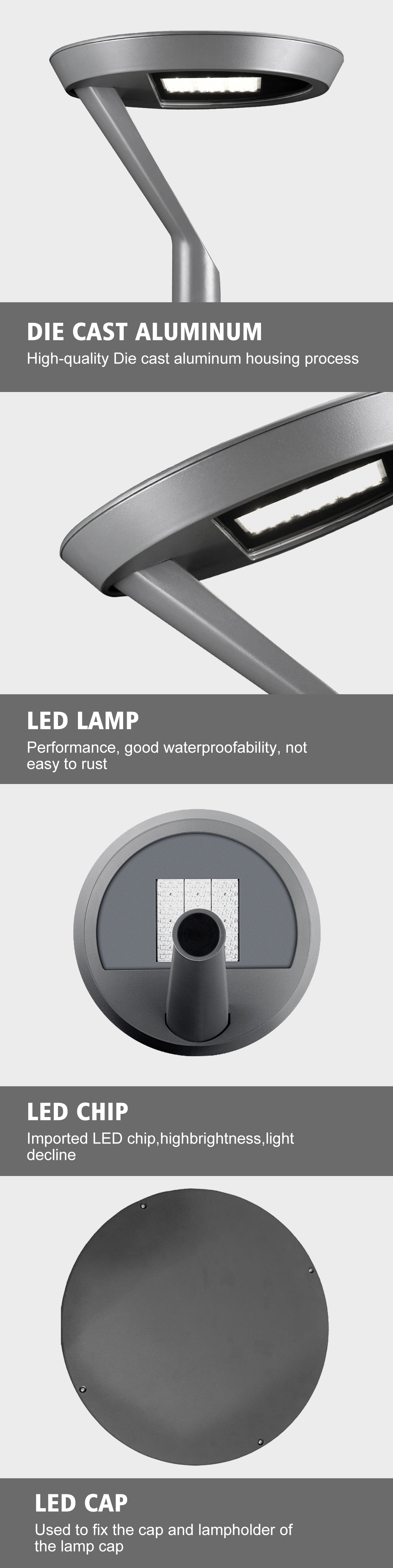

Material |
Die Cast Aluminium Housing |
Protection Class |
IP66 |
Working Temp |
-25 °C~+55 °C |
Certificates |
CE, RoHS |
Life Span |
>50000h |
Warranty |
5 Years |
In addition to the basic illuminance requirements of Venue lighting, other requirements such as illuminance uniformity, color rendering of the light source, color temperature requirements, and glare are also important indicators for measuring lighting quality. High-quality venue lighting can create a relaxed and good visual environment for drivers and pedestrians.
1. Adopt the conventional street lighting method, the lamp post is equipped with single-head or upper-head LED street lights, the height of the street light pole is 6 meters to 8 meters, the installation distance is about 20 meters to 25 meters, and the power of the LED street lights on the top: 60W-120W;
2. The high pole lighting method is adopted, which reduces redundant wiring and the number of lamps installed. The advantage of the pole light is that the lighting range is wide and the maintenance is simple; the height of the lamp post is 20 meters to 25 meters; the number of LED floodlights installed on the top : 10 sets- 15 sets; LED flood light power: 200W-300W.
1. Entrance and exit
The entrance and exit of the parking lot need to check the certificate, charge, and identify the driver's face to facilitate the communication between the staff and the driver; the railings, facilities on both sides of the entrance and exit, and the ground must provide corresponding lighting to ensure the driver's safe driving. Therefore, Here, the parking lot light should be properly strengthened and provide targeted lighting for these operations. GB 50582-2010 stipulates that the illuminance at the entrance of the parking lot and the toll office should not be lower than 50lx.
2. Signs and markings
The signs in the parking lot need to be illuminated to be seen, so the lighting of the signs should be taken into account when setting the venue lighting. Secondly, for the markings on the ground, when setting the venue lighting, it should be ensured that all the markings can be clearly displayed.
3. Parking space
For the illumination requirements of the parking space, it is necessary to ensure that the ground markings, ground locks, and isolation railings are clearly displayed, so that the driver will not hit the ground obstacles due to insufficient illumination when driving into the parking space. After the vehicle is parked in place, the body needs to be displayed through appropriate venue lighting to facilitate the identification of other drivers and the entry and exit of the vehicle.
4. Pedestrian route
When pedestrians pick up or get off their cars, there will be a section of walking road. The lighting of this section of road should be considered as ordinary pedestrian roads, and appropriate ground lighting and vertical lighting should be provided. If the pedestrian route and the roadway are mixed in this yard, it shall be considered according to the standard of the roadway.
5. Environment
For the sake of safety and direction identification, the environment of the parking lot should have certain lighting. The above problems can be improved by arranging the parking lot lights. By setting up continuous lamp posts around the parking lot to form an array, it can act as a visual barrier and achieve an isolation effect between the inside and outside of the parking lot.
