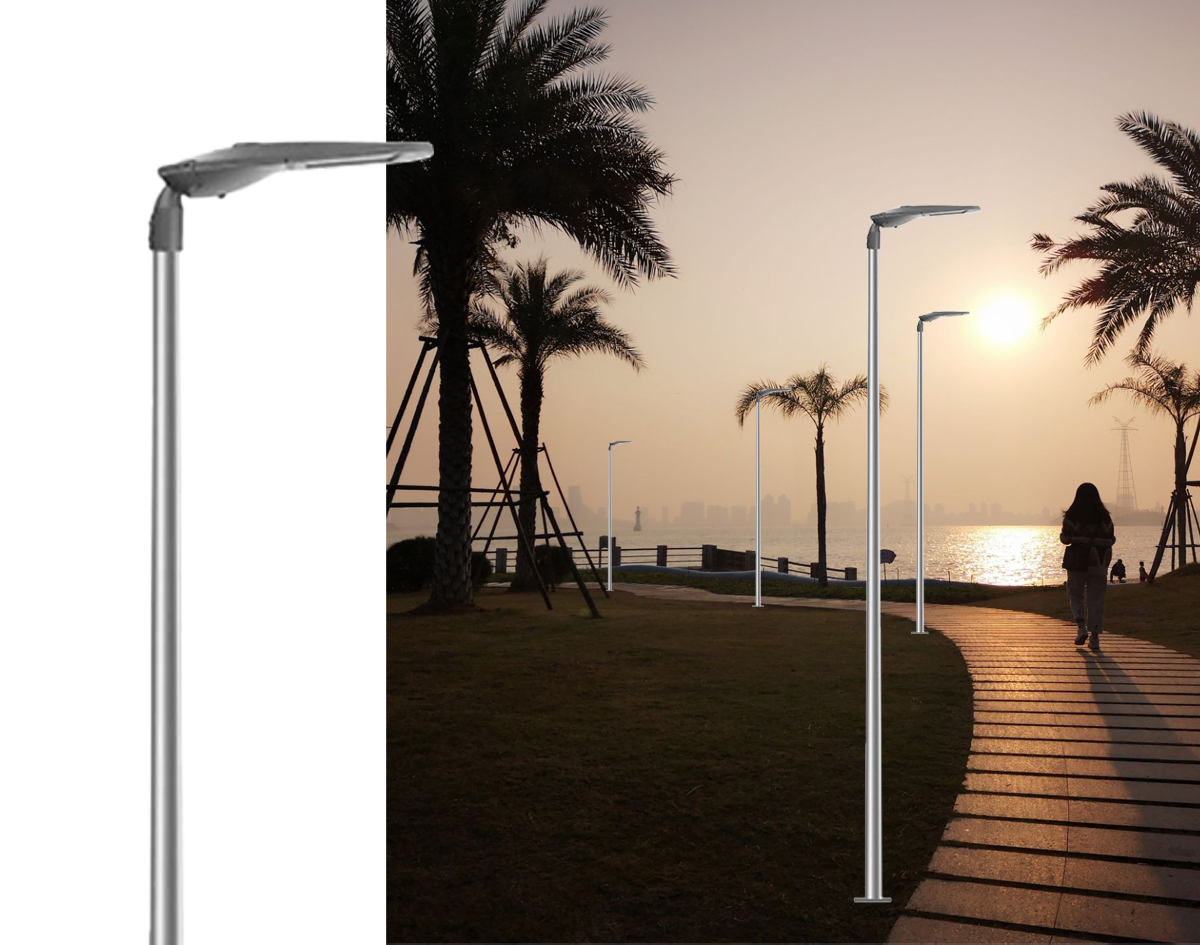

Introducing the customized LED street light pole, an innovative lighting solution combining durability, functionality, and energy efficiency. This LED street light pole is designed to provide excellent lighting for public areas such as city streets, parking lots, and sidewalks. It is the perfect solution for lighting in urban environments, providing pedestrians and motorists with a greater sense of safety.
LED street light poles can withstand harsh weather conditions and the rigors of public places. Made of high-quality steel, the pole is strong, and corrosion-resistant. The material used to make the light pole makes it eco-friendly, recyclable, and durable.
Pole-mounted LED lights are highly efficient and can provide bright, even lighting over a large area, making them ideal for use in public spaces. Lamps last long, reduce maintenance and replacement costs, and are energy efficient, reducing energy consumption and costs in the long run.
LED street light poles enhance the aesthetics of any public space with a sleek and modern design. The pole comes in a range of different colors, so it can blend seamlessly with your desired environment. Furthermore, it comes in different heights and configurations and can be customized to your specific requirements.
One of the most notable advantages of LED street light poles is the ease of installation. Unlike traditional street light poles that require heavy machinery and time-consuming installation procedures, this light pole can be easily installed with just a few people. The installation process is quick and easy with minimal disturbance to the surrounding area.
In addition, the LED street light pole is easy to maintain; it requires minimal maintenance and can be installed with an integrated control system that supports remote monitoring. These systems enable you to receive updates on the performance of your rods, allowing you to take appropriate action when required.
In conclusion, LED street light pole is a strong, energy-efficient, and cost-effective lighting solution ideal for use in public places. This pole is designed to provide superior lighting, withstand harsh weather conditions, and enhance the aesthetics of any space. With its easy installation, low maintenance, and energy-efficient design, this pole is the perfect choice for any public lighting project.
Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | |||||||
Height | 4M | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
Dimensions(d/D) | 60mm/140mm | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
Thickness | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
Flange | 260mm*12mm | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
Tolerance of dimension | ±2/% | |||||||
Minimum yield strength | 285Mpa | |||||||
Max ultimate tensile strength | 415Mpa | |||||||
Anti-corrosion performance | Class II | |||||||
Against earthquake grade | 10 | |||||||
Color | Customized | |||||||
Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | |||||||
Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | |||||||
Arm Type | Customized: single arm,double arms,triple arms,four arms | |||||||
Stiffener | With big size to strength the pole to resist the wind | |||||||
Powder coating | Thickness of powder coating>100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance.Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). | |||||||
Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | |||||||
Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | |||||||
Hot-Dip Galvanized | Thickness of hot-galvanized>80um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | |||||||
Anchor bolts | Optional | |||||||
Material | Aluminium,SS304 is available | |||||||
Passivation | Available |
1. Q: Are you a factory or trading company?
A: We are a factory.
In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.
2. Q: What's your main product?
A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.
3. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
4. Q: What's your shipping way?
A: By air or sea ship are available.
5. Q: Do you have OEM/ODM service?
A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
