Cross Arm LED Street Light Pole For Highway Lighting

Short Description:

DOWNLOAD
RESOURCES

Product Detail

Product Tags

Product Description

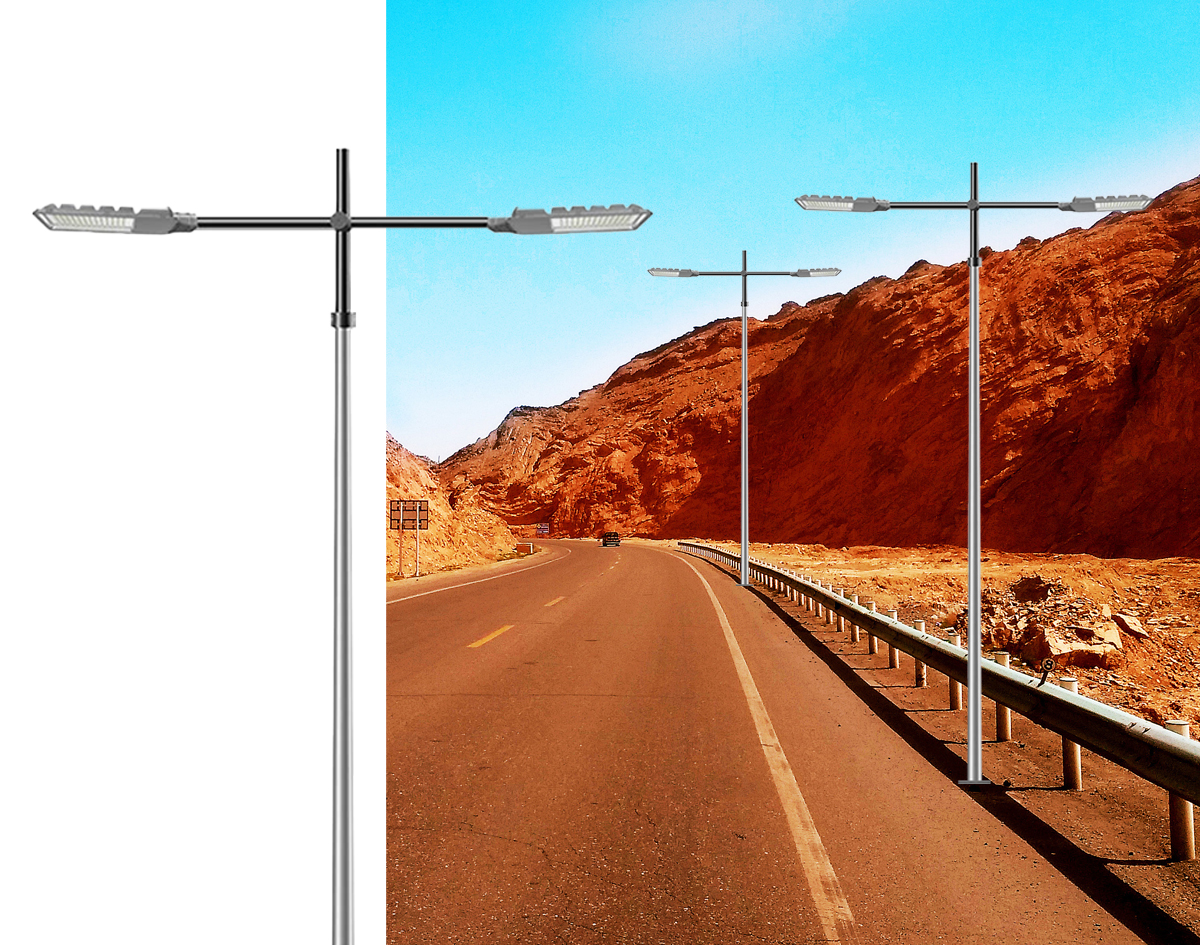

Introducing the latest addition to our Light Pole range, the Cross Arm LED Light Pole for Highway Lighting. This innovative product is designed to provide efficient and reliable lighting for highways and other public areas.

Made from high-quality materials, this LED street light pole can withstand harsh environmental conditions, making it ideal for use in areas with extreme temperatures or exposure to corrosive elements. Its cross-arm design distributes light better, ensuring that every corner of the street is well-lit and visible to drivers and pedestrians alike.

The impressive height of this light pole accommodates a range of LED lighting fixtures. Due to its advanced design, it is not only energy efficient but also has a long service life, reducing the need for frequent replacement and maintenance.

The LED lights used in this product are high quality and designed to provide bright, clear illumination without glare or other distractions. This makes driving on the highway easier and safer for drivers, regardless of weather and visibility.

Additionally, the Cross Arm LED Street Light Pole is easy to install and comes with all the necessary hardware and tools needed to install it. This means you can have it up and running in no time and start benefiting from its reliable lighting and energy saving features.

All in all, the Cross Arm LED Light Pole for Highway Lighting is an excellent product combining durability, reliability and efficiency to provide high quality, bright and clear lighting for public areas. Its innovative design ensures that it is easy to install and maintain, making it the perfect choice for cities, towns and other public areas looking to improve their lighting systems and reduce energy consumption. Order today and experience the difference of our high quality LED street light poles.

Technical Data

Material	Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Height	5M	6M	7M	8M	9M	10M	12M
Dimensions(d/D)	60mm/150mm	70mm/150mm	70mm/170mm	80mm/180mm	80mm/190mm	85mm/200mm	90mm/210mm
Thickness	3.0mm	3.0mm	3.0mm	3.5mm	3.75mm	4.0mm	4.5mm
Flange	260mm*14mm	280mm*16mm	300mm*16mm	320mm*18mm	350mm*18mm	400mm*20mm	450mm*20mm
Tolerance of dimension	±2/%
Minimum yield strength	285Mpa
Max ultimate tensile strength	415Mpa
Anti-corrosion performance	Class II
Against earthquake grade	10
Color	Customized
Surface treatment	Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II

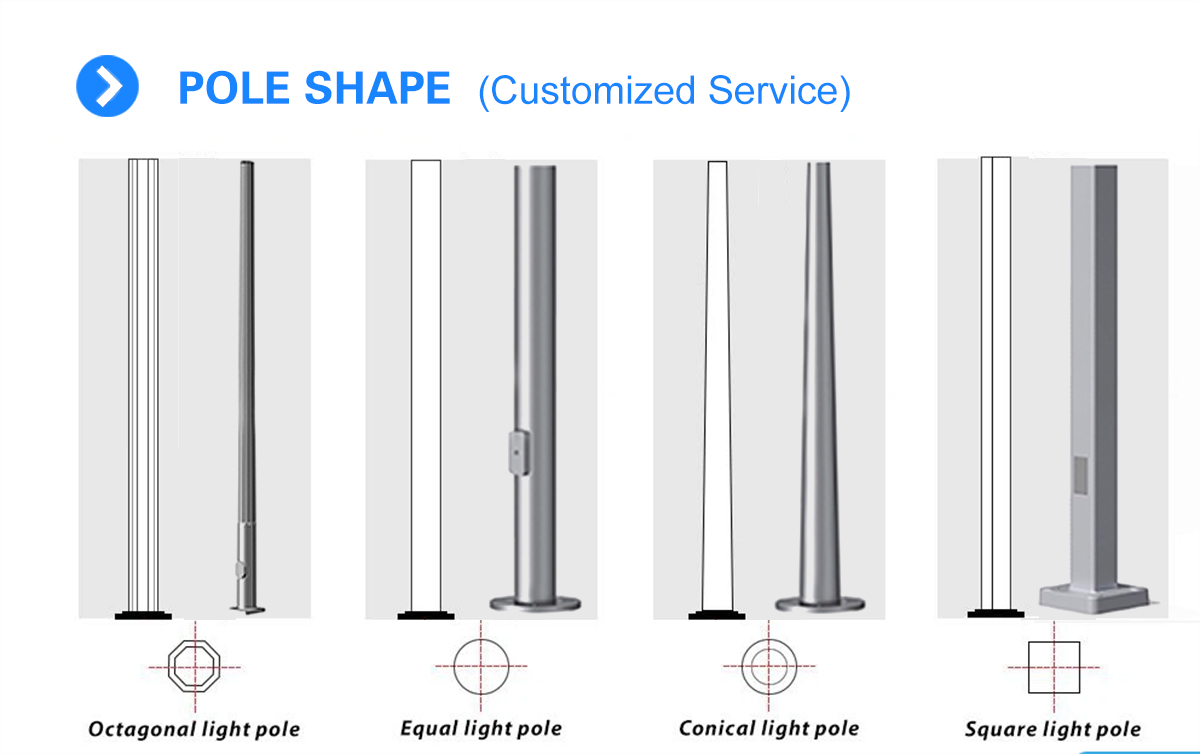

Shape Type	Conical pole, Octagonal pole, Square pole, Diameter pole
Arm Type	Customized: single arm, double arms, triple arms, four arms
Stiffener	With a big size to strengthen the pole to resist the wind
Powder coating	Thickness of powder coating is 60-100um. Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance	According to local weather conditions, the General design strength of wind resistance is ≥150KM/H
Welding Standard	No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized	Thickness of hot-galvanized is 60-100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. The designed life of the pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after the maul test.
Anchor bolts	Optional
Passivation	Available
