TXGL-A | |||||
Model | L(mm) | W(mm) | H(mm) | ⌀(mm) | Weight(Kg) |
A | 500 | 500 | 478 | 76~89 | 9.2 |
Model Number |
TXGL-A |
Chip Brand |
Lumileds/Bridgelux |
Driver Brand |
Philips/Meanwell |
Input Voltage |
AC90~305V, 50~60hz/DC12V/24V |
Luminous Efficiency |
160lm/W |
Color Temperature |
3000-6500K |
Power Factor |
>0.95 |
CRI |
>RA80 |
Material |
Die Cast Aluminium Housing |
Protection Class |
IP66, IK09 |
Working Temp |
-25 °C~+55 °C |
Certificates |
CE, ROHS |
Life Span |
>50000h |
Warranty: |
5 Years |

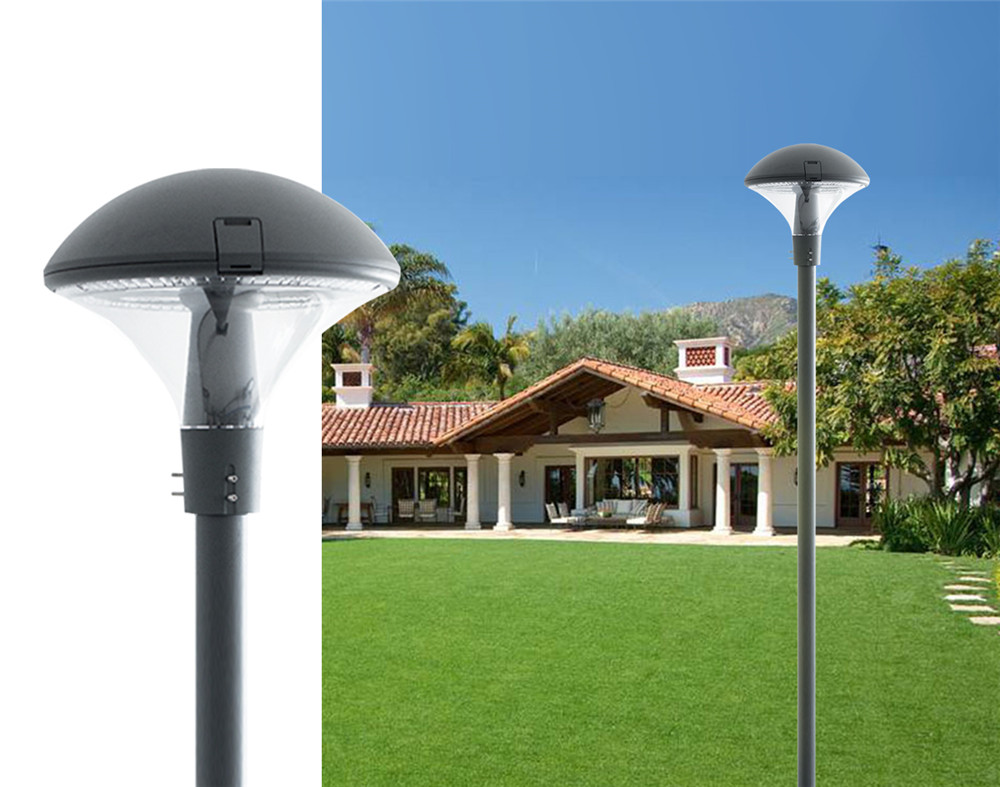

The purpose of lighting the courtyard is to enrich people's aesthetic sentiment and enhance the charm of the city's night scene. Therefore, the garden lamp post lighting project should reflect the three-dimensional sense of the courtyard through appropriate lighting methods according to the characteristics of the courtyard, show the morphological characteristics of the courtyard with lights, and select lighting elements and suitable lighting methods according to the characteristics of different courtyard structures performance object. The expression method combining illumination and color gives people a sense of comfort and artistic appeal.
1. The grounding of the garden lamp post needs to be strictly paid attention to. The metal column and the lamp can be close to the bare conductor and should be connected to the PEN wire reliably. The grounding wire should be provided with a single trunk line. Two places are connected with the main line of the grounding device.
2. Power-on trial run After the lamps are installed and passed the insulation test, the power-on trial run is allowed. After power-on, carefully check and inspect the garden light pole to check whether the control of the lamps is flexible and accurate; whether the switch and the control sequence of the lamps are corresponding. If any problem is found, the power should be cut off immediately, and the cause should be found out and repaired.
1. Do not hang items on the landscape light pole, which will greatly reduce the life of the garden light;
2. It is necessary to check whether the lamp tube is aging and replace it in time. If it is found during the inspection that the two sections of the lamp tube have turned red, the lamp tube has turned black or there are shadows, etc., it proves that the lamp tube has begun to age. The replacement of the lamp tube must be carried out according to the light source parameters provided by the sign;
3. Do not switch frequently, otherwise it will greatly reduce the service life of the garden light.

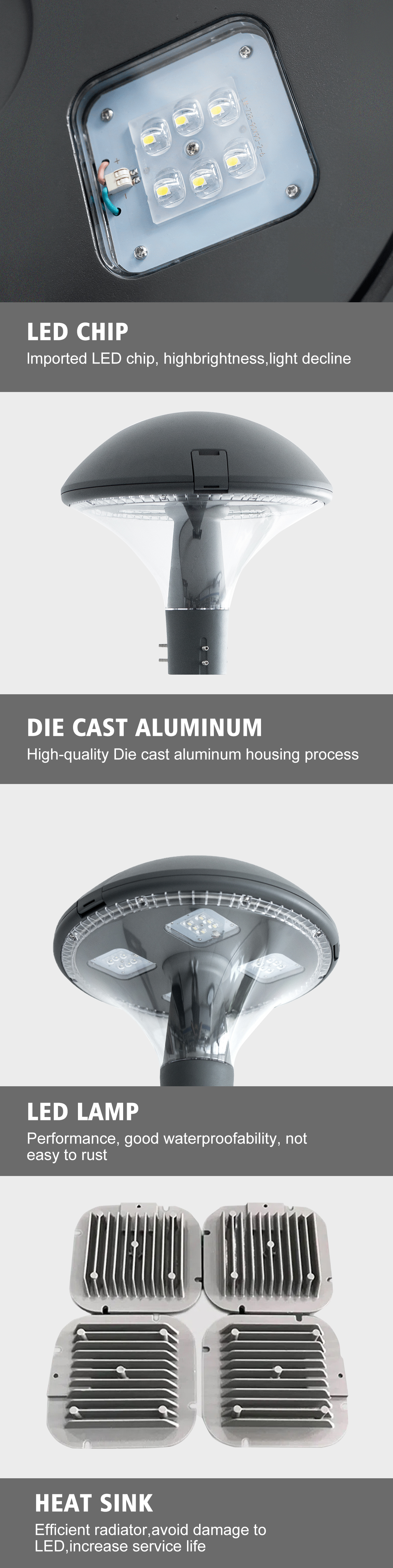

1. Our high-quality LED garden lights are designed to illuminate outdoor spaces with efficiency and style. The die-cast aluminum housing ensures durability and longevity, making these lights suitable for various weather conditions. The robust construction also provides excellent heat dissipation, ensuring the longevity of the LEDs and maintaining consistent performance.
2. Our lights are engineered to highlight outdoor landscapes without any flicker, providing a steady and comfortable illumination that enhances the beauty of gardens, pathways, and outdoor living areas. The LED technology used in our garden lights offers energy efficiency and a long lifespan, reducing the need for frequent replacements and minimizing maintenance costs.
3. We are confident in the reliability of our products, which is why we offer a generous 3-year warranty, providing our customers with peace of mind and assurance of quality. This warranty reflects our commitment to delivering long-lasting and dependable lighting solutions for outdoor environments.
4. Whether you're looking to enhance the aesthetics of your garden or improve the safety and security of outdoor spaces, our LED garden lights with die-cast aluminum housing, flicker-free illumination, and a 3-year warranty are the ideal choice.
