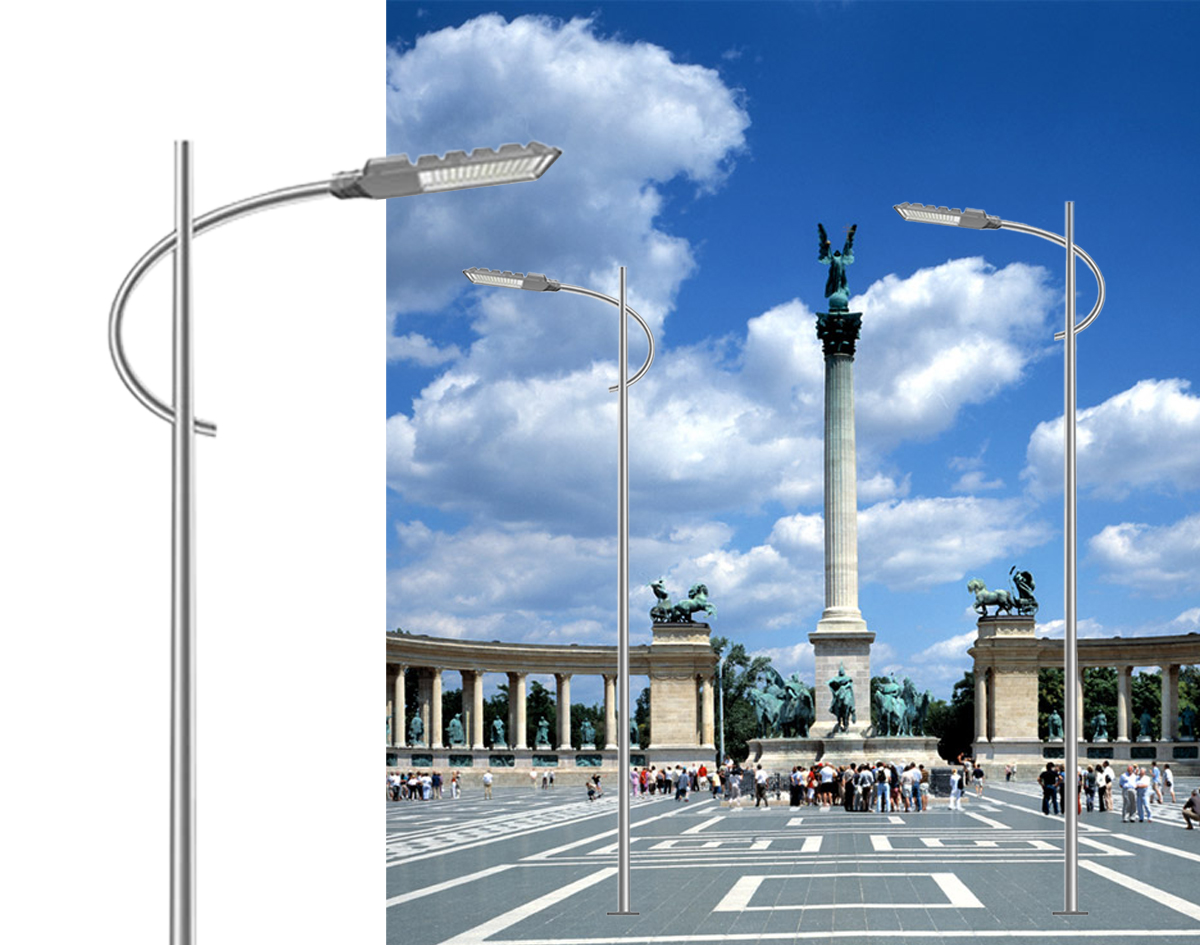

Aluminium Waterproof IP65 Pole

Short Description:

Constructed from the highest quality aluminum material, an aluminum street light pole offers durability, strength, and versatility unmatched on the market.


  • facebook (2)
  • youtube (1)

DOWNLOAD
RESOURCES

Product Detail

Product Tags

Aluminium Waterproof IP65 Pole

Technical Data

Height 5M 6M 7M 8M 9M 10M 12M
Dimensions(d/D) 60mm/150mm 70mm/150mm 70mm/170mm 80mm/180mm 80mm/190mm 85mm/200mm 90mm/210mm
Thickness 3.0mm 3.0mm 3.0mm 3.5mm 3.75mm 4.0mm 4.5mm
Flange 260mm*14mm 280mm*16mm 300mm*16mm 320mm*18mm 350mm*18mm 400mm*20mm 450mm*20mm
Tolerance of dimension ±2/%
Minimum yield strength 285Mpa
Max ultimate tensile strength 415Mpa
Anti-corrosion performance Class II
Against earthquake grade 10
Color Customized
Shape Type Conical pole, Octagonal pole, Square pole, Diameter pole
Arm Type Customized: single arm, double arms, triple arms, four arms
Stiffener With a big size to strengthen the pole to resist the wind
Powder coating Thickness of powder coating>100um.Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance According to local weather conditions, the General design strength of wind resistance is ≥150KM/H
Welding Standard No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Anchor bolts Optional
Material Aluminium
Passivation Available

Product Description

What sets our aluminum street light poles apart is the unique properties of aluminum as a material. Aluminum is known for its light weight, making it easy to handle and install. Despite its lightness, aluminum is extremely strong and can withstand harsh weather conditions, including rain, wind, and even extreme temperatures. Unlike other materials, aluminum is rust-resistant, ensuring our light poles will retain their pristine appearance even after years of outdoor use. Additionally, aluminum has excellent corrosion resistance, making it ideal for areas with high humidity or coastal locations.

Another outstanding feature of our aluminum street light pole is its excellent energy efficiency. Aluminum has excellent thermal conductivity, which can effectively dissipate heat, prevent overheating, and extend the life of lighting fixtures. In addition, the reflective surface of aluminum enhances the brightness and spread of light, ensuring maximum illumination and better visibility of roads, parks, and public spaces.

Our aluminum street light poles come in a variety of designs and finishes, allowing you to choose the perfect style that complements your surroundings. Whether it's a modern, sleek look or a more traditional aesthetic, our light poles blend easily into any urban or rural landscape.

Plus, our aluminum street light poles offer unrivaled sustainability benefits. Aluminum is an infinitely recyclable material, ensuring minimal waste and a reduced environmental impact. By choosing our light poles, you can contribute to a greener, more environmentally friendly future.

Customization

Customization options
shape

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.

2. Q: What's your main product?

A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.

3. Q: How long is your lead time?

A: 5-7 working days for samples; around 15 working days for bulk order.

4. Q: What's your shipping way?

A: By air or sea ship are available.

5. Q: Do you have OEM/ODM service?

A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
