Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | |||||||
Height | 4M | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
Dimensions(d/D) | 60mm/140mm | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
Thickness | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
Flange | 260mm*12mm | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
Tolerance of dimension | ±2/% | |||||||
Minimum yield strength | 285Mpa | |||||||
Max ultimate tensile strength | 415Mpa | |||||||
Anti-corrosion performance | Class II | |||||||
Against earthquake grade | 10 | |||||||
Color | Customized | |||||||
Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | |||||||
Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | |||||||
Arm Type | Customized: single arm,double arms,triple arms,four arms | |||||||
Stiffener | With big size to strength the pole to resist the wind | |||||||
Powder coating | Thickness of powder coating>100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance.Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). | |||||||
Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | |||||||
Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | |||||||
Hot-Dip Galvanized | Thickness of hot-galvanized>80um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | |||||||
Anchor bolts | Optional | |||||||
Passivation | Available |

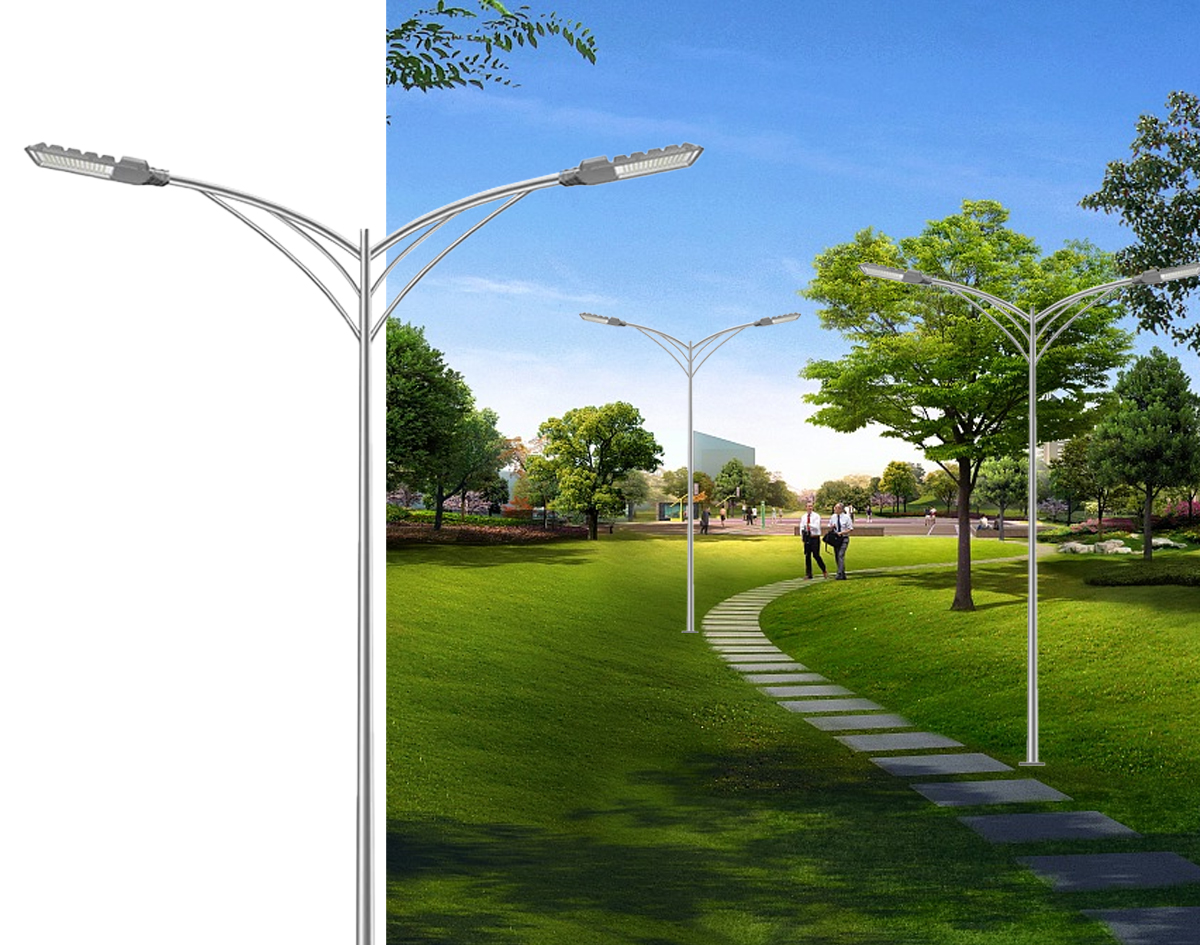

Introducing our octagonal street light pole, an innovative and efficient urban landscape lighting solution. The poles are designed to revolutionize the way cities are illuminated, providing brighter, more evenly distributed light while enhancing the overall aesthetic of the street. With an array of great features, our octagonal street light poles will become the new standard in urban lighting.
At the heart of our octagonal street light pole is its unique design. Made from high-quality materials, these poles are built to withstand the harshest weather conditions, ensuring long-lasting durability. Their octagonal shape not only adds a touch of elegance to the urban landscape but also increases their structural strength, allowing them to withstand strong winds and other external forces. Ideal for urban planners and designers, our octagonal street light poles have a sleek, modern look that blends seamlessly with any architectural style.
One of the standout features of our octagonal street light pole is its exceptional lighting ability. Equipped with state-of-the-art LED technology, these poles provide unparalleled brightness and illumination. The carefully designed light distribution system ensures that the light is evenly distributed on the street, eliminating any dark spots and improving the visibility of pedestrians and drivers. With customizable lighting options, cities can now tailor the intensity and color temperature of lights to meet their specific requirements, creating a comfortable and safe environment for everyone.
Our octagonal street light poles are not only functional and efficient; they are also energy efficient. They are designed to consume less electricity than traditional lighting solutions, helping cities reduce their carbon footprint and save on energy costs. The integration of intelligent lighting controls allows automatic dimming and scheduling, further optimizing energy consumption. With superior energy efficiency, our octagonal light poles are an environmentally friendly choice that can contribute to a more sustainable future for cities.
Our octagonal street light poles make installation and maintenance hassle-free. We designed these poles to be easy to assemble, reducing the time and effort required for installation. Additionally, their modular design allows for easy replacement and upgrade of individual components, minimizing maintenance costs and extending the life of the pole. With simplified installation and maintenance processes, cities can quickly adopt our octagonal light poles and reap the benefits.
In conclusion, our octagonal street light poles provide a comprehensive solution for urban lighting needs. From elegant and durable design to superior lighting performance and energy efficiency, these poles are the epitome of innovation in the lighting industry. With their ability to improve visibility, ensure safety and reduce environmental impact, our octagonal light poles are the perfect choice for cities aspiring to create vibrant and sustainable urban environments. Experience the future of street lighting with our octagonal light poles and transform your cityscape today.
Our octagonal street light pole design is classic and elegant, which can enhance the visual appeal of the street or installation area.
The octagonal shape provides greater strength and stability, making it suitable to withstand harsh weather conditions and ensuring a longer service life.
Our octagonal street light poles can accommodate a variety of lighting fixtures and accessories, making them suitable for different types of street lighting applications.
Our octagonal street light poles can be customized in height, color, and finish to meet specific project requirements and aesthetic preferences.
Our octagonal street light poles are cost-effective in the long run due to their low maintenance requirements and long service life.
