8m 9m 10m Galvanized Steel Electric Pole
DOWNLOAD
RESOURCES
Description
Galvanized steel electric poles are supporting structures for assembling electric wires. They are mainly made of steel and are galvanized to improve their corrosion resistance and service life. The galvanizing process usually uses hot-dip galvanizing to cover the surface of the steel with a zinc layer to form a protective film to prevent the steel from oxidation and corrosion.
Technical Data
| Product Name | 8m 9m 10m Galvanized Steel Electric Pole | ||
| Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||
| Height | 8M | 9M | 10M |
| Dimensions(d/D) | 80mm/180mm | 80mm/190mm | 85mm/200mm |
| Thickness | 3.5mm | 3.75mm | 4.0mm |
| Flange | 320mm*18mm | 350mm*18mm | 400mm*20mm |
| Tolerance of dimension | ±2/% | ||
| Minimum yield strength | 285Mpa | ||
| Max ultimate tensile strength | 415Mpa | ||
| Anti-corrosion performance | Class II | ||
| Against earthquake grade | 10 | ||
| Color | Customized | ||
| Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||
| Stiffener | With a big size to strengthen the pole to resist the wind | ||
| Wind Resistance | According to local weather conditions, the General design strength of wind resistance is ≥150KM/H | ||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||
| Hot-Dip Galvanized | Thickness of hot-galvanized is 60-80 um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. The designed life of the pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after the maul test. | ||
| Anchor bolts | Optional | ||
| Material | Aluminium,SS304 is available | ||
| Passivation | Available | ||

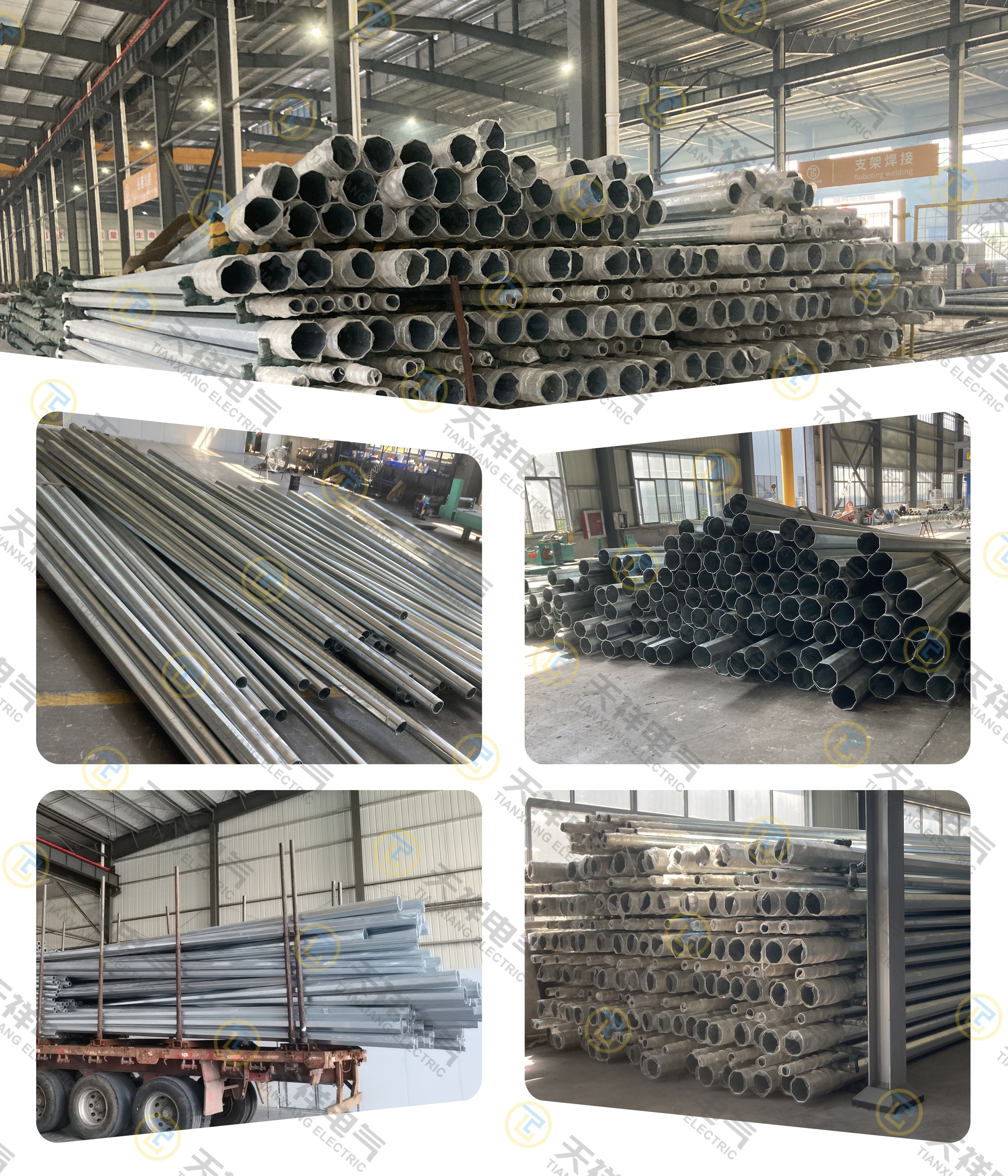

Product Show

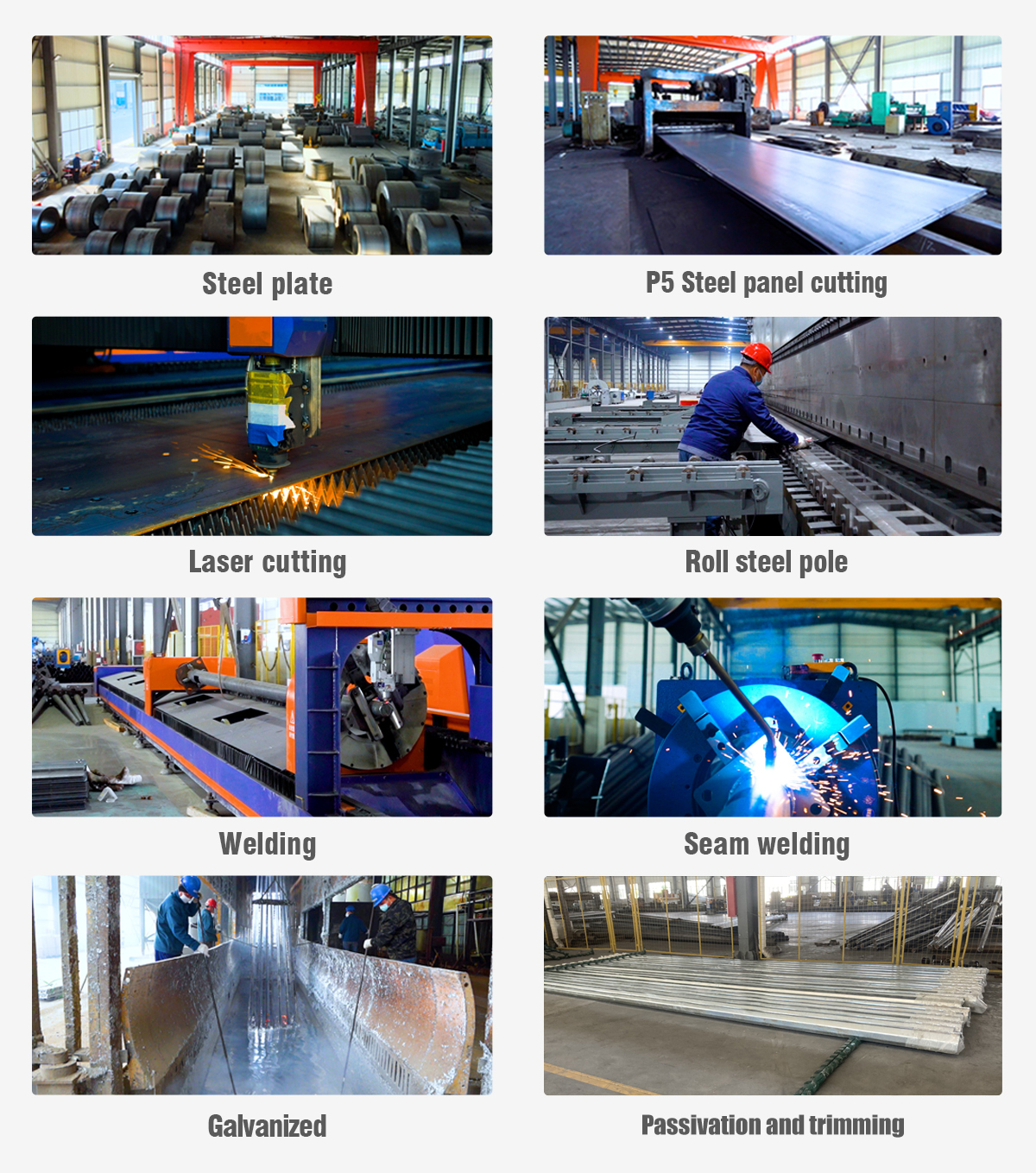

Manufacturing Process
Our Exhibition
Our Certifications
FAQ
1. Q: Are you a trading company or a manufacturer?
A: Our company is a very professional and technical manufacturer of light pole products. We have more competitive prices and the best after-sales service. In addition, we also provide customized services to meet the needs of customers.
2. Q: Can you deliver on time?
A: Yes, no matter how the price changes, we guarantee to provide the best quality products and timely delivery. Integrity is the purpose of our company.
3. Q: How can I get your quotation as soon as possible?
A: Email and fax will be checked within 24 hours and will be online within 24 hours. Please tell us the order information, quantity, specifications (steel type, material, size), and destination port, and you will get the latest price.
4. Q: What if I need samples?
A: If you need samples, we will provide samples, but the freight will be borne by the customer. If we cooperate, our company will bear the freight.
