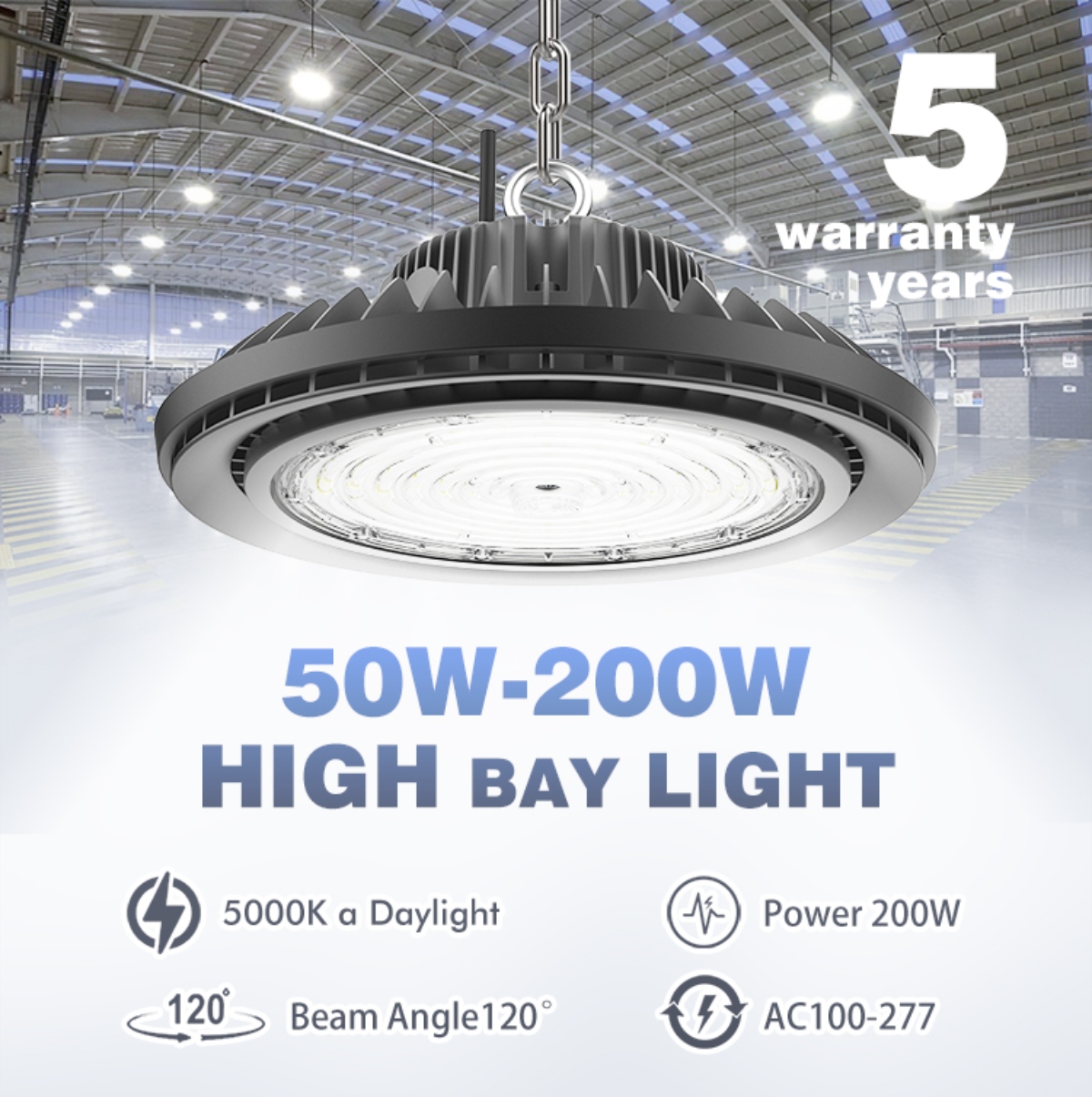

50w 100w 150w 200w Industrial LED UFO High Bay Light
DOWNLOAD
RESOURCES
Description
Product Technical Parameter
| Lamp brand | Tianxiang | |
| Brand parameters | Product certification | CCC certification, CE, ROHS certification, National Lamp Quality Center test report |
| Parameters of lamp | Power of lamp | 50w-200w |
| Protection level | IP65 | |
| Lamp body color | Regular black | |
| Warranty of lamp | Two options for three or five years | |
| Power supply brand | Philips/Ledfriend | |
| Input voltage | AC100-277V | |
| Conversion rate | 88%-93% | |
| Frequency | 50-60HZ |
| Electrical parameters | Power factor | PF≥0.98 | |
| Working voltage | DC30-48V (divide)/DC160-260V (Non divide) | ||
| Input line color | brown/red | L Fireline | |
| blue | N null line | ||
| green | G Ground wire | ||
| Light parameters | Light source brand | Philips/Osram/Cree Inc | |
| LED quantity | 64-256PCS | ||
| correlated colour temperature | Pure white 5700K/Warm white 4000K | ||
| luminous flux | 6500 -26000LM±5% | ||
| lighting effect | >130LM/W | ||
| Color rendering index | Ra＞70 | ||

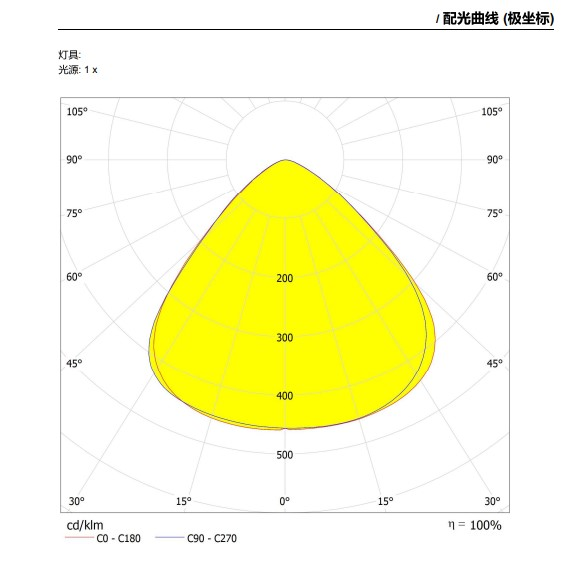

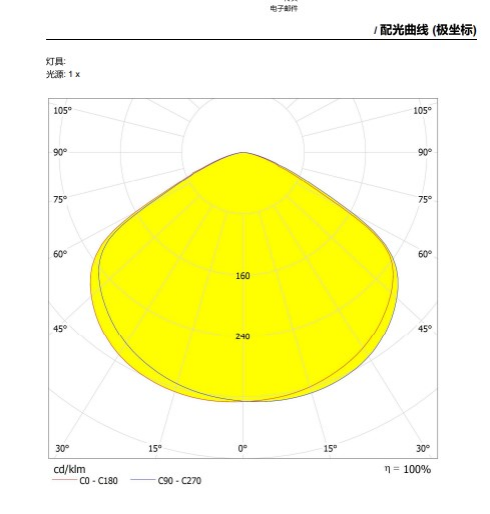

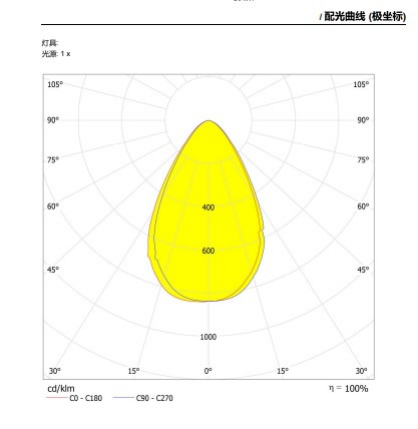

| Light distribution curve | Symmetric circular spot (3 in total) | ||
| Light distribution method | Optical lens (or reflector secondary light distribution) | ||

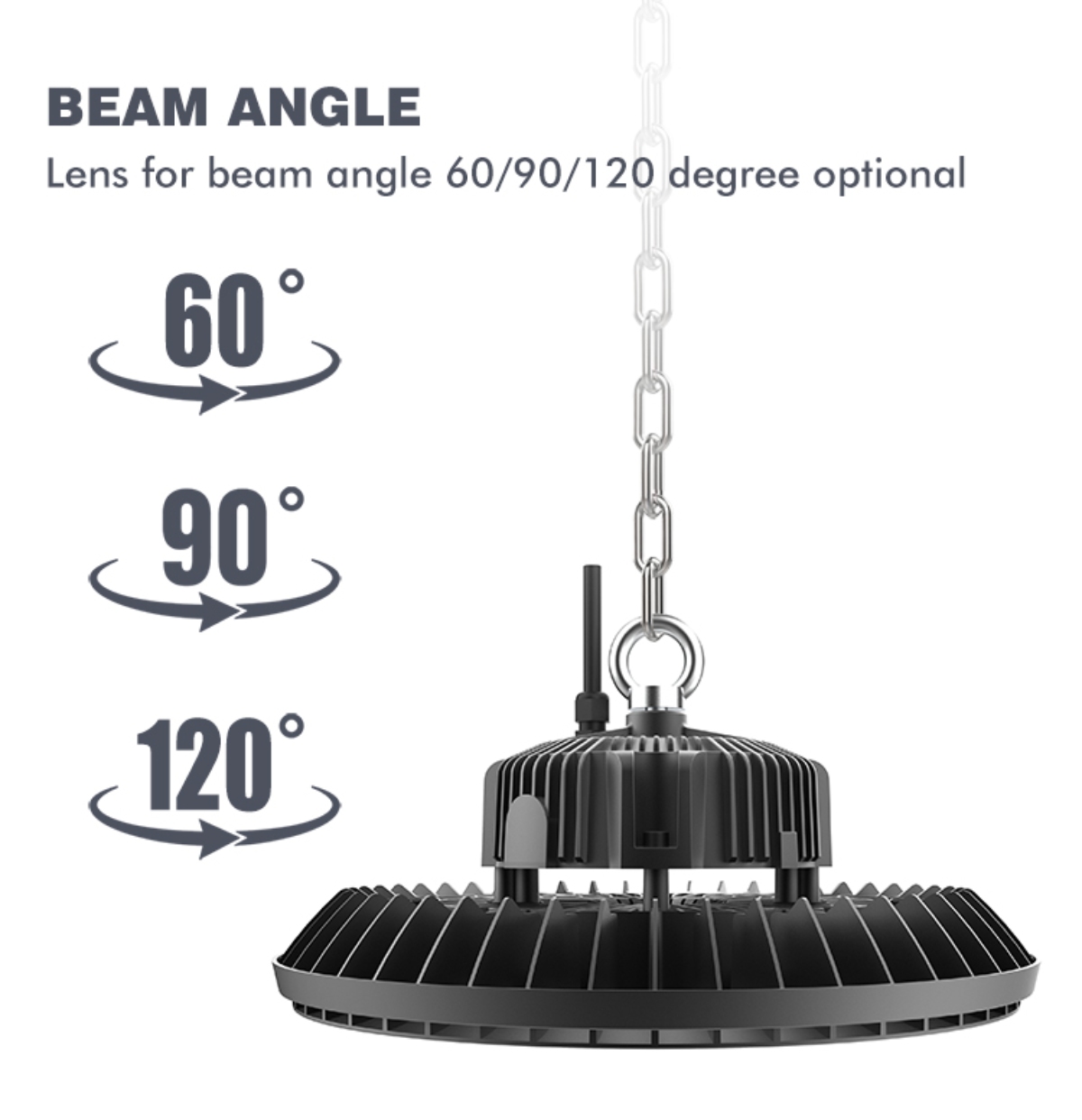

| Beam angle | 60°/90°/120° | ||
| Lighting lifespan | >50,000H | ||
| Heat dissipation parameters | radiator | Die-casting aluminum | |
| Heat dissipation method | Large area contact+air convection | ||
| Radiator size | 280*41MM--325*48MM | ||
| Environmental parameters | Working environment temperature | -40℃—+50℃ | |
| Storage environment temperature | -40℃—+65℃ | ||
| Working environment humidity | humidity≤90% | ||

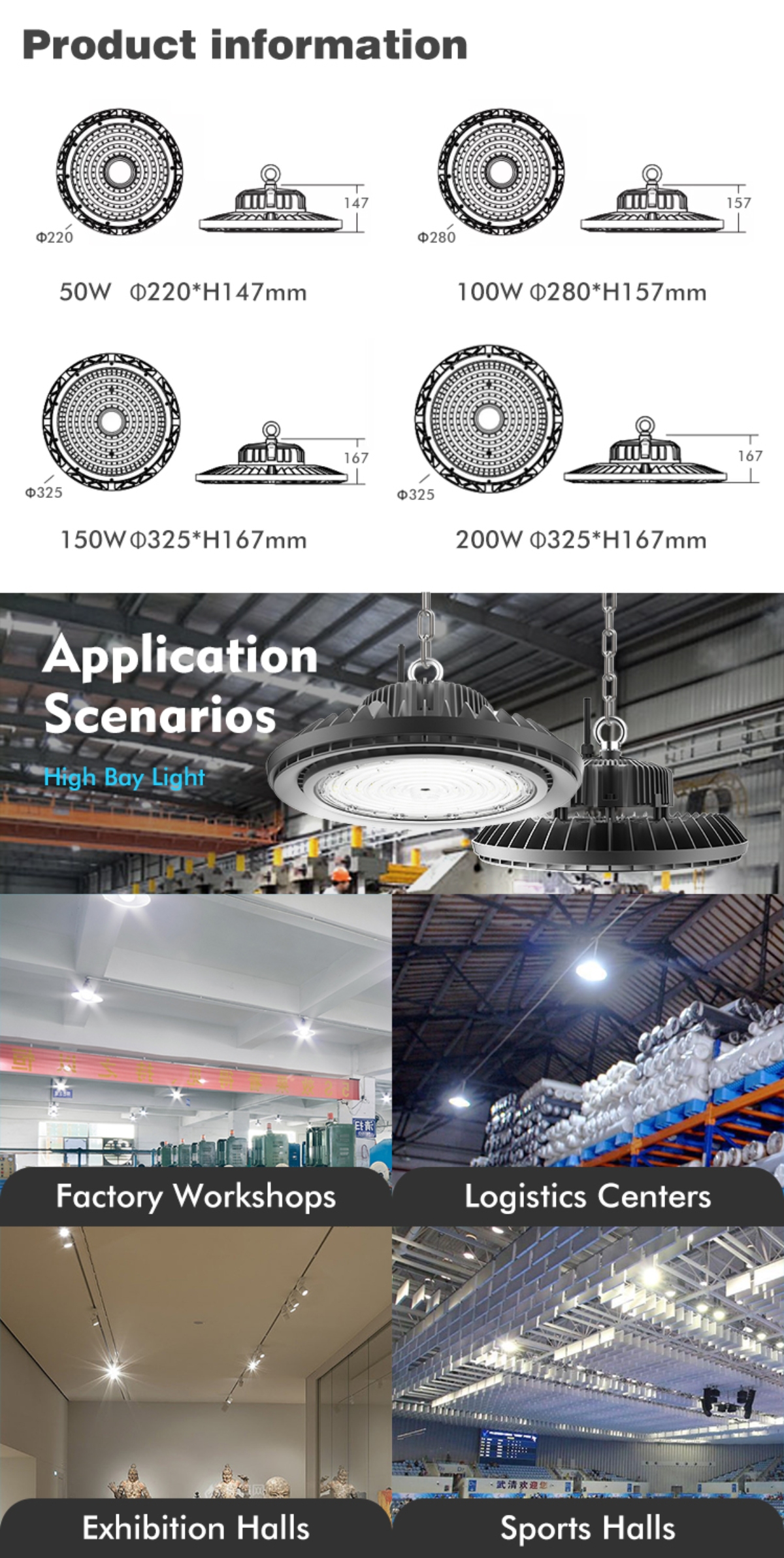

| Dimensional parameters |
Lamp body size Packaging size |
50W | Φ220*H147mm |
| 100W | Φ280*H157mm | ||
| 150W | Φ325*H167mm | ||
| 200W | Φ325*H167mm | ||
Product Information

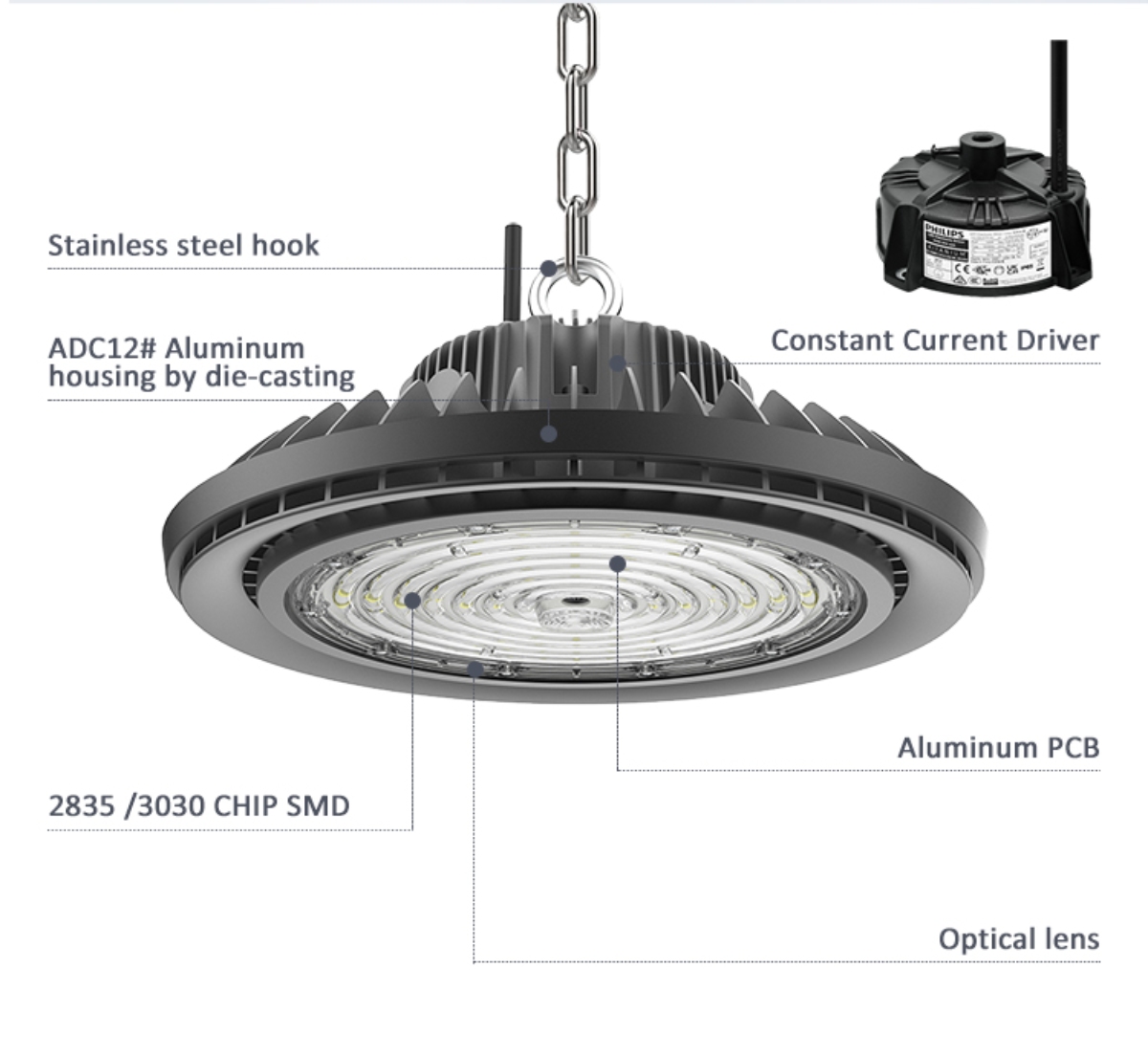

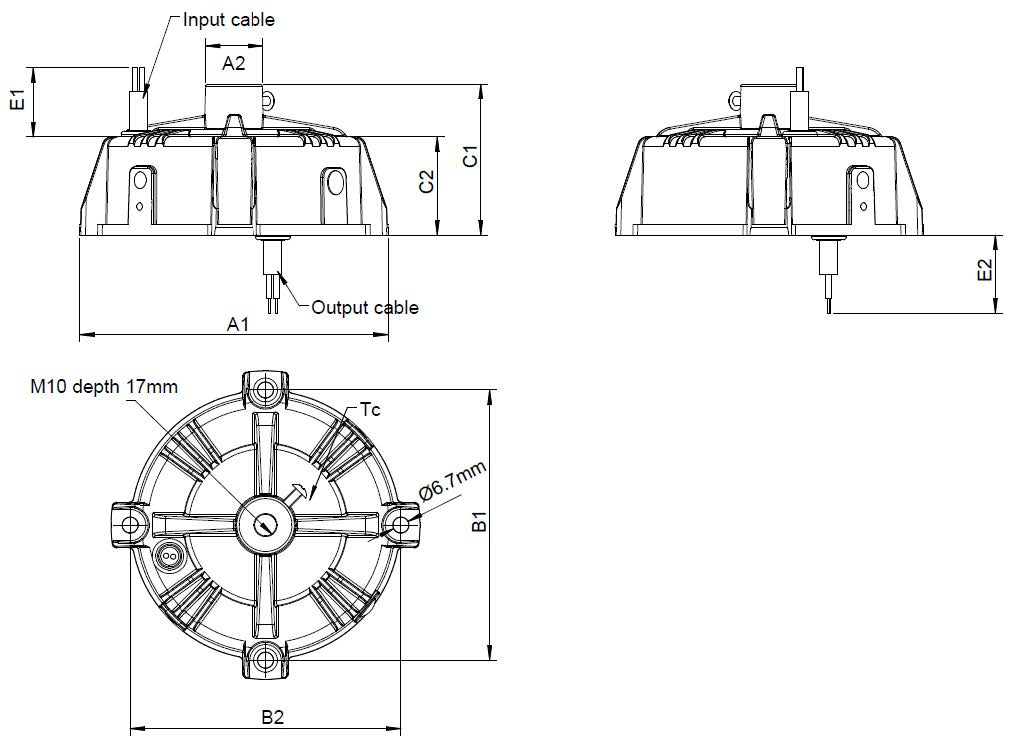

LED Driver

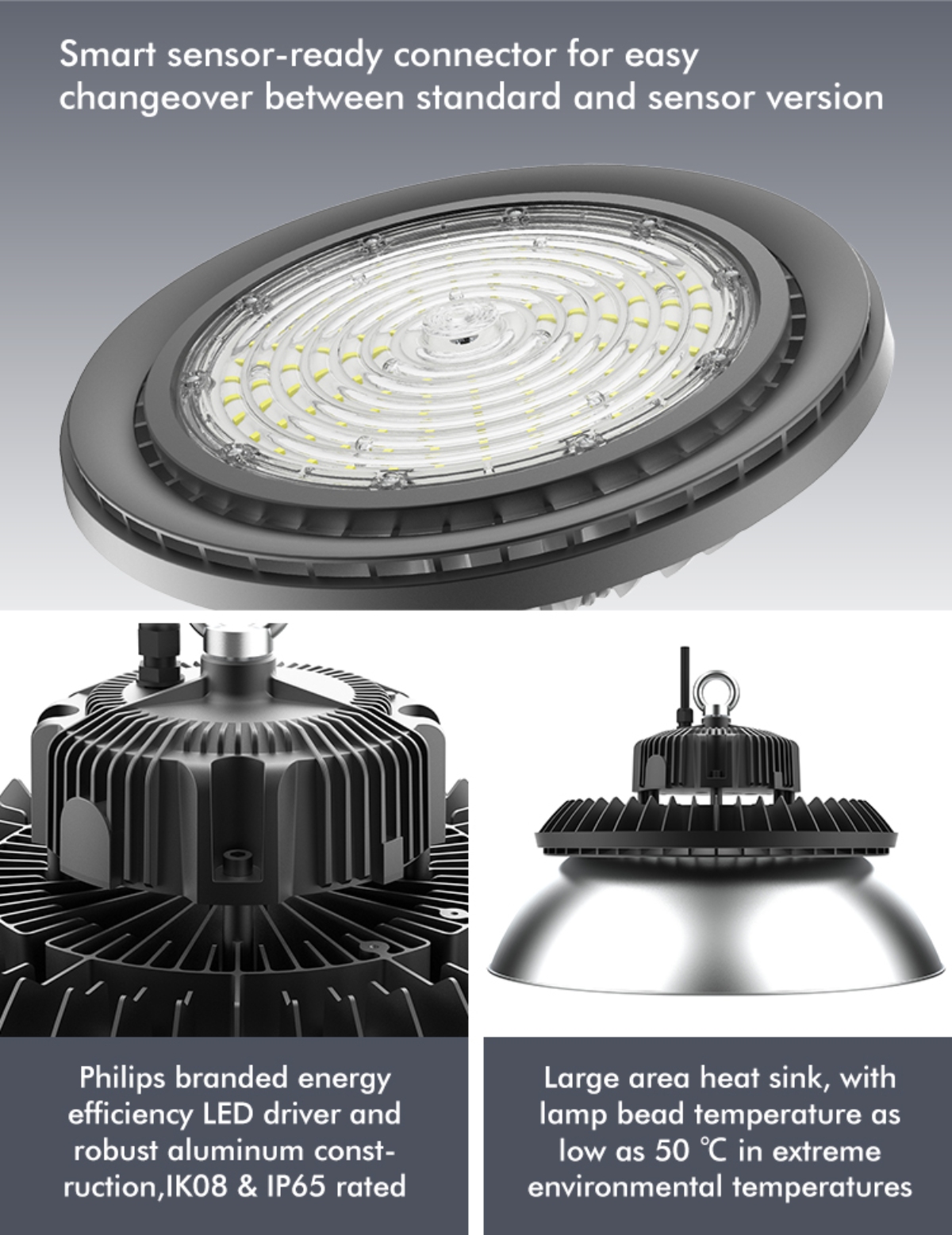

The Xitanium Round Shape High Bay LED Drivers are designed to deliver highly reliable and efficient LED drivers in industrial applications. They are long-lasting and require low maintenance. The Wide line family is an upgraded portfolio with purpose to provide more stable and reliable industry drivers to OEM customers and end-users. The product could withstand input voltage 100- 277Vac anywhere around the world and ensure 100% performance from 200-254Vac.
Installation Instructions

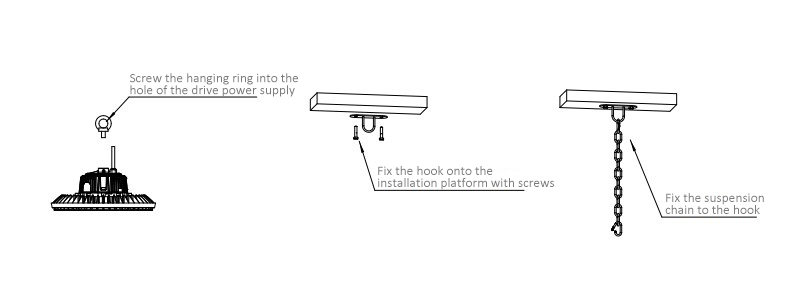

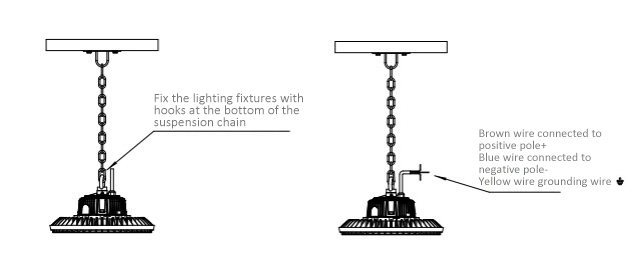

a.There are multiple installation methods for UFO high bay lights. As shown in Figure 1 (hanging chain+closed-loop suction cup) (other installation methods can be requested from the manufacturer).
b. Wiring method: Connect the brown or red wire of the lighting cable to the live wire "L" of the power supply system, the blue wire to "N", and the yellow green or yellow white wire to the ground wire,and insulated to prevent electric leakage.
c. The lighting fixtures must be grounded.
d. The installation is carried out by professional electricians (holding electrician certificates).
e. The power supply system must comply with the voltage specified on the lamp nameplate.
Packing

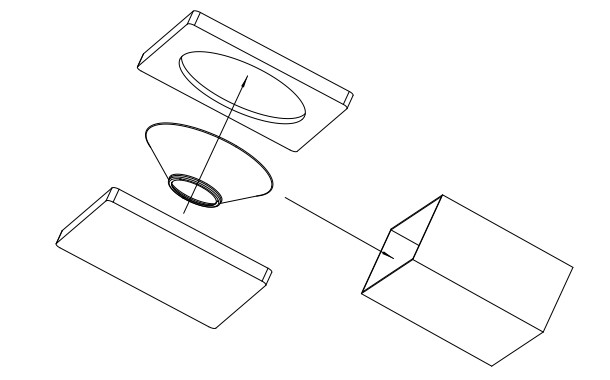

Reflector cover packaging diagram

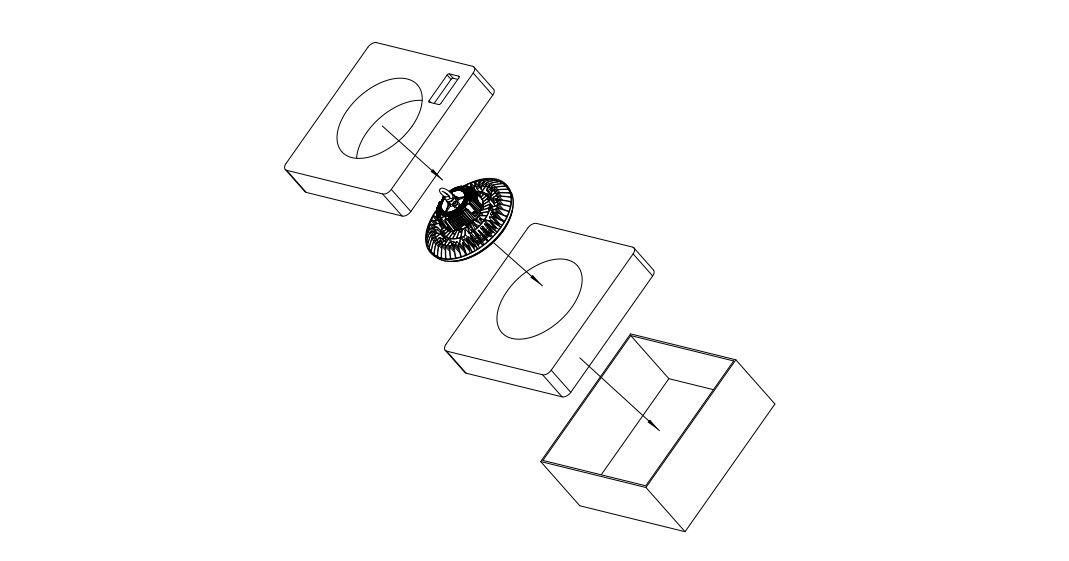

Schematic diagram of lamp body packaging
