High mast light is a kind of lighting equipment used in large places such as roads, squares, parking lots, etc. It usually has a tall lamp pole and powerful lighting ability.
1. Height:
The light pole of high mast light is generally more than 18 meters, and common designs are 25 meters, 30 meters or even higher, which can provide a wide lighting range.
2. Lighting effect:

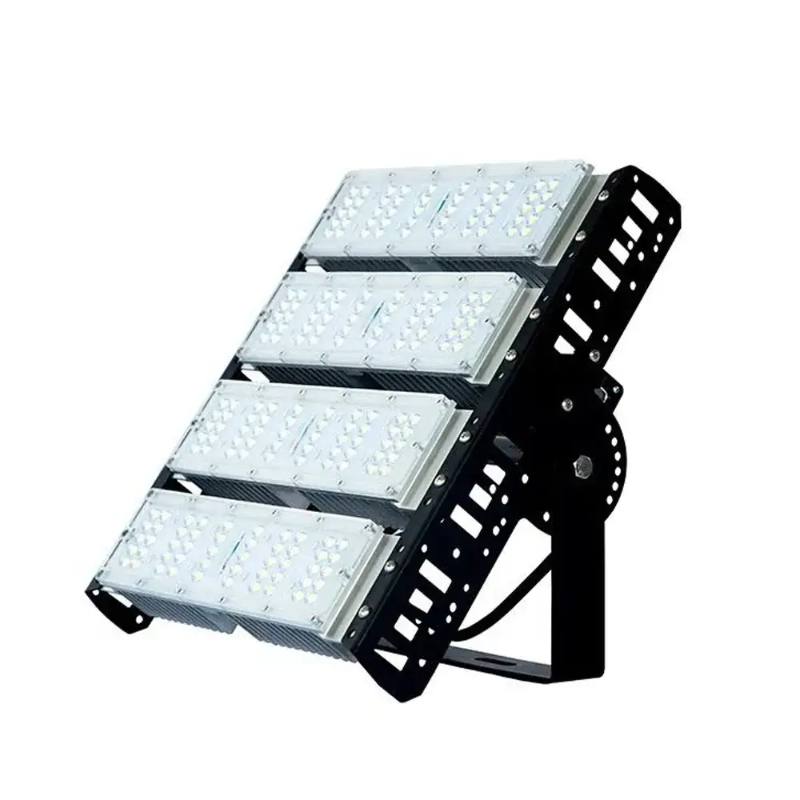

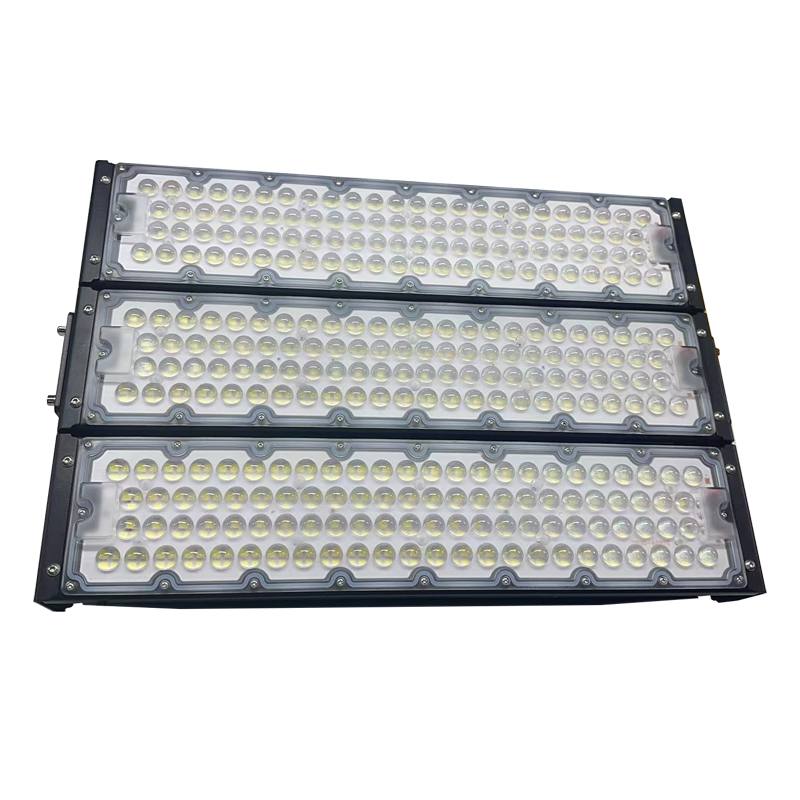

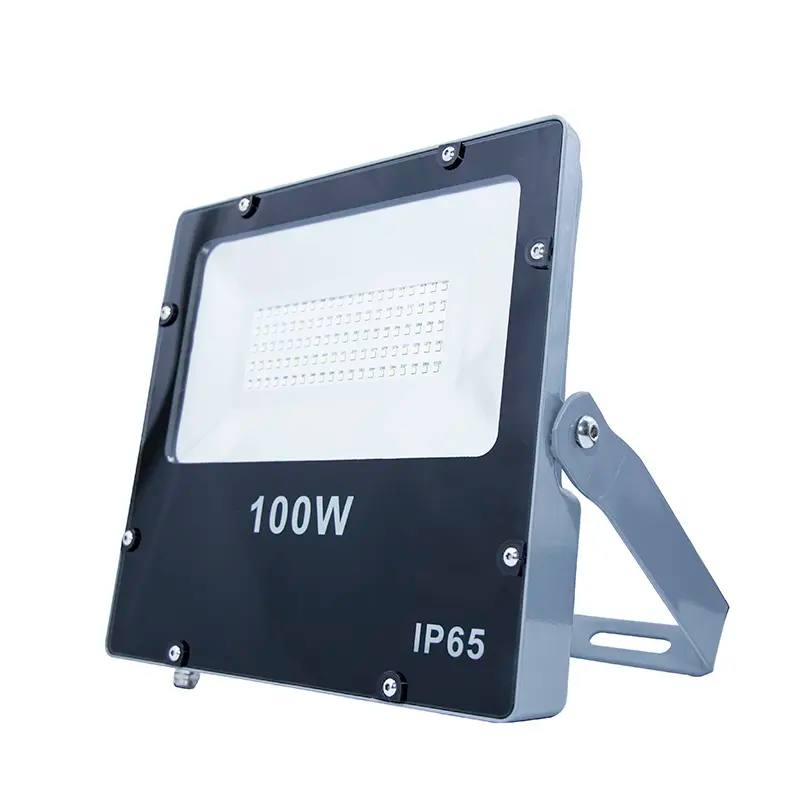

High mast lights are usually equipped with high-power lamps, such as LED floodlights, which can provide bright and uniform illumination and are suitable for large-area lighting needs.
3. Application scenarios:

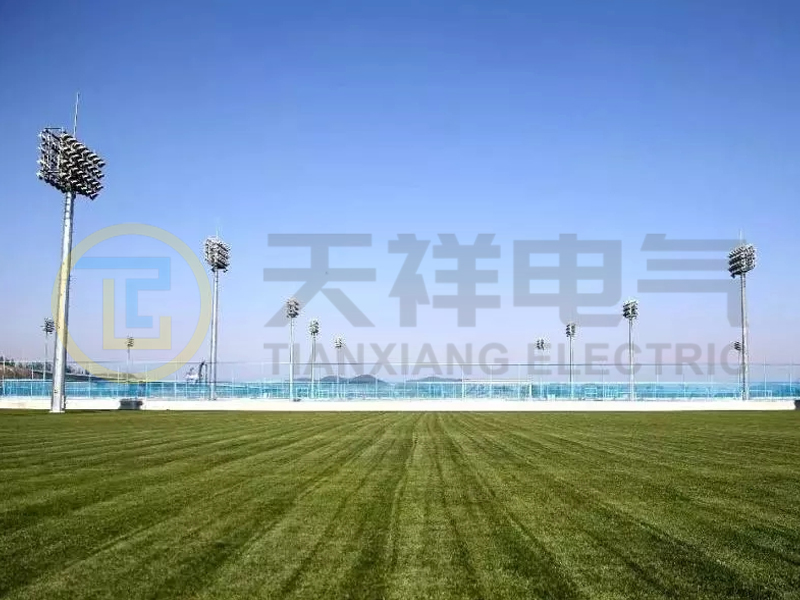

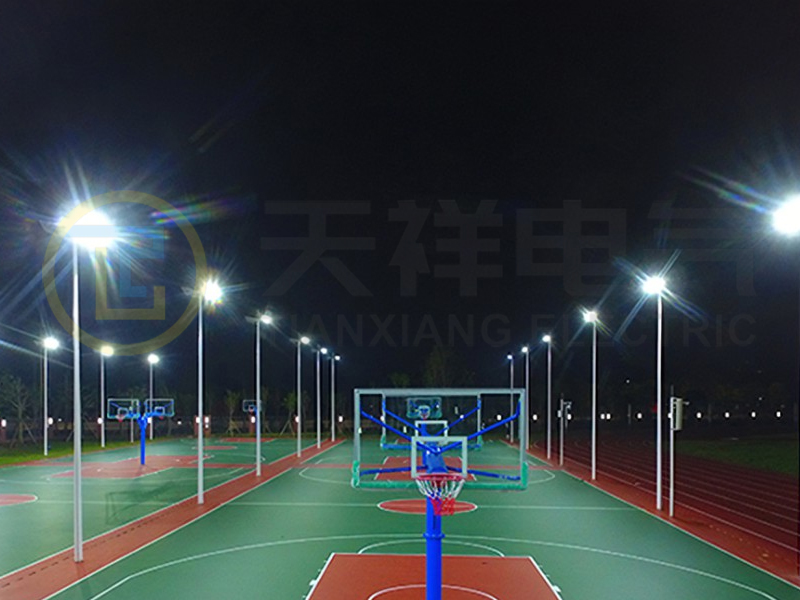

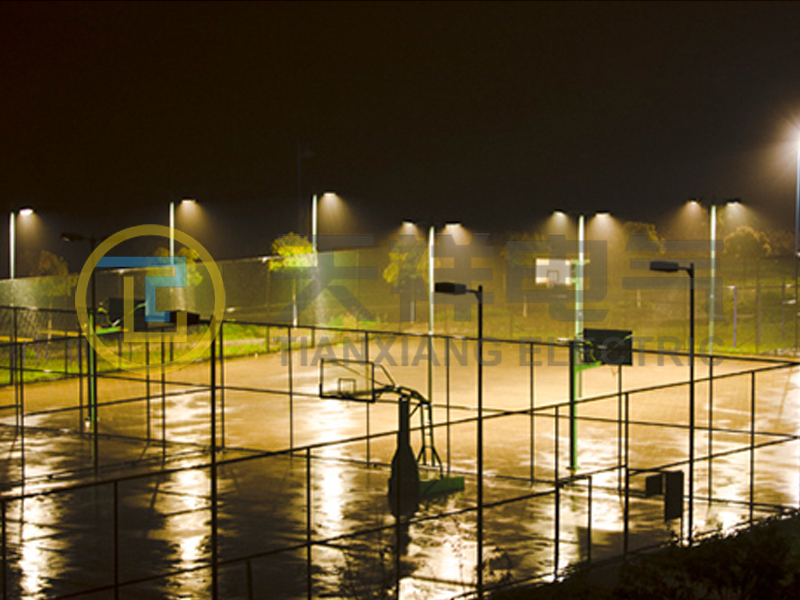

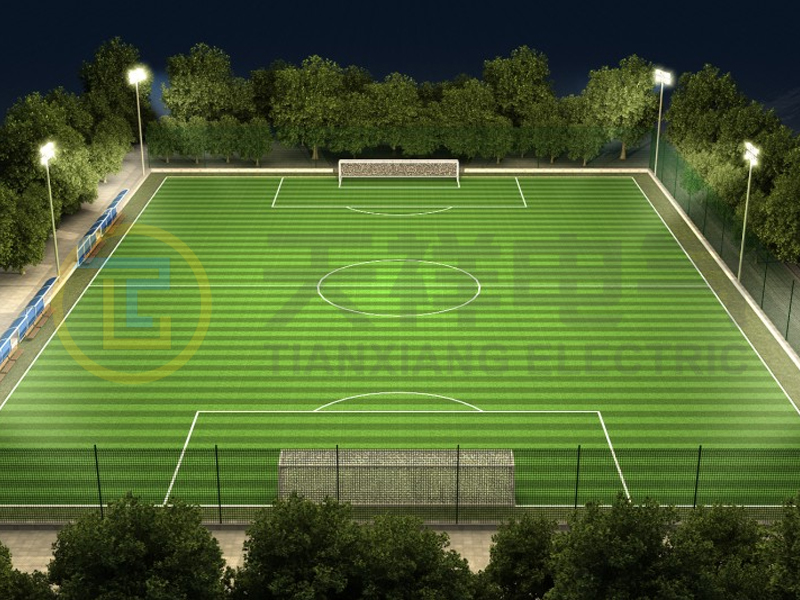

Widely used in urban roads, stadiums, squares, parking lots, industrial areas and other places to improve safety and visibility at night.
4. Structural Design:
The design of high mast lights usually takes into account factors such as wind force and earthquake resistance to ensure stability and safety under severe weather conditions.
5. Intelligent:
With the development of science and technology, many high mast lights have begun to be equipped with intelligent control systems, which can realize functions such as remote monitoring, timer switching, and light sensing, improving the flexibility of use and energy-saving effects.
Material | Commonly:Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||
Height | 15M | 20M | 25M | 30M | 40M |
Dimensions (d/D) | 120mm/ 280mm | 220mm/ 460mm | 240mm/ 520mm | 300mm/ 600mm | 300mm/ 700mm |
Thickness | 5mm+6mm | 6mm+8mm | 6mm+8mm+10mm | 8mm+8mm+10mm | 6mm+8mm+10mm+12mm |
LED Power | 400W | 600W | 700W | 800W | 1000W |
Color | Customized | ||||
Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||
Shape Type | Conical pole, Octagonal pole | ||||
Stiffener | With big size to strength the pole to resist the wind | ||||
Powder coating | Thickness of powder coating>100um. Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). |
||||
Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | ||||
Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||

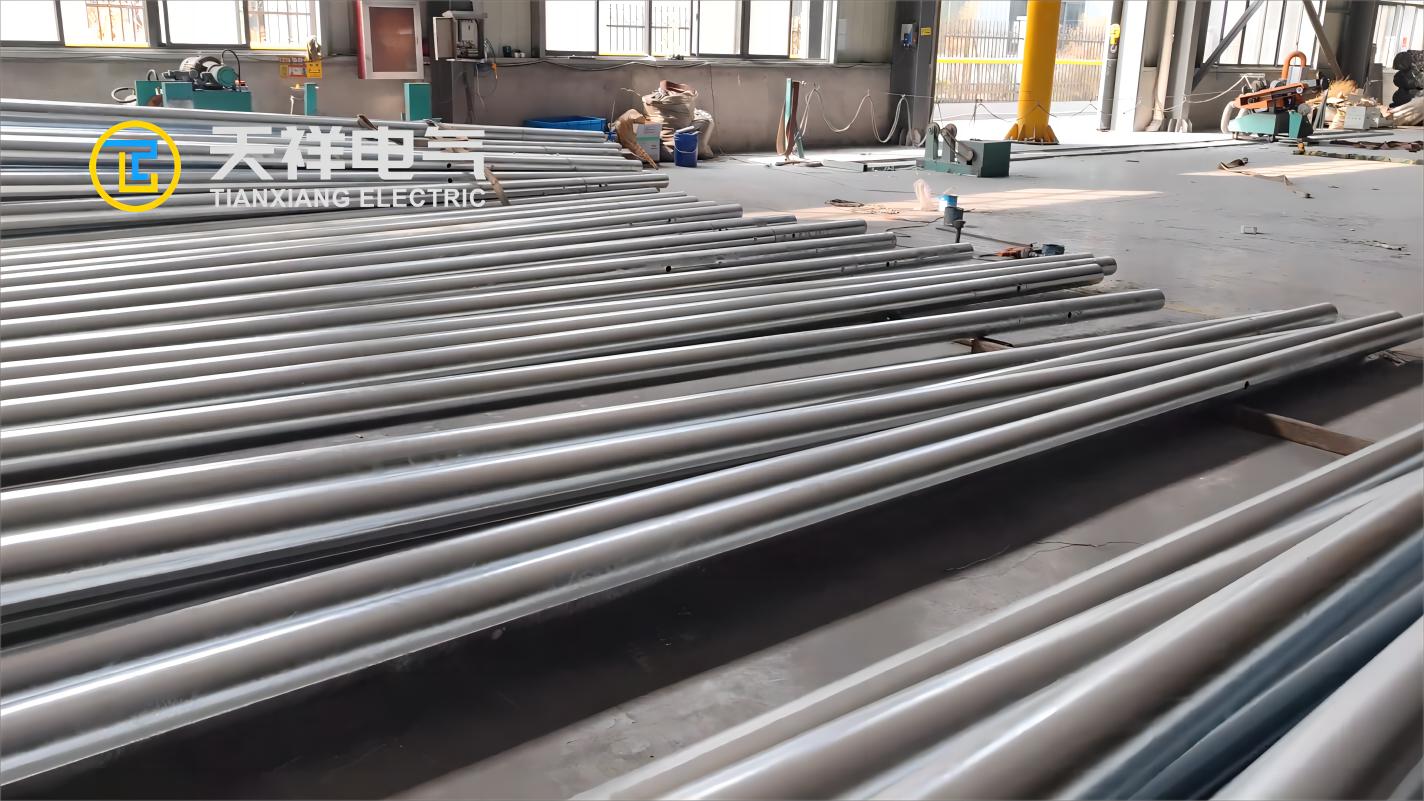

Hot-Dip Galvanized | Thickness of hot-galvanized>80um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. |
||||

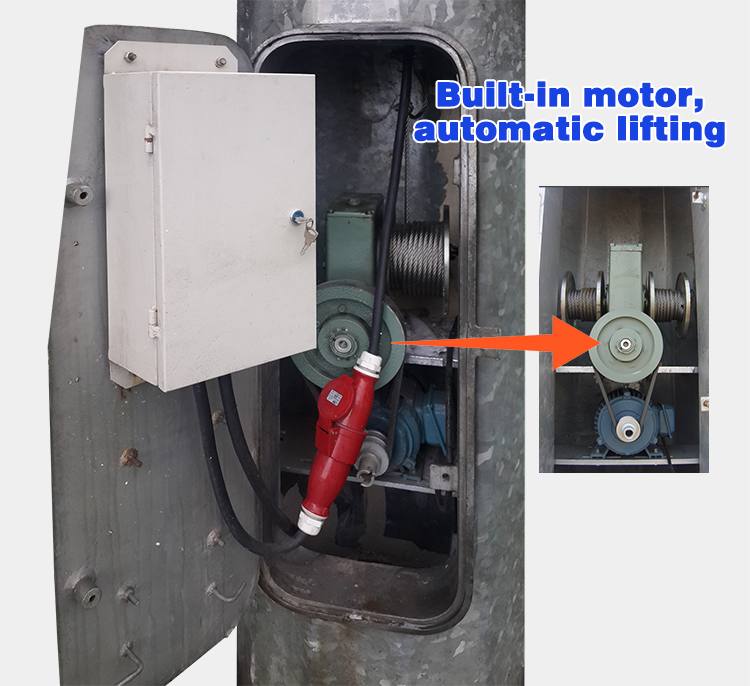

Lifting device | Ladder climbing or electric | ||||
Anchor bolts | Optional | ||||
Material | Aluminium,SS304 is available | ||||
Passivation | Available |
