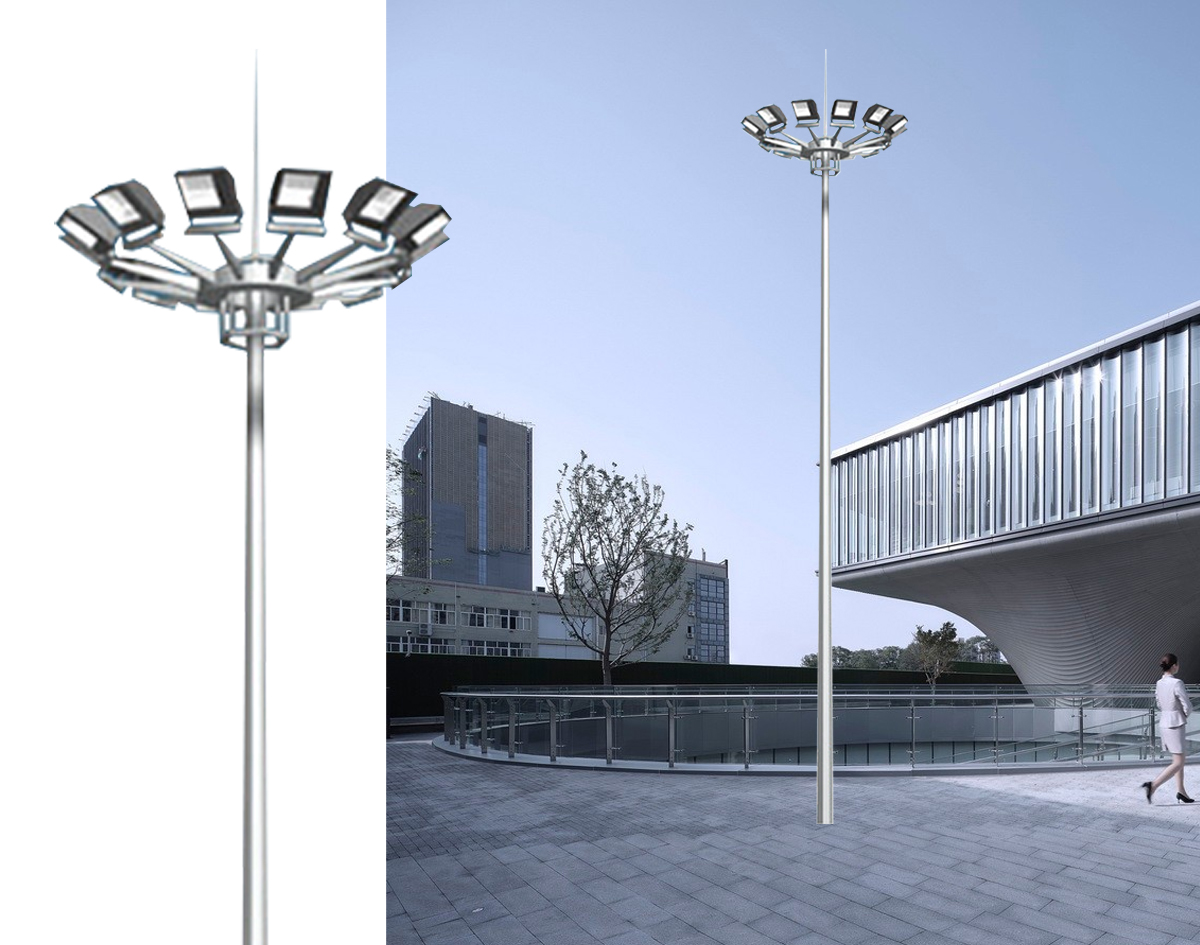

High Mast with Raising Lowering System
DOWNLOAD
RESOURCES
Product Features
1. Automatic lift high mast light poles are octagonal, twelve-edged, and eighteen-edged pyramid-shaped rods, which are formed by cutting, bending, and automatic welding of high-strength high-quality steel plates. The general heights are 2 5, 3 0, 3 5, 40 And other specifications, the design maximum wind resistance can reach 60 m/s, and each specification is composed of 3 to 4 joints. Equipped with a flanged steel chassis with a diameter of 1m to 1.2m and a thickness of 30mm to 40mm.
2. Functionality is mainly based on frame structure, and some are mainly decorative. Materials are mainly steel pipes and steel pipes. Light poles and lamp panels are treated with hot-dip galvanizing.
3. The electric lifting system is composed of electric motor, hoist, three sets of hot-dip galvanized control steel wire ropes and cables. The high mast light light pole is installed in the body, and the lifting speed is 3 to 5 meters per minute.
4. The guide and unloading system is composed of guide wheels and guide arms to ensure that the lamp panel will not move laterally during the lifting process, and when the lamp panel is raised to the right position, the lamp panel can be automatically dropped and locked by the hook.
5. The lighting electrical system is equipped with 6-24 400w-1000w floodlights and floodlights. The remote control can control the time of switching lights and partial lighting or full lighting.

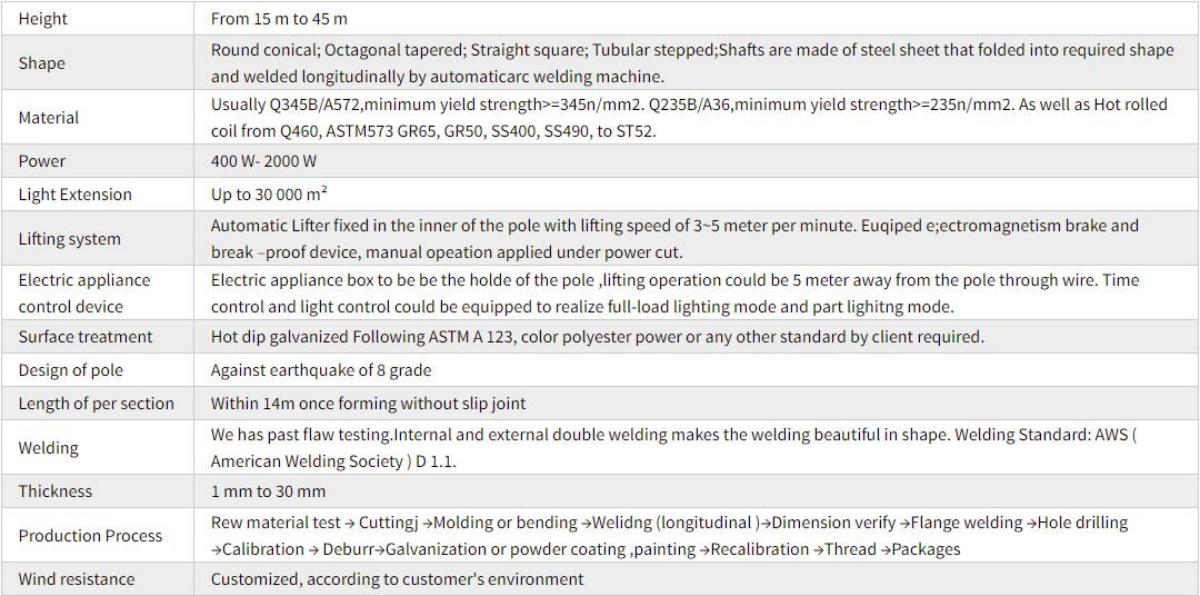

Technical Data

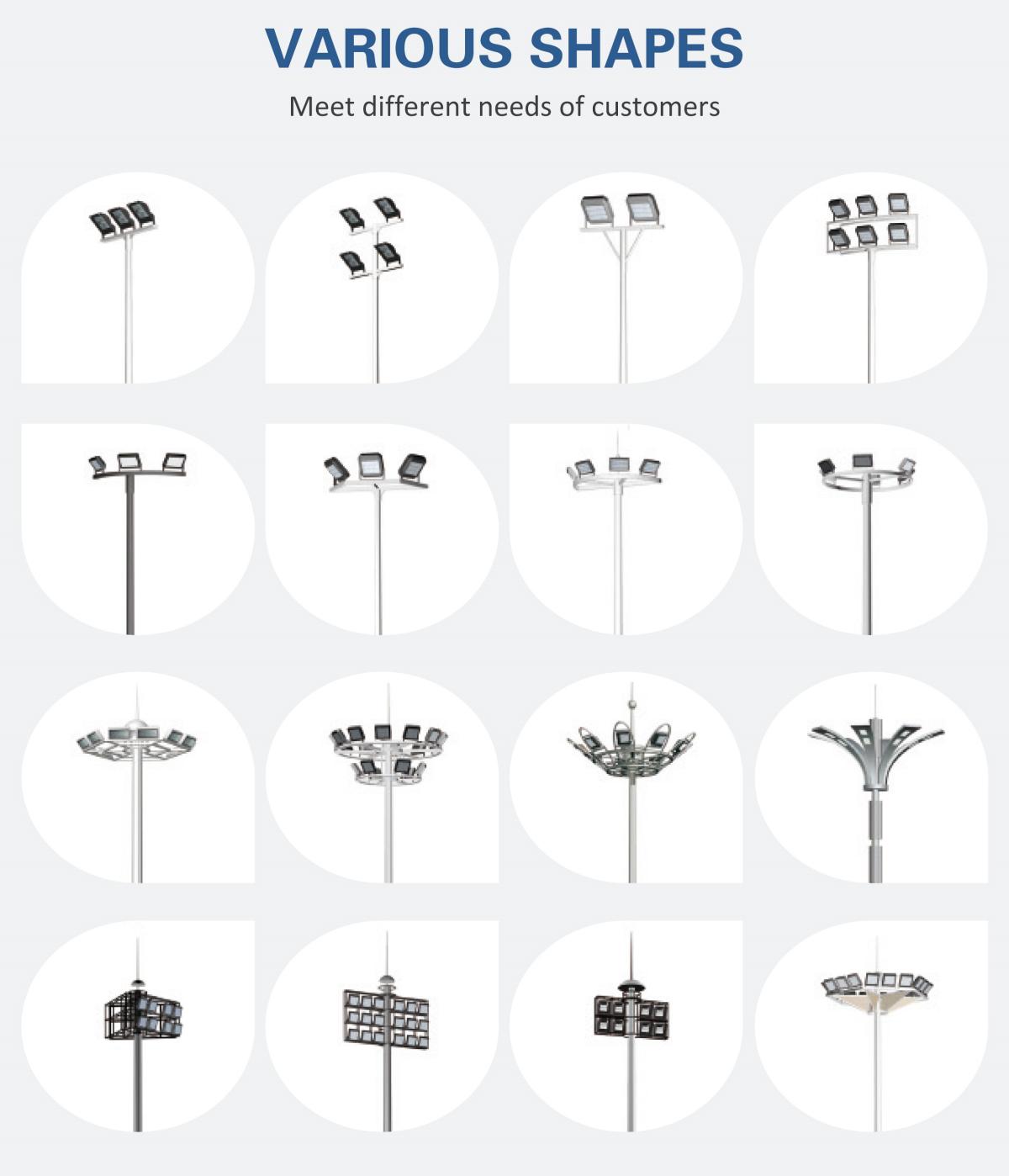

Shapes

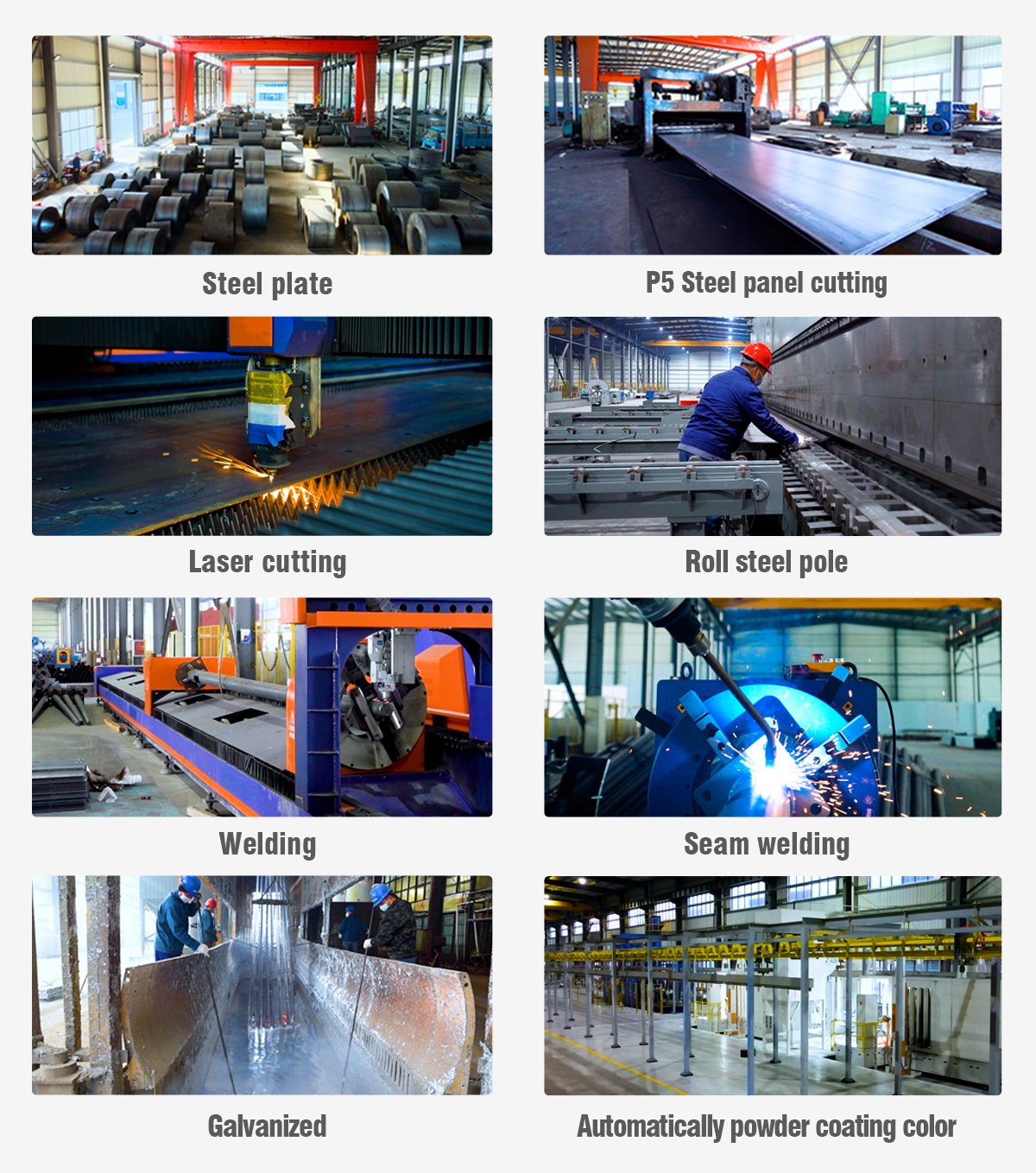

Manufacturing Process

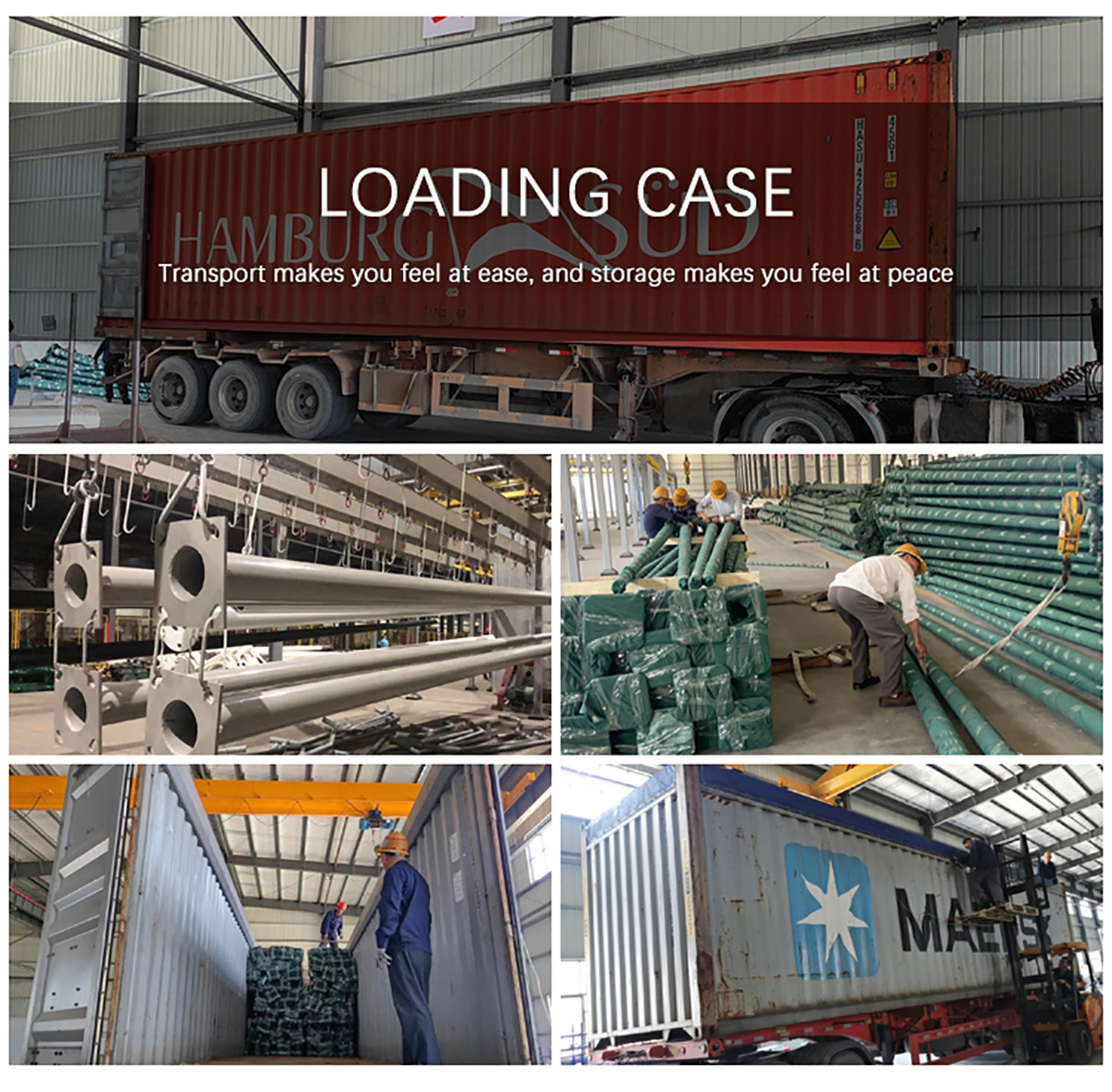

Packaging & Loading
Installation Precautions
1. First connect the hoist of the hoisting system to the main oil wire and fix it in place, and then send the main oil wire into the second and third pipes in sequence.
2. Plug in, level the bottom section with bricks or wood, insert the second section and the third section into each other with a crane, pull out the main oil wire at the uppermost section for about 1 meter, and connect the three auxiliary oil wires through the oil wire connecting plate Connect, then pull the main oil wire from top to bottom to a position about 50 cm from the top of the oil wire connection plate, and then put on the rainproof cap.
3. For the vertical pole, connect the three auxiliary oil wires with the flange of the lower joint, use the power of the hoist to tighten the three joints as much as possible, and then prepare a lifting belt with a length of about 20 meters, (the bearing weight is 4 tons Left and right), fixed with the flange motor door, and then hoisted by the crane as a whole.
4. In order to avoid damage to the lamps during hoisting, it is recommended to connect the split lamp panel with the main body of the lamp pole before installing the lamps.
5. Debugging, parking lot high pole lights, after the lamp panel is installed, connect the three auxiliary oil wires to the lamp panel, then start the hoist to raise the lamp panel, test whether the detachment of the hook is smooth, connect the power supply, and the installation is complete.
Application Place
1. Apron area
Apron high mast lights are an important part of the entire apron lighting system, which is related to the normal arrival and departure of flights, and even the safety of passengers; at the same time, a reasonable lighting solution solves the problem of over-brightness, over-exposure, and uneven illumination , high energy consumption and other undesirable phenomena.
2. Stadiums and squares
High mast light installed outside the stadiums and living squares of key sports games is a practical and cost-effective lighting product. Not only is the lighting function powerful, but it can also beautify the environment as a lighting decoration, so that life can be guaranteed when traveling at night.
3. Large intersections, elevated bridge junctions, beaches, docks, etc.
High mast light installed at large intersections has a simple structure, a large lighting area, good lighting effects, uniform lighting, low glare, easy control and maintenance, and safe travel.
FAQ
1. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
2. Q: What's your shipping way?
A: By air or sea ship are available.
3. Q: Do you have solutions?
A: Yes.
We offer a full range of value-added services, including design, engineering, and logistics support. With our comprehensive range of solutions, we can help you streamline your supply chain and reduce costs, while also delivering the products you need on-time and on-budget.
-
