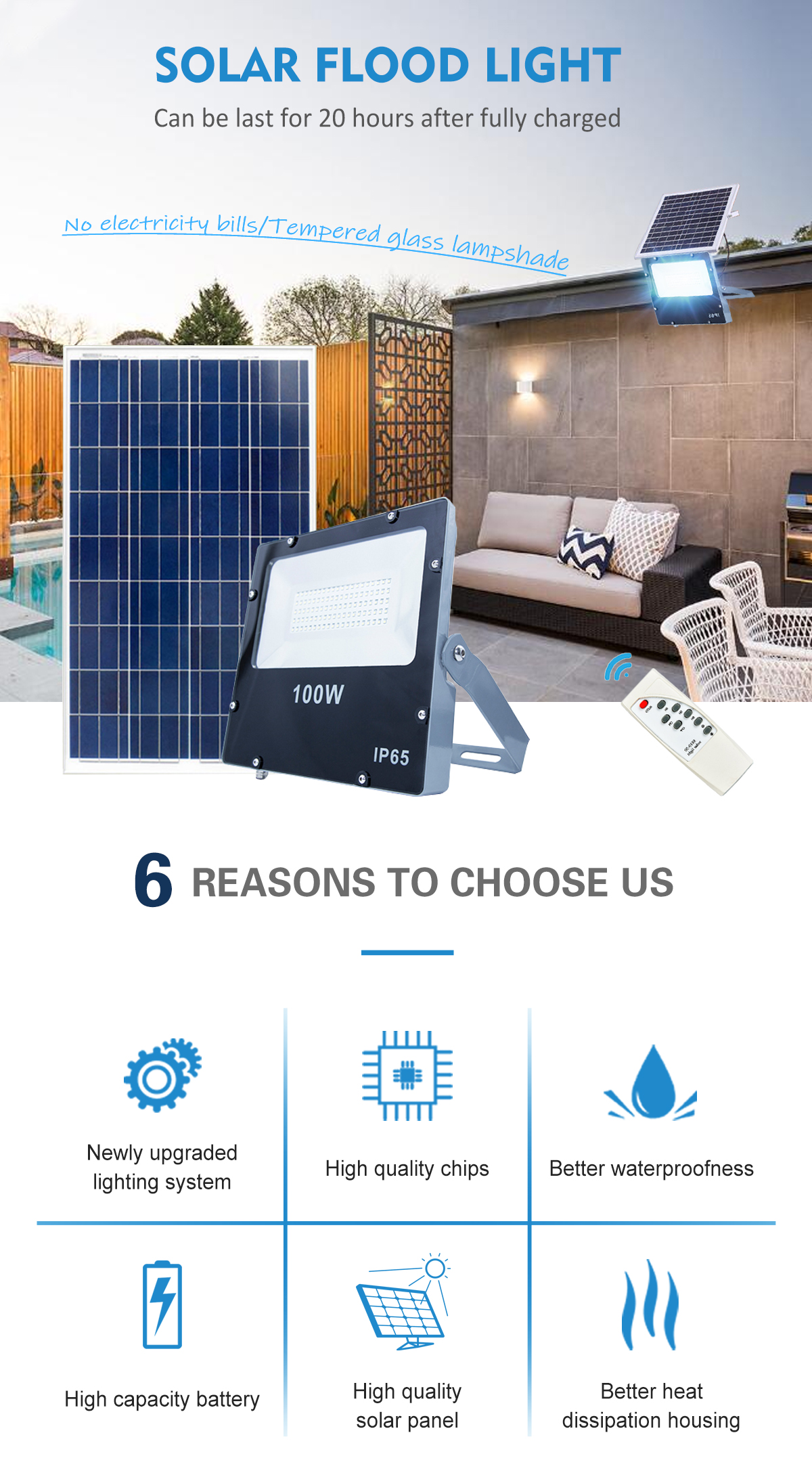

Model | TXSFL-25W | TXSFL-40W | TXSFL-60W | TXSFL-100W |
Application Place | Highway/Community/Villa/Square/Park and etc. | |||
Power | 25W | 40W | 60W | 100W |
Luminous Flux | 2500LM | 4000LM | 6000LM | 10000LM |
Light Effect | 100LM/W | |||
Charging time | 4-5H | |||
Lighting time | Full power can be illuminated for more than 24 hours | |||
Lighting Area | 50m² | 80m² | 160m² | 180m² |
Sensing Range | 180° 5-8 meters | |||
Solar Panel | 6V/10W POLy | 6V/15W POLy | 6V/25W POLy | 6V/25W POLy |
Battery Capacity | 3.2V/6500mA lithium iron phosphate battery |
3.2V/13000mA lithium iron phosphate battery |
3.2V/26000mA lithium iron phosphate battery |
3.2V/32500mA lithium iron phosphate battery |
Chip | SMD5730 40PCS | SMD5730 80PCS | SMD5730 121PCS | SMD5730 180PCS |
Color temperature | 3000-6500K | |||
Material | Die-cast aluminum | |||
Beam Angle | 120° | |||
Waterproof | IP66 | |||
Product Features | Infrared remote control board + light control | |||
Color Rendering Index | >80 | |||
Operating temperature | -20 to 50 ℃ |
1. Choose the perfect location: Choose a location with at least 6-8 hours of direct sunlight per day. This will ensure maximum charging efficiency.
2. Install the solar panel: When starting the installation, install the solar panel firmly in the location that receives the most sunlight. Use the provided screws or brackets for a secure connection.
3. Connect the solar panel to the 100w solar flood light: Once the solar panel is securely in place, connect the provided cable to the floodlight unit. Make sure the connections are tight to avoid any power interruption.
4. Positioning of the 100w solar flood light: Determine the area that needs to be illuminated, and fix the floodlight firmly with screws or brackets. Adjust the angle to get the desired lighting direction.
5. Test the Lamp: Before fully fixing the lamp, please make sure to turn on the lamp to test its function. If it won't turn on, make sure the battery is fully charged, or try repositioning the solar panel for better sunlight exposure.
6. Secure all connections: Once you are satisfied with the light's performance, secure all connections and tighten any loose screws to ensure durability and longevity.
Motorways, inter-urban main roads, boulevards and avenues, roundabouts, pedestrian crossings, Residential streets, side streets, squares, parks, cycle and pedestrian paths, playgrounds, Parking areas, industrial areas, petrol stations, rail yards, airports, harbors.
